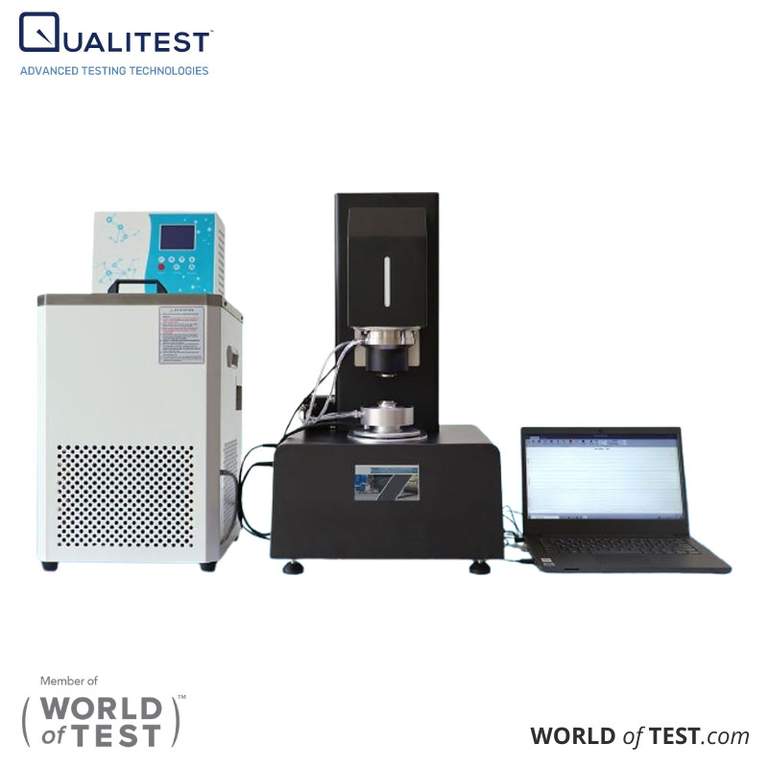

To verify if your asphalt binder will hold up during extreme summer heatwaves or freezing winter nights, our Dynamic Shear Rheometer offers the ultimate diagnostic solution. The QualiDSR™ takes the place of slow, multi-step testing procedures by applying a highly precise, back-and-forth rotational twisting force directly to your material sample.
This process accurately captures how the viscous asphalt binder resists rotational shear, immediately highlighting whether the sample behaves more like a springy solid or a slow, runny liquid. By putting this specific procedure to work, quality control managers can easily prevent pavement failure from deep wheel ruts and widespread fatigue cracking, playing strictly by the rules of core industry standards like AASHTO T315 and ASTM P246.
Theoretical Foundations: Viscoelastic Properties and Material Stiffness
Interest builds on how this theoretical model actually evaluates material performance. The QualiDSR™ system calculates the precise balance between elastic and viscous behavior by tracking two vital metrics:
- Dynamic Shear Modulus (G*): This represents the total resistance of the sample to shear deformation, showing how tough the pavement remains under heavy traffic loads.
- Phase Angle (δ): This defines the exact ratio between the elastic, recoverable behavior of the sample and its viscous, non-recoverable flow at any given testing temperature.
To guarantee highly reliable data, tests run strictly within the safe boundaries of the linear viscoelastic region to avoid permanent structural damage. The integrated DSREN V2.9.3 software then uses advanced time-temperature superposition math to transform these oscillatory tests into smooth, continuous master curves that represent decades of real-world road behavior.
Methodological Configuration and Hardware Specifications
Desire comes from the sheer precision of the testing method itself. During a standard run, a thin specimen is positioned between an oscillating top plate and a stationary lower plate, controlled effortlessly by a fast-responding Peltier thermal unit from 41°F to 185°F (5°C to 85°C).
- Standard Geometries: The system configuration includes 25 mm parallel plates for elevated temperature testing and 8 mm plates for intermediate, aged samples.
- Extreme Gap Control: The slightest gap variation can cause a massive drop in stiffness readings, but this system solves that issue with a high-precision grating that maintains a 0.1 µm gap resolution.
- High-Precision Sensing and Drive Mechanisms: A top-tier optical encoder with a 10-4 rad resolution ensures measurements are exceptionally accurate, while an ultra-low inertia servo motor with a hollow cup design provides smooth, continuous torque from 0.001 to 150 mNm.
To initiate a test, the operator trims excess binder using the provided sample trimming scraper to ensure flawless boundary conditions. For laboratories seeking to maximize testing efficiency while maintaining absolute data credibility, adopting this Dynamic Shear Rheometer setup is the most practical step to upgrade your daily testing output. Contact our application specialists today to implement the QualiDSR™ in your quality control workflow.
