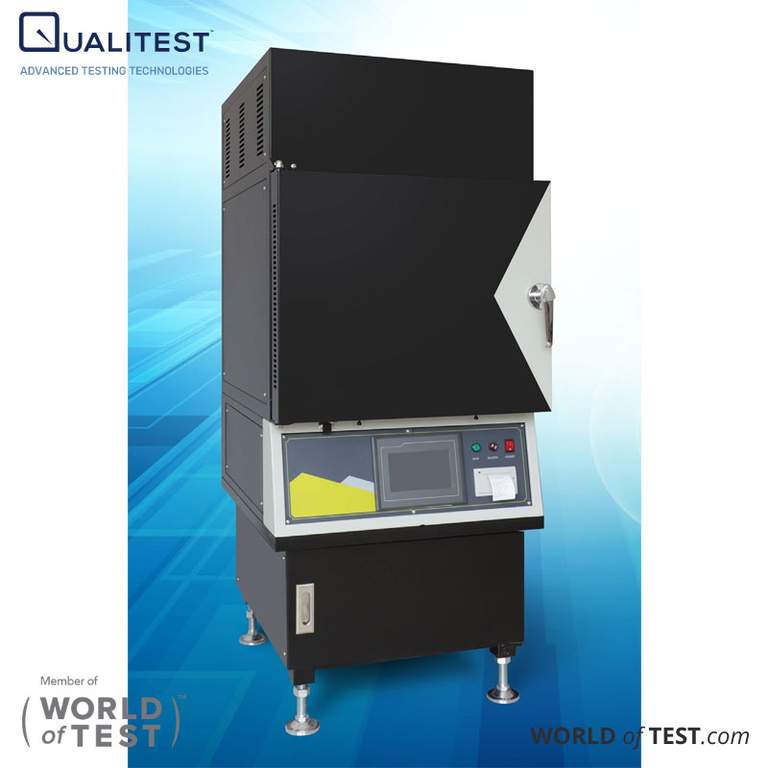

Determining binder content with the QualiACIO™ Asphalt Content Ignition Oven relies on a completely straightforward thermal combustion principle. Instead of utilizing hazardous liquid solvents, this microcontroller-based testing system simply burns away the sticky asphalt tar through extreme heat, leaving behind clean, test-ready gravel for your final sieve calculations.
Operational Method & Thermal Combustion Procedure
So, how does this testing method work in daily practice?
High-Temperature Furnace Chamber
You place your pavement material into the generously sized 350×440×330 mm heating chamber and let the built-in heat generators push the internal climate to a highly intense 538 to 593 °C (1000 to 1100 °F). If your local testing guidelines demand a hotter thermal baseline, the QualiACIO™ can comfortably push all the way up to an astonishing 800 °C.
Continuous Mass Tracking System
You simply set your preferred test parameters by tapping the highly responsive touchscreen controller, and the system keeps the fire burning until the weight scales stop moving, specifically when the mass drop is less than a tiny 0.01% for three consecutive minutes. An internal, heavy-duty electronic balance (which boasts a hefty 10kg capacity and an ultra-sensitive 0.1g division value) tracks the sample weight non-stop.
Microcontroller Integration & Automated Outputs
Once the combustion finishes, the highly intelligent microcontroller instantly crunches the numbers, comparing the initial mass to the final baked mass, and produces your final binder percentage right there on the automatic, built-in printer.
Industry Standard Compliance
This entire procedure complies directly with the parameters laid out in AASHTO T308-99 and ASTM D6307-98. Furthermore, the system features perfectly exact alignment between the thermal furnace and the electronic balance, ensuring your sample stays perfectly centered to guarantee a whisker-thin test accuracy of 0.1%.
Establishing Correction Factors for Mineral Mass Loss
Now, here is a critical detail: you must establish a correction offset. Because fierce chamber temperatures can occasionally burn off a tiny fraction of your mineral aggregate along with the asphalt binder, the raw data requires a slight mathematical adjustment.
The Necessity of Correction Factors
- Compensating for Aggregate Mass Loss: You must input a specific calibration key into the touchscreen for your particular rock-and-oven combination to compensate for this unavoidable mineral loss.
- Accounting for Mineral Variability: This adjustment value changes significantly based on the stones in your mix. These easily fractured stone types tend to lose physical mass when exposed to extreme heat.
- Optimizing Temperatures for High-Loss Aggregates: If the method calls for testing these specific, delicate mixtures, you can command the QualiACIO™ to lower the chamber temperature to 427 °C. Dropping the heat protects the physical structure of the stones, ensuring your post-test sieve analysis remains absolutely trustworthy.
- Avoiding Shared Calibration Errors: Avoiding the temptation to share correction factors between different ovens or separate mixes is an absolute necessity. Running a quick calibration sample beforehand keeps your touchscreen-calculated results completely, undeniably accurate!
Sample Configuration and Exhaust Management
To prevent fragile mineral aggregates from breaking down into fine dust under the intense heat, the operational method includes a few incredibly practical physical adjustments.
- Sample Configuration and Loading: Lowering the starting temperature slightly and placing your 1000 to 1500-gram material load (though this high-capacity workhorse easily swallows up to 4000 grams in a single run!) solely on the bottom basket to distribute the weight works wonderfully well.
- Exhaust and Fume Management: As the asphalt burns, the system must safely process the resulting emissions. The QualiACIO™ features an integrated fume assembly area directly above the furnace chamber. This setup mixes hot exhaust fumes with cool room air before venting them through the flue using a heavy-duty fan, keeping your laboratory air completely clean and comfortable throughout the test.
