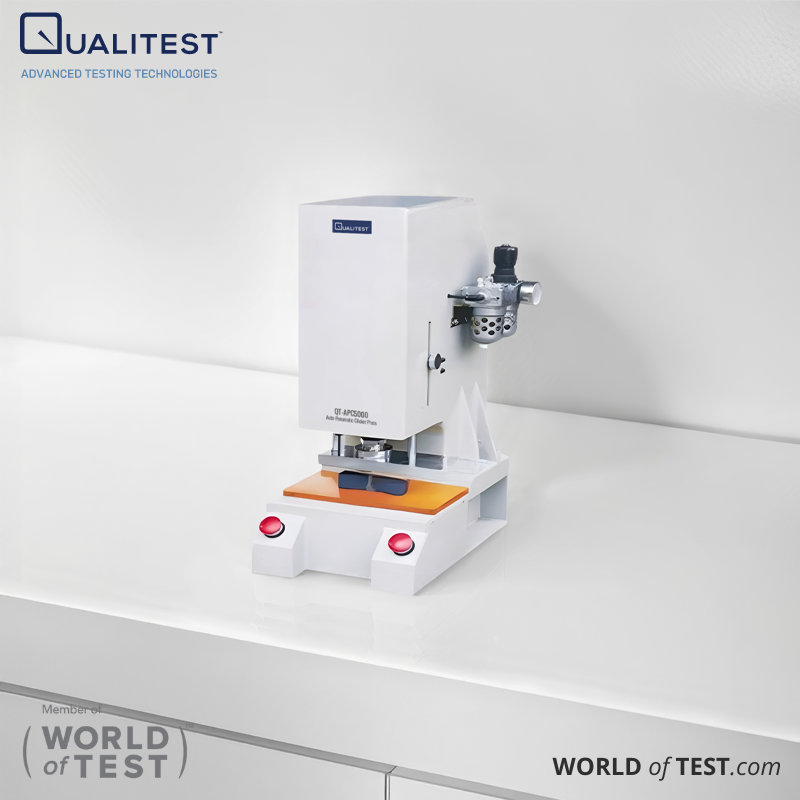

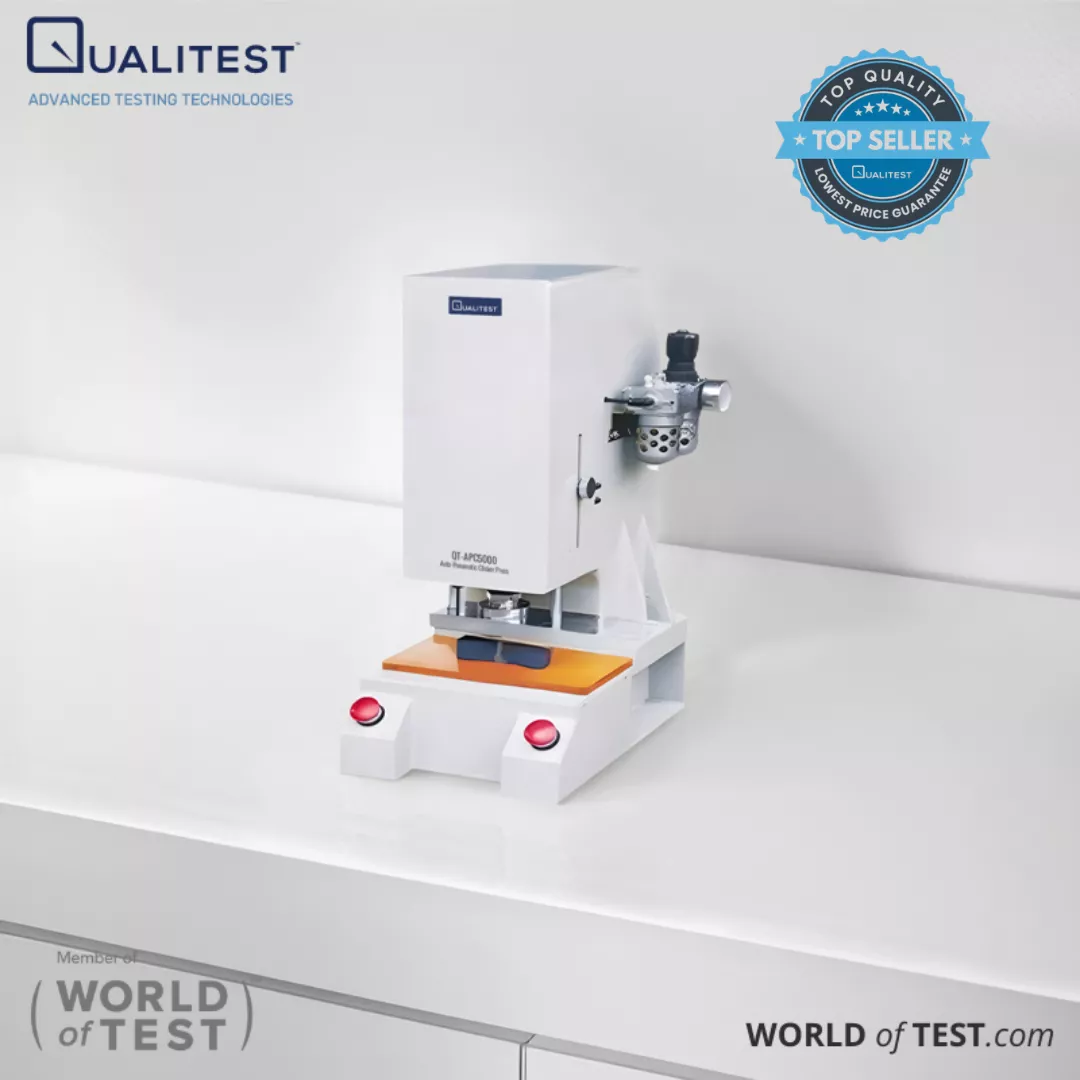

This low-cost and high quality Pneumatic clicker press only requires air with min. 73 psi (5 bar) pressure to operate and is widely used in the rubber and plastics industry for accurately cutting rubber, plastics, and leather specimens. The Auto-Pneumatic clicker press is available in 3 or 5 ton capacities suitable to cut rubber samples with thickness up to 10 or 15mm respectively. This compact, cost effective and high quality sample cutting press can be used for any testing laboratory.
- Excellent Quality-Performance/Price Ratio
- Simple operation
- Features safety buttons
- Only requires 5 bars of air pressure for operation
Specifications of Auto-Pneumatic Clicker Press:
| APC-3000 | APC-5000 |
| Size: 18" x 12" x 26” | Size: 18" x 16" x 35” |
| Cutting pressure: 3 Tons | Cutting pressure: 5 Tons |
| Weight: 60 kg | Weight: 120 kg |
| Power: Pneumatic | Power: Pneumatic |
| Air requirement: 5 Kg/cm2 (prepared by customer) | Air requirement: 5 Kg/cm2 (prepared by customer) |
| Thickness of Specimen (Max.): 10mm | Thickness of Specimen (Max.): 15mm |
| Effective space (WxDxH): 18 x 8 x 8 cm | Effective space (WxDxH): 40 x 34 x 8.5 cm |
