QualiPharma™ AS 2014 (Advanced) Dissolution Auto Sampler
A dissolution auto sampler eliminates the manual timing errors, inconsistent withdrawal volumes, and cross-contamination risks that compromise drug release data in pharmaceutical QC laboratories. The QualiPharma™ AS 2014 (Advanced) automates the full sampling sequence, from sample withdrawal through dilution and pipeline cleaning, so analysts can run multi-timepoint dissolution tests without touching a syringe or stopwatch.
This 14-channel automated dissolution sampling system pairs directly with dissolution testers to handle sample withdrawal, filtration, dilution, medium replenishment, and line cleaning in a single integrated workflow. It uses a precision syringe pump as its core metering device, which delivers pulsation-free liquid handling with a sampling accuracy of 0.8% or better at 10 mL. For laboratories running batch dissolution tests under USP <711> or Chinese Pharmacopoeia (ChP) protocols, the AS 2014 replaces manual pipetting with a repeatable, audit-ready process.
How the QualiPharma™ AS 2014 Dissolution Auto Sampler Works
The AS 2014 automates dissolution sampling by using a motorized syringe pump to withdraw, meter, and deliver precise aliquots from each dissolution vessel at programmed time intervals. The syringe creates a controlled negative pressure that draws dissolution medium through PTFE tubing, then reverses to dispense the sample into a collection tube or dilution vessel. This bidirectional syringe action also powers the rinsing and backfilling steps that prevent sample carryover between timepoints.
The Syringe-Pump Metering Principle
At the center of the system sits a high-precision syringe pump driven by a stepper motor. The stepper motor advances in discrete, repeatable increments, which gives the syringe plunger fine volumetric control. When the controller signals a sampling event, the pump draws the plunger back by a calibrated distance, creating suction that pulls a defined volume of dissolution medium from the vessel through the sampling cannula and PTFE transfer line. The controller then directs a valve to route the captured aliquot into the correct collection position.
Because the stepper motor controls plunger displacement directly, the volume dispensed depends on mechanical position rather than flow-rate timing. This approach delivers an automatic dilution accuracy of ±1% and keeps sample volumes consistent across all 14 channels, even when solvent viscosity or temperature varies between vessels.
The Sampling Sequence Step by Step
Each programmed timepoint triggers a multi-step sequence that the system executes automatically:
- Rinsing: the syringe pump flushes the transfer line with clean solvent to remove residue from any previous draw, preventing cross-contamination.
- Filling: the pump withdraws a precise volume (0.1 to 10 mL in single mode, 0.2 to 20 mL in double mode) from the dissolution vessel at the pharmacopeial sampling position.
- Waste dripping: a brief pause allows any droplet clinging to the cannula tip to fall, avoiding carryover into the next step.

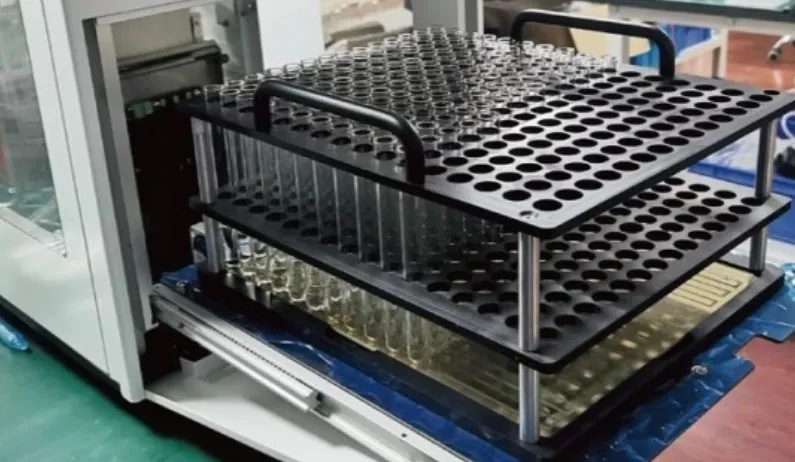

- Dispensing: the pump pushes the aliquot into a test-tube rack position that corresponds to the vessel and timepoint.
- Backfilling and replenishment: the system draws fresh, temperature-controlled medium and returns it to the vessel, maintaining the total dissolution volume that USP <711> and ChP protocols require.
- Emptying and cleaning: after the final timepoint, a one-click cleaning cycle flushes the entire liquid tank and all pipelines with solvent to prepare the system for the next batch.
Intelligent Height Calculation
Pharmacopeial standards specify that sample withdrawal must occur from a zone midway between the surface of the dissolution medium and the top of the stirring element. The AS 2014 calculates the correct cannula depth automatically based on the programmed solvent volume for each vessel. As the dissolution medium volume changes through sampling and replenishment, the system adjusts the sampling height to stay within the required zone. This removes a common source of manual error where an operator misjudges the correct withdrawal depth, which can skew drug release profile data.
PTFE Fluid Path and Sample Integrity

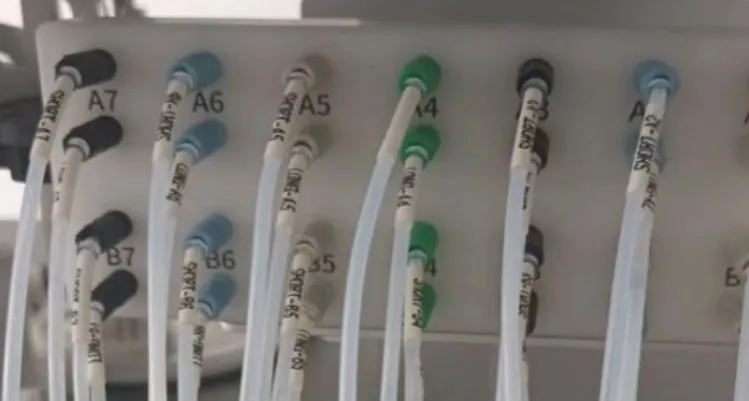

All wetted surfaces in the transfer path use PTFE (polytetrafluoroethylene) micro-transparent tubing. PTFE is chemically inert and exhibits very low adsorption, which means active pharmaceutical ingredients (APIs) in solution do not bind to the tubing walls during transit. Low adsorption matters most at early sampling timepoints or when testing low-dose formulations, where even small API losses to tubing surfaces can produce artificially low dissolution results. The transparent construction also lets operators visually confirm that lines are clear and free of trapped air bubbles before a test run.
Dissolution Challenges the AS 2014 Addresses
Beyond the application list in the existing description, the AS 2014 solves specific workflow pain points that manual or semi-automated sampling cannot address efficiently:
- Sustained-release multi-timepoint runs. Extended-release formulations require sampling at 8, 12, or more timepoints over 12 to 24 hours. Manual sampling across overnight runs introduces fatigue-related timing errors. The AS 2014 executes every withdrawal at the programmed second, maintaining data reproducibility across the full dissolution profile.
- High-throughput QC batch release. Laboratories testing dozens of batches per week need fast turnaround between runs. The automatic pipeline cleaning cycle eliminates manual scrubbing of tubing and valves, cutting changeover time and reducing the risk of residual API affecting the next batch.
- Low-dose formulation testing. When the API concentration in the dissolution medium is low (microgram-per-milliliter range), sample integrity depends on minimizing adsorption losses. The PTFE fluid path and precision syringe metering protect analyte recovery where it matters most.
- Method transfer and validation. Automated sampling produces tighter relative standard deviation (RSD) values than manual withdrawal, which simplifies method validation when transferring dissolution methods between sites or from R&D to QC.
How to Specify a Dissolution Auto Sampler for Your Laboratory
Selecting the right dissolution auto sampler requires matching the system to your vessel count, method complexity, and regulatory environment. Consider these factors when evaluating the AS 2014 or similar systems:
- Vessel count and channel compatibility. Confirm the auto sampler's channel count covers your dissolution tester configuration. The AS 2014's 14 channels accommodate up to 14 vessels. If your laboratory runs 6-vessel baths, the extra channels provide room for future scale-up.
- Volume range and dosage form. Check that the single-draw volume range (0.1 to 10 mL on this model) covers the aliquot sizes your methods specify. Sustained-release methods sometimes require larger draws; the double-sampling mode extends the range to 20 mL.
- Dilution requirements. If your analytical finish (UV-Vis or HPLC) requires online dilution, verify that the auto sampler supports automated dilution with the accuracy your method demands. The AS 2014 delivers ±1% dilution accuracy.
- Sampling interval versus dissolution profile. Map your fastest required timepoint spacing against the system's minimum sampling interval. For immediate-release products with steep early curves, a 1 minute 20 second initial interval may be a constraint worth evaluating.
- Communication protocol. Ensure the auto sampler's control interface (RS 485 on this model) integrates with your dissolution tester and data system. Seamless communication enables synchronized test starts, coordinated temperature logging, and consolidated audit trails for regulatory submissions.
- Regulatory standards. Confirm compliance with the pharmacopeial sampling position requirements in USP <711>, ChP, or your applicable pharmacopoeia. The intelligent height calculation on the AS 2014 automates this compliance step.
Frequently Asked Questions
What Does a Dissolution Auto Sampler Do?
A dissolution auto sampler withdraws precise aliquots of dissolution medium from test vessels at programmed time intervals, then delivers them to collection tubes or analytical instruments. It automates the rinsing, sampling, dilution, replenishment, and cleaning steps that an analyst would otherwise perform manually, which improves timing accuracy and data reproducibility across multi-timepoint dissolution tests.
How Does the AS 2014 Prevent Cross-Contamination Between Samples?
The system prevents cross-contamination through a three-stage cleaning approach. Before each withdrawal, the syringe pump flushes the transfer line with clean solvent to clear residual API. After dispensing, a waste-drip step removes any liquid clinging to the cannula tip. After the final timepoint, a full pipeline and tank cleaning cycle prepares the system for the next batch without manual intervention.
Can the AS 2014 Work with Different Dissolution Tester Brands?
The AS 2014 communicates through an RS 485 serial interface, which is a standard industrial communication protocol. It pairs with dissolution testers that support RS 485 connectivity. Confirm compatibility with your specific dissolution bath model before purchasing, as connector pinouts and communication protocols can vary between manufacturers.
What Is Intelligent Sampling Height Calculation?
Pharmacopeial standards such as USP <711> require sample withdrawal from a specific zone within the dissolution vessel, typically midway between the medium surface and the top of the stirring element. The AS 2014 calculates the correct cannula depth based on the programmed solvent volume for each vessel and adjusts automatically as the medium level changes through sampling and replenishment cycles.
Why Does the AS 2014 Use PTFE Tubing Instead of Other Materials?
PTFE (polytetrafluoroethylene) offers high chemical inertness and very low surface adsorption. In dissolution sampling, low adsorption ensures that dissolved API does not bind to tubing walls during transit, which would produce artificially low concentration readings. This matters especially for low-dose formulations and early timepoints where API concentrations in the dissolution medium are small. PTFE also resists corrosion from acidic or alkaline dissolution media.
How Many Timepoints Can the AS 2014 Collect in a Single Run?
The system supports 1 to 32 sampling events per channel in single mode and 1 to 16 in double mode. Combined with 14 channels, this allows hundreds of individual samples per run, which covers even the most demanding extended-release dissolution profiles with multiple timepoints over 24 hours.
