Blaine Apparatus Theory
Rather than relying on overly dense mathematical equations, the Blaine Apparatus serves as your highly practical Cement Air Permeability Tester. It operates by pulling a carefully regulated, steady flow of air directly through a firmly compacted powder sample to precisely calculate its total surface area. Across the entire QualiPerm™ Series, this standard laboratory method functions on a few fundamental, easily observable principles:
Microscopic Airflow Mechanics
The fundamental operating mechanism works by treating a densely packed specimen of dry cement as a consolidated material intersected with minute air pathways. When you pull a steady stream of air through your Cement Air Permeability Tester, the physical resistance encountered relates directly to the total surface area of those fine powder grains. This crucial metric ultimately dictates how quickly your concrete mixture cures and hardens.
Primary Operational Variables
If you maintain a completely constant testing chamber volume, air thickness, and vacuum pulling pressure, the measurement duration is determined by just two specific physical factors. These are the amount of empty, breathable space left within your compacted sample (the porosity, represented as ε) and the total surface area (S) of the powder.
Porosity Mathematical Corrections
Relying strictly on traditional, uncorrected equations makes your final data highly sensitive to how forcefully the operator packed the sample. To prevent inconsistent data readings, established laboratory protocols apply standardized mathematical corrections that effectively smooth out these physical differences. This guarantees your calculated surface area remains remarkably steady, whether the technician packed the sample slightly loosely or compressed it extra firmly.
Standardized Testing Method

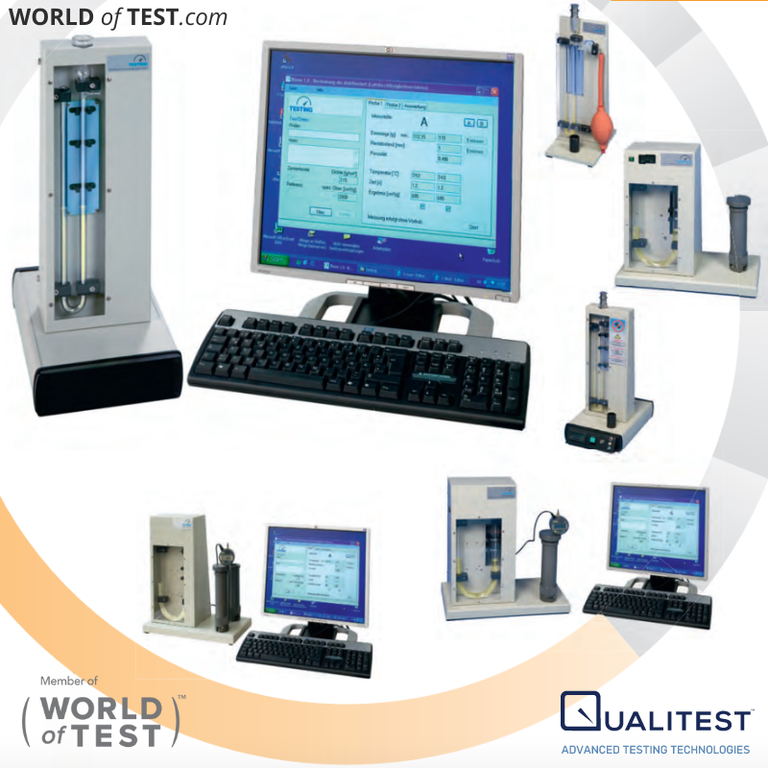

Whether your laboratory relies on the classic, hand-operated aspirator setup of the QualiPerm™ I or chooses the fully automated, computer-directed operation of the QualiPerm™ V, the essential physical steps for establishing your Blaine fineness values remain identical. This universally standardized workflow ensures your testing operation stays fully compliant with major international testing standards like ASTM C204, EN 196, DIN 1164, and BS 4550:
| Step | Theoretical Purpose |
|---|
| 1. Weigh sample & fill the cell | Standardizes the exact physical mass, total volume, and sample height within the Blaine Apparatus. |
| 2. Compact to target porosity (ε) | Controls the microscopic internal pathway structure to guarantee a completely fair, balanced test. |
| 3. Apply a defined vacuum draw | Generates a highly predictable pulling force utilizing a smooth, perfectly laminar airflow. |
| 4. Time the fluid movement (t) | Captures the absolute primary time measurement that your Cement Air Permeability Tester requires to function. |
| 5. Calculate specific surface (S) | Converts the raw recorded seconds and porosity values into a crystal clear, highly standardized area calculation. |
Calibration and Equipment Precision
Establishing the Calibration Constant
Accurate analysis of unknown cement samples requires a verified baseline. First, a certified, pre-measured reference powder is run through your Blaine Apparatus to lock in a permanent constant values multiplier. Once verified by the system, you easily compute the total surface area of any unknown cement batch based entirely on how long the air takes to pass through the packed bed.
Maximizing Laboratory Precision
The repeatability of your testing data relies heavily on the degree of manual operator input. With a basic, manually operated setup, your statistical variance might hover around 7%. By upgrading to semi-automatic models featuring internally built-in pumps and automatic optical time registration (like the QualiPerm™ II) or utilizing the fully metal-encased measuring cell of the QualiPerm™ III, you completely bypass human timing errors and consistently secure highly repeatable, rock-solid results.
Defining Surface Area Fineness
The calculated fineness value does not represent the true physical diameter of individual, isolated powder grains. Instead, it measures the collective surface area of grouped-together clusters and agglomerations. This yields highly practical, real-world values that predictably dictate field performance.
Applications and Laboratory Scaling
As an everyday, universally accepted necessity for dry powder verification, the Blaine Apparatus continuously delivers practical surface area metrics with minimal operating hassle.
- Predicting Hydration and Setting Times: The resulting calculation directly indicates exactly how quickly well cements will set and how much intense thermal energy they will release during the active hydration phase. This specific data allows concrete engineers to prevent unpredictable and costly curing delays on-site.
- Scaling for High-Volume Workflows: If your testing facility processes a large volume of daily samples, a single-cell unit may limit laboratory throughput. Upgrading to a high-capacity dual-cell system, such as the fully PC-controlled QualiPerm™ VI utilizing the Dyckerhoff Method, allows your technicians to properly prep one cell while the other cell is actively running a test. This configuration eliminates testing bottlenecks.
