Automatic Distillation Tester

Automatic Distillation Tester: Precision Atmospheric Distillation for Petroleum Laboratories

Fuel that falls outside its specified boiling range creates real operational problems, from cold-start failures in gasoline engines to incomplete combustion in diesel powertrains, coking in turbine blades, and regulatory non-compliance that can halt a shipment. An automatic distillation tester gives petroleum laboratories the ability to map a fuel's boiling range quickly, repeatably, and without operator-dependent variation, so quality teams catch volatility deviations before they reach the end user.

An automatic distillation tester is a laboratory instrument that performs batch atmospheric distillation of petroleum products and liquid fuels. It heats a measured sample in a round-bottom flask, condenses the rising vapor, and records the vapor temperature at each recovered volume increment to produce a distillation curve. The entire process follows the procedures defined in ASTM D86, ASTM D850, and ASTM D1078. Refineries, fuel blending terminals, petrochemical plants, and independent testing laboratories use this instrument to verify that fuels and solvents meet specification limits before release.

This page explains the scientific principle behind atmospheric distillation testing, the key components of a modern automatic distillation tester, and how to evaluate one for your laboratory.

How an Automatic Distillation Tester Works

An automatic distillation tester separates a liquid petroleum sample into its constituent boiling fractions by heating it at atmospheric pressure and recording the vapor temperature as each volume increment condenses and collects in a graduated receiver. The underlying phenomenon is simple fractional evaporation: lighter (lower-boiling) hydrocarbons vaporize first, followed progressively by heavier fractions, producing a temperature-versus-volume curve that characterizes the sample's volatility profile.

The Scientific Principle: Boiling-point Separation at Atmospheric Pressure

Every pure compound boils at a characteristic temperature when the vapor pressure of the liquid equals the ambient atmospheric pressure. Petroleum products are not pure compounds; they are complex mixtures of hundreds of hydrocarbon species, each with a different boiling point. When a laboratory heats such a mixture steadily, the components with the lowest boiling points vaporize first. As those light fractions leave the liquid phase, the remaining liquid becomes enriched in heavier components, and the vapor temperature rises. Plotting the observed vapor temperature against the percentage of sample recovered as condensate produces the distillation curve, a fingerprint of the sample's composition distribution across its boiling range.

This relationship between temperature and recovered volume is what makes the test useful: specific points on the curve correlate directly with real-world fuel behavior. The temperature at 10% recovery (T10) indicates cold-start and vapor-lock tendency, the temperature at 50% recovery (T50) reflects warm-up performance and acceleration response, and the temperature at 90% recovery (T90) relates to the completeness of combustion and the formation of deposits.

How the iIstrument Executes the Test

A modern automatic distillation tester automates the sequence that ASTM D86 prescribes:

1. Sample charging. The operator places a measured volume (typically 100 mL) of the test sample into a round-bottom distillation flask and positions a calibrated temperature sensor (usually a Class A Pt100 resistance thermometer) in the neck of the flask so its bulb sits at the vapor outlet.
2. Heating. A controlled electric heater applies heat to the flask. The system regulates heater power to maintain the prescribed distillation rate (typically 4 to 5 mL per minute for most fuel groups). Modern instruments use low-voltage, high-current heating elements for stable, responsive thermal control.
3. Vapor rise and condensation. As hydrocarbons boil off, the vapor travels up through the flask neck, through a connecting tube, and into a condenser tube immersed in a cooled bath. The condenser cools the vapor below its dew point, turning it back into liquid. Condenser bath temperatures are held between 0 °C and 60 °C depending on the product type.
4. Volume recovery measurement. The condensed liquid (distillate) drips into a graduated receiving cylinder housed in a temperature-controlled receiver chamber. A level-tracking system, typically driven by a precision stepper motor and an optical or laser sensor, continuously monitors the distillate volume and records it against the corresponding vapor temperature.
5. Data recording and curve generation. The embedded controller logs the vapor temperature at each prescribed volume increment (every 1 mL or at fixed percentage points) and plots the distillation curve in real time. Key parameters are captured automatically: the initial boiling point (IBP, the temperature at which the first drop of condensate falls), the temperatures at standard recovery percentages (T10, T50, T90), the final boiling point (FBP) or dry point, and the total recovered and residue volumes.
6. End-point detection and shutdown. The system detects the final boiling point or dry point by monitoring the rate of temperature change and the cessation of condensate flow. It then lowers the heater and initiates a cooling sequence.

Key Components and Their Roles

• Distillation flask: Holds the sample and shapes the vapor path. Flask geometry (100 mL or 200 mL, round-bottom) conforms to the standard.
• Vapor temperature sensor (Pt100): Measures vapor temperature at the flask neck. Class A accuracy (typically ±0.15 °C at 0 °C) ensures the recorded distillation curve is traceable.
• Electric heater: Supplies regulated heat. Low-voltage, high-current designs reduce thermal lag and extend element life.
• Condenser and cooling bath: Recondenses the vapor. A refrigeration unit or Peltier system holds the bath at the prescribed temperature.
• Receiver chamber: Houses the graduated cylinder at a controlled temperature (typically 0 °C to 60 °C) to prevent re-evaporation of collected distillate.
• Volume-tracking system: A stepper motor and optical sensor follow the liquid meniscus in the receiver to record the recovered volume with high accuracy.
• Barometric pressure sensor: Measures ambient atmospheric pressure so the controller can apply standard pressure corrections to the temperature readings, ensuring results are comparable across different altitudes and weather conditions.
• Fire detection and suppression system: An ultraviolet flame detector monitors the heater compartment. If it detects ignition of sample vapors, the system shuts down the heater and activates an extinguishing agent (typically CO2 or an inert gas), protecting personnel and the laboratory.
• Embedded controller and display: Manages the test sequence, stores results, and displays the live distillation curve.

Key Features and Technical Specifications

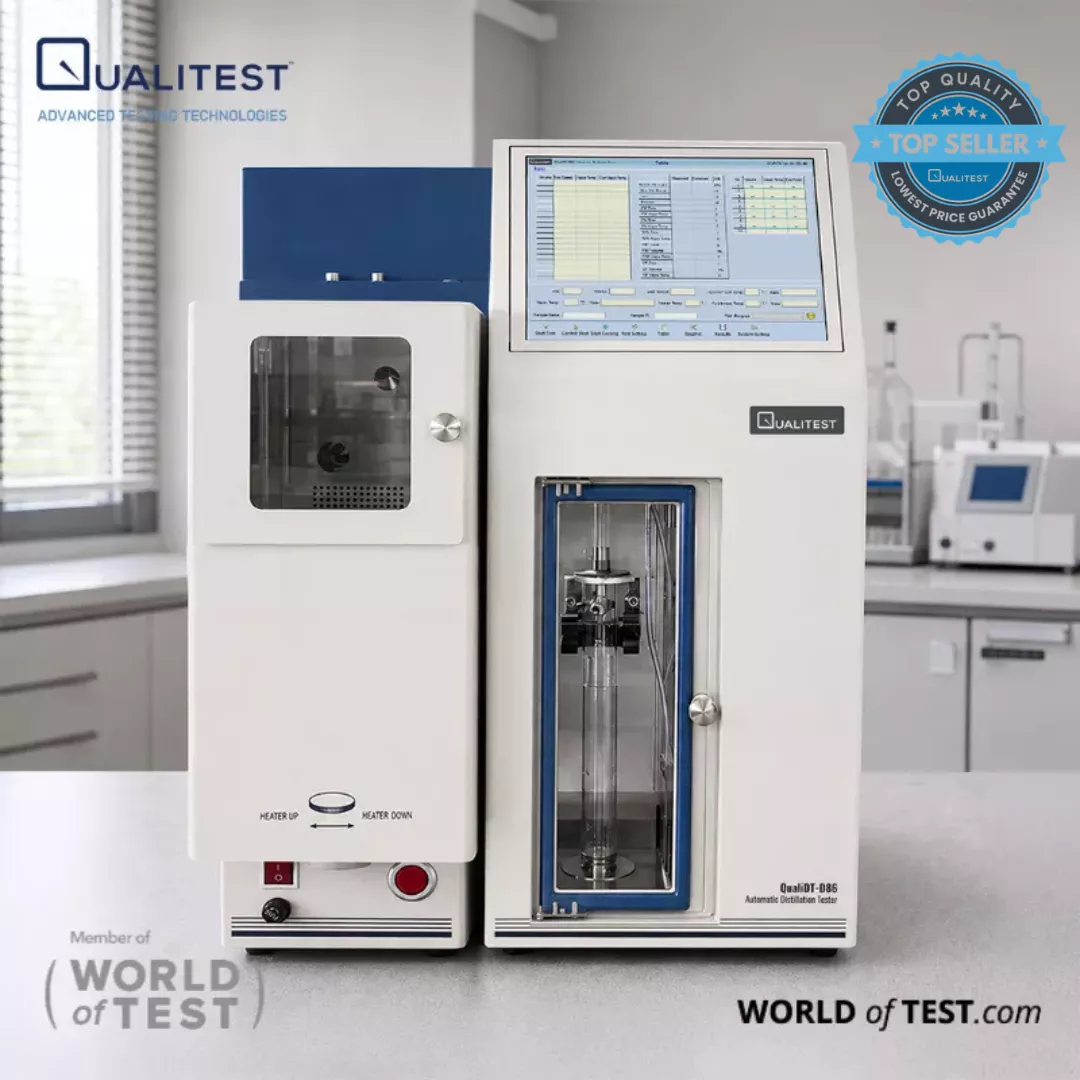

The specifications below describe the QualiDT D86 model. Each parameter addresses a specific laboratory requirement:

• Standards compliance (ASTM D86, D850, D1078): Covers atmospheric distillation of standard fuel groups (Group 1 through Group 4), aromatic hydrocarbons, and volatile solvent mixtures, so a single instrument handles the full range of common petroleum distillation tests.
• Cold bath temperature range: 0 °C to 60 °C, accuracy ±0.5 °C: Maintains condenser conditions for all product groups, from volatile gasolines that need near-freezing condensation to heavier cuts that tolerate warmer baths.
• Receiver chamber temperature range: 0 °C to 60 °C, accuracy ±1.0 °C: Prevents re-evaporation of collected distillate and keeps volume readings stable across different product types.
• Distillation heater power: 1,000 W at 24 V: The low-voltage, high-current configuration delivers fast thermal response while reducing the risk of electrical arcing near flammable vapors.
• System power consumption: 2,500 W: Accounts for the heater, refrigeration, controller, and display, suitable for standard laboratory power circuits.
• 12.1-inch touchscreen with embedded PC: Displays real-time vapor temperature, heater temperature, condenser temperature, receiver chamber temperature, and the live distillation curve on a single screen.
• Fully automated test execution: The system controls heating rate, tracks vapor temperature, detects volume recovery, identifies the initial and final boiling points, and shuts down at test completion without manual intervention.
• Flame detection and automatic fire suppression: Provides an active safety layer for testing volatile, flammable samples.
• Data correction, storage, and printing: Applies barometric corrections, stores test results for comparison across runs, and outputs reports for documentation and compliance audits.
• Dimensions: 500 x 530 x 680 mm: Compact enough for a standard laboratory bench while accommodating the flask, condenser, receiver, and cooling system in an integrated enclosure.

Applications and Industries

Refinery Process Control and Product Certification

Refineries test every distillate stream, from light naphtha to heavy gas oil, to verify that the cut points and boiling ranges meet product specifications before the product enters storage or pipeline transfer. An automatic distillation tester delivers the distillation curve data that quality control teams need to adjust column operating parameters and certify finished products.

Fuel Blending Terminals

Blending terminals combine base stocks and additives to produce finished gasoline, diesel, and jet fuel. Distillation testing confirms that the blend meets the target volatility window, including T10, T50, and T90 limits, before the batch is released for distribution.

Aviation Fuel Testing

Aviation turbine fuels must meet narrow distillation limits to ensure safe combustion at altitude. Laboratories at airports, fuel depots, and airline maintenance facilities use distillation testing to verify compliance with specifications such as ASTM D1655 (Jet A, Jet A-1) and DEF STAN 91-091.

Petrochemical and Solvent Laboratories

Chemical plants and solvent manufacturers test the boiling range of aromatic hydrocarbons, mineral spirits, and specialty solvents under ASTM D850 and ASTM D1078. These tests confirm product purity and fraction composition for downstream formulation.

Independent and Regulatory Testing Laboratories

Third-party laboratories run distillation tests for dispute resolution, environmental compliance, and certification of imported fuels. Automated operation reduces operator-to-operator variability, which strengthens the defensibility of reported results.

How to Select an Automatic Distillation Tester for Your Laboratory

Choosing the right instrument starts with understanding the range of products you test and the standards your laboratory must meet. Key selection criteria include:

• Standards coverage: Confirm that the instrument supports every ASTM, ISO, or IP method your laboratory needs. ASTM D86 covers the broadest range of petroleum distillates, while ASTM D850 and D1078 address aromatic hydrocarbons and volatile solvents respectively. If your testing scope may expand, select an instrument that handles multiple standard methods.
• Condenser and receiver temperature range: Volatile products like gasoline require condenser temperatures near 0 °C, while heavier distillates tolerate warmer settings. Verify that the instrument's cooling system reaches the temperatures your product mix demands and holds them within the tolerance the standard requires.
• Automation level: Fully automated instruments handle the entire test from heating initiation through end-point detection and data reporting. Semi-automated units may require manual start, end-point observation, or residue measurement. For high-throughput laboratories or environments where consistent results across shifts matter, full automation reduces variability and frees operator time.
• Volume-tracking accuracy: The precision of the distillate volume measurement directly affects the shape of the distillation curve. Optical or laser-based tracking systems with stepper-motor-driven receivers offer higher accuracy than manual observation.
• Safety systems: Any instrument that heats flammable petroleum products should include flame detection and automatic fire suppression. Verify the type of detection sensor (ultraviolet is common) and the suppression agent.
• Data management: Look for onboard storage, barometric pressure correction, result comparison across runs, and the ability to export or print reports. Laboratories operating under ISO 17025 accreditation need traceable, archived data.
• Footprint and utilities: Confirm that the instrument fits your bench space and that your electrical supply can handle the total power draw.

Frequently Asked Questions

What does an automatic distillation tester measure?

An automatic distillation tester measures the boiling range characteristics of a petroleum product or liquid fuel. It heats a sample at atmospheric pressure, records the vapor temperature at each volume of recovered condensate, and produces a distillation curve. Key outputs include the initial boiling point, final boiling point, and temperatures at standard recovery percentages such as T10, T50, and T90.

What is the difference between ASTM D86, ASTM D850, and ASTM D1078?

ASTM D86 covers atmospheric distillation of a broad range of petroleum products and liquid fuels, including gasoline, diesel, kerosene, and jet fuel. ASTM D850 applies specifically to aromatic hydrocarbons like benzene, toluene, and xylene, focusing on dry-point determination. ASTM D1078 addresses volatile solvents and narrow-boiling-range chemical intermediates. Many automatic distillation testers support all three methods on the same platform.

Why is the distillation curve important for fuel quality?

The distillation curve reveals how a fuel's hydrocarbon components distribute across the boiling range. Specific curve points predict real-world behavior: T10 relates to cold-start capability and vapor-lock risk in gasoline, T50 indicates warm-up and acceleration performance, and T90 correlates with combustion completeness and deposit formation. Refineries and blending operations use these values to verify specification compliance and optimize product formulation.

How does automation improve distillation test results?

Manual distillation testing depends on the operator to control heating rate, observe the thermometer, and record volume readings, all of which introduce variability. An automatic distillation tester regulates the heating rate by feedback control, reads the vapor temperature with a calibrated electronic sensor, and tracks volume recovery with an optical or laser system. This removes subjective judgment and produces tighter repeatability between test runs and between operators.

What maintenance does an automatic distillation tester require?

Routine maintenance typically includes cleaning or replacing distillation flasks and condenser tubes, verifying the calibration of the temperature sensor and the volume-tracking system, checking the refrigerant level in the cooling unit, and testing the fire-detection and suppression system. The frequency depends on test volume, but most laboratories perform sensor verification before each test series and a full calibration check at scheduled intervals per their quality management system.

Can an automatic distillation tester handle biofuel blends?

ASTM D86 explicitly covers biodiesel blends up to 30% by volume and ethanol-gasoline blends. The distillation behavior of these blends differs from neat petroleum products because oxygenates like ethanol introduce azeotropic effects that flatten portions of the curve. An instrument with accurate volume tracking and temperature resolution captures these plateaus correctly, which is critical for driveability index (DI) calculations.
