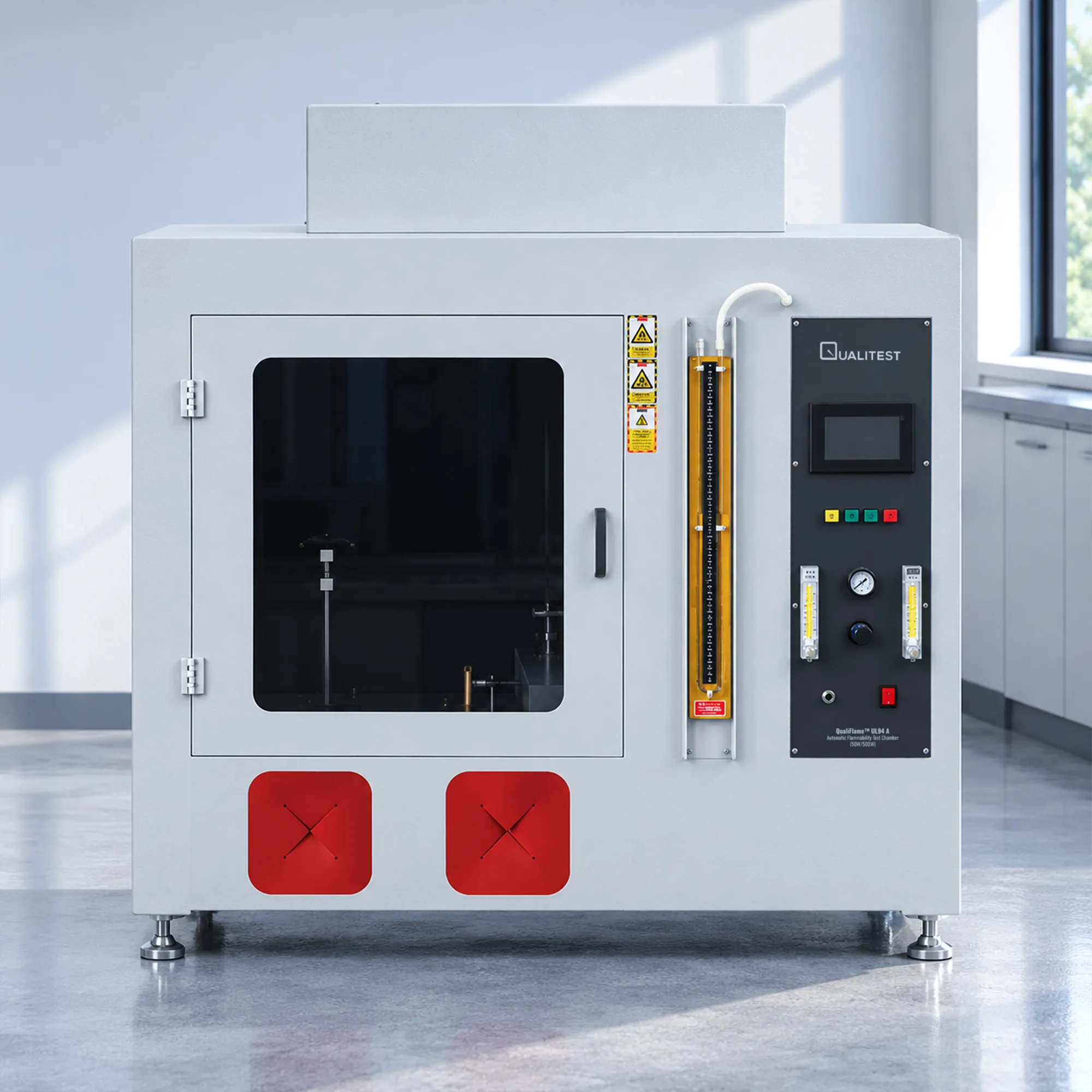

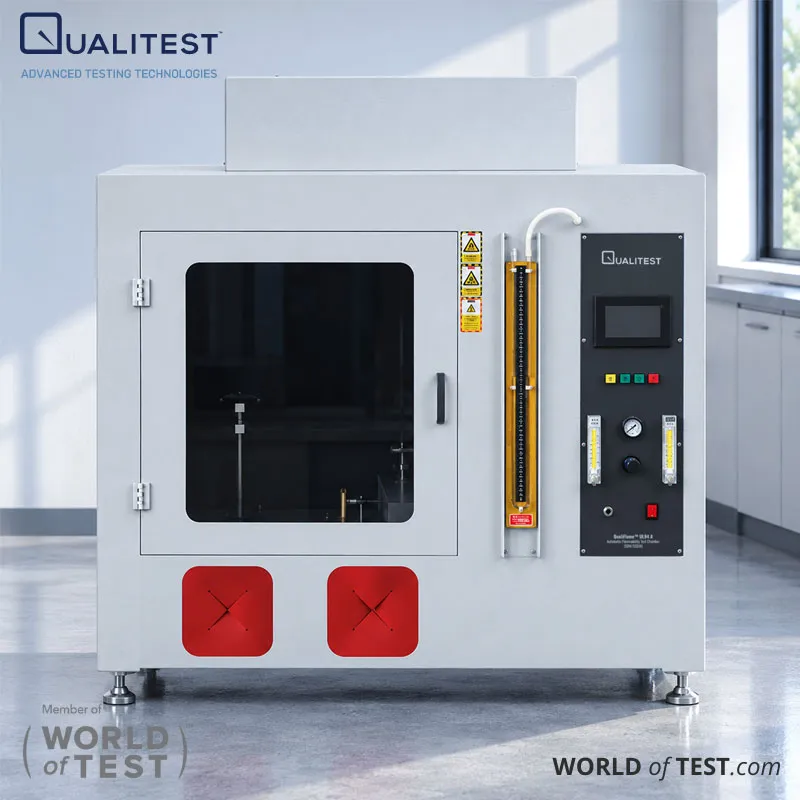

Automatic Flammability Test Chamber (50W/500W) - QualiFlame™ UL94 A

Automatic Horizontal and Vertical Burning Test Chamber for UL 94 Classification

The QualiFlame™ UL94 A automatic flammability test chamber performs horizontal and vertical burning tests on plastics, printed circuit boards, and finished electrical parts. A single instrument covers HB, V-0, V-1, V-2, 5VA, and 5VB classification work. Qualitest supplies it in 50 W and 500 W burner configurations. The stainless steel chamber shell and internal components resist smoke residue and corrosive combustion gases. PLC control with a touch interface manages ignition timing, flame application, and test sequencing.

Test and control sections share one integrated cabinet, which simplifies site installation and commissioning. The chamber exceeds 0.5 m³ and carries a black interior, so small flames and afterglow stay visible during observation. Operators set flame application time, afterflame timing, and burner position at the panel. The burner tilts to 0°, 20°, and 45° to cover the horizontal, vertical, and inclined specimen positions that the methods call for.

Flame calibration uses a drilled copper block and a 0.5 mm Type K thermocouple. The block heats through a defined temperature rise within a preset time, which confirms that the burner delivers correct thermal output before testing begins. Methane at 98% minimum purity feeds the burner, and the flow meter holds 965 ml/min for the 500 W flame or 105 ml/min for the 50 W flame. Both configurations use a 9.5 mm bore burner tube.

Automatic Flammability Test Chamber (50W/500W) - QualiFlame™ UL94 A Applications

The QualiFlame™ UL94 A supports material classification, component qualification, and incoming inspection wherever plastics sit near a potential ignition source.

  • Plastics and Polymer Compounding: assigns UL 94 ratings to resin grades during formulation work and flame-retardant package development
  • Printed Circuit Board and Laminate Production: verifies that substrate materials meet the V-0 rating that most electronics assemblies specify
  • Electrical Component Manufacturing: classifies connector bodies, terminal blocks, switch housings, and relay bases before agency submission
  • Household Appliance Production: qualifies enclosure and internal support plastics against the flammability requirements appliance safety standards reference
  • Wire and Cable Accessories: evaluates cable ties, glands, conduit, and junction box materials for burning behavior and dripping
  • Automotive and EV Components: tests battery pack housings, busbar supports, and charging connector materials that require 5VA or 5VB performance
  • Lighting and Luminaire Manufacturing: screens diffusers, driver housings, and lamp holder materials exposed to sustained operating heat
  • Incoming Material Inspection: confirms that supplied compounds and molded parts still meet the classification stated on the datasheet
  • Certification and Third-Party Laboratories: generates horizontal and vertical burning data for material approval and product listing files
Automatic Flammability Test Chamber (50W/500W)

Standards

The QualiFlame™ UL94 A is designed to align with the test flame specifications and the horizontal and vertical burning methods that govern plastics fire classification.

  • IEC 60695-11-3 - Fire Hazard Testing, Part 11-3: Test Flames, 500 W Flames, Apparatus and Confirmational Test Methods
  • IEC 60695-11-4 - Fire Hazard Testing, Part 11-4: Test Flames, 50 W Flame, Apparatus and Confirmational Test Method
  • IEC 60695-11-10 - Fire Hazard Testing, Part 11-10: Test Flames, 50 W Horizontal and Vertical Flame Test Methods
  • IEC 60695-11-20 - Fire Hazard Testing, Part 11-20: Test Flames, 500 W Flame Test Methods
  • UL 94 - Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances

Automatic Flammability Test Chamber (50W/500W) - QualiFlame™ UL94 A Key Features

The QualiFlame™ UL94 A combines automated flame sequencing with the calibration hardware that defensible classification data requires.

  • Dual 50 W and 500 W Burner Configurations: covers HB, V, and 5V classification work without moving specimens to a separate instrument
  • PLC Control with Touch Interface: runs flame application, dwell, and withdrawal timing automatically, so results reflect the material rather than operator reaction time
  • Adjustable Burner Angle: sets 0°, 20°, and 45° positions for horizontal, vertical, and inclined test geometries
  • Stainless Steel Chamber and Internal Components: withstand smoke deposits and corrosive combustion products across years of testing
  • Integrated Test and Control Cabinet: arrives as one unit, cutting site installation and commissioning time
  • Chamber Volume Above 0.5 m³ with Black Interior: gives the draught-free volume the methods specify while making faint flames and afterglow easy to see
  • Copper Block Flame Calibration Kit: verifies burner thermal output through the specified temperature rise, giving traceable evidence that the flame met specification
  • 0.5 mm Type K Thermocouple: responds quickly during calibration runs, keeping the timed temperature rise accurate
  • Precision Gas Flow Control: holds 965 ml/min or 105 ml/min depending on configuration, which is what fixes flame energy
  • Flame Height Indicator: confirms the 40 mm or 20 mm reference height at the burner before each test series
  • 9.5 mm Bore Burner Tube: matches the geometry the test flame standards define, so flame shape stays consistent
  • All-English Display with Language Customization: suits North American laboratories directly and adapts for other markets on request
  • Customizable Power Supply: accommodates local mains configurations outside the standard 220 V single-phase supply

Theory and Method

Flammability classification does not measure a single material property. It measures how a specimen of defined thickness behaves against a defined flame for a defined time, then ranks that behavior. The horizontal test lays the bar flat, applies the 50 W flame for 30 seconds, and times the flame front between two gauge marks to calculate a linear burning rate. A material that self-extinguishes before the first mark, or burns slower than the rate limit, earns an HB rating.

Vertical testing raises the severity because the flame front travels toward unburned material and preheats it. The specimen hangs above a cotton indicator layer, and the 50 W flame applies twice for 10 seconds each. Timers record afterflame duration following each application and afterglow after the second. V-0, V-1, and V-2 differ by those permitted times and by whether flaming drips ignite the cotton beneath. Dripping behavior separates otherwise similar materials.

The 500 W flame raises energy input by roughly an order of magnitude for 5VA and 5VB work. Five flame applications of five seconds each, spaced five seconds apart, expose bar and plaque specimens. Plaques reveal whether burn-through occurs, which is what distinguishes 5VA from 5VB. Copper block calibration underpins all of this: an uncalibrated flame invalidates the comparison, so each block heats through the specified temperature rise within the preset time before testing starts.

Automatic Flammability Test Chamber (50W/500W) - QualiFlame™ UL94 A Technical Specifications

Parameter500 W Configuration (5V Class)50 W Configuration (HB/V Class)
Test Flame500 W nominal50 W nominal
Classification Coverage5VA, 5VBHB, V-0, V-1, V-2
Burner Tube Internal DiameterØ9.5 mm ±0.3 mmØ9.5 mm ±0.3 mm
Burner Angle0°, 20°, 45°0°, 20°, 45°
ThermocoupleType K (Ni/Cr-Ni/Al)Type K (Ni/Cr-Ni/Al)
Thermocouple Size0.5 mm0.5 mm
Calibration Copper BlockØ9 mm ±0.01 mm, 10 g ±0.05 g before drillingØ5.5 mm ±0.01 mm, 1.76 g ±0.01 g before drilling
Temperature Rise Range100°C ±5°C to 700°C ±3°C100°C ±5°C to 700°C ±3°C
Temperature Rise Time54 s ±2 s (preset)44 s ±2 s (preset)
Gas Flow965 ±30 ml/min105 ±5 ml/min
Gas SupplyMethane, 98% minimum purityMethane, 98% minimum purity
Water Column125 mm ±5 mm<10 mm
Test Time54 s ±2 s44 s ±2 s
Flame Height Indicator40 mm ±1 mm20 mm ±1 mm
Chamber Volume>0.5 m³, black interior>0.5 m³, black interior
ControllerPLC with integrated touch interfacePLC with integrated touch interface
VoltageAC 220 V, 50 Hz to 60 Hz, 800 VA (110V is also available)AC 220 V, 50 Hz to 60 Hz, 800 VA (110V is also available)
Display Panel LanguageEnglish (other languages available on request)English (other languages available on request)
