The Pensky-Martens Closed Cup Method

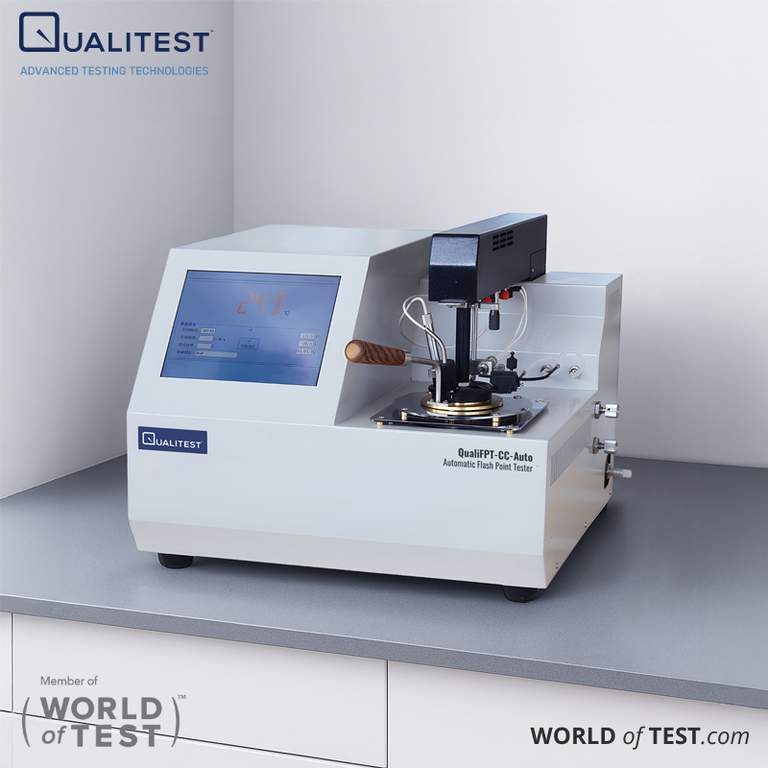

The QualiFPT™-CC-Auto Automatic Flash Point Tester flawlessly executes the exact science behind the Pensky-Martens Closed Cup method. This specific scientific procedure determines the exact temperature where liquid vapors ignite inside a sealed environment.
By strictly controlling the heat ramp and utilizing an internal stepper motor to keep the stirring rate completely uniform, the procedure eliminates temperature lag. A highly responsive micro thermocouple detector captures the exact millisecond of the flash, making the physical reaction incredibly predictable.
Here is how the automated testing process handles the physical chemistry:
The Closed-Lid Environment
You pour your liquid sample into a sealed brass cup. As the system warms the liquid, the integrated stepper motor continuously spins the paddle, keeping the fluid moving smoothly. This constant motion stops thermal gradients from forming, forcing the gaseous vapors to gather evenly inside the small air pocket at the top of the chamber.
The Ignition Point
The actual flash point is simply the lowest temperature (this model handles anywhere from 40 to 300°C) where a brief fire occurs when the shutter slides open. The machine introduces either an electronic or gas ignition source, and the micro thermocouple automatically registers the chemical reaction, completely removing visual guesswork.
Barometric Pressure Adjustments
Daily weather fluctuations heavily alter vapor pressure and throw your numbers off. The internal computer mathematically adjusts the results to standard atmospheric pressure (101.3 kPa), ensuring your data remains absolutely correct whether your laboratory sits at sea level or high altitude.
Methodology Standards and Crucial Variables
To ensure the testing data satisfies rigorous regulatory audits, this methodology executes standardized procedures like ASTM D93 (fully supporting Procedures A, B, and C), EN ISO 2719, and IP 34. The procedure demands a highly specific, steady heating crawl, which is why managing the following variables is absolutely critical:
- Pacing the Temperature: If you rush the heat application, the chemical data falls apart. For instance, heating raw sulfur too fast can drop its measured flash point from a warm 207°C all the way down to 167°C, which creates a massive error. The internal programming applies a rate of 5 to 6°C per minute for Method A, or a much slower 1 to 1.5°C per minute for Method B. Keeping the temperature climb strictly restrained ensures the liquid and the air above it stay perfectly matched.
- Continuous Agitation: Keeping the liquid moving actively stops localized hot spots from skewing the final readings. The precision stepper motor handles this effortlessly until the exact moment of the ignition trial.
- System Uncertainty: Minute errors originating from the heat sensors, pressure gauges, and rounding calculations easily add up. The Automatic Flash Point Tester factors all of these variables together through the 8-inch color LCD touchscreen, computing a highly reliable final number while handling the ignition trials and automatic cooling entirely on its own.
