Automatic Fluorine & Chlorine

Automatic Fluorine & Chlorine Analyzer
Parent Product
Elemental Analyzers
View PDF

Available Models:

  • Automatic Fluorine & Chlorine Analyzer - QualiEA™ AFCA3000
  • Automatic Fluorine Analyzer - QualiEA™ AFA3000
  • Automatic Chlorine Analyzer - QualiEA™ ACA3000

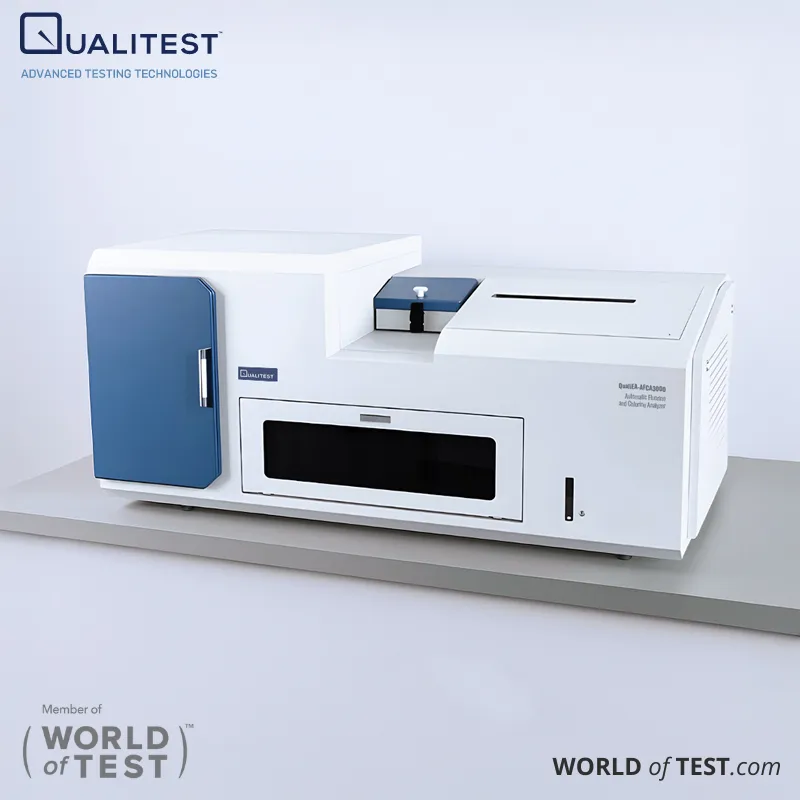

Automatic Fluorine & Chlorine Analyzer Overview

Automatic Fluorine & Chlorine Analyzer precisely measures fluorine and chlorine levels in coal and other combustible materials, ensuring accurate and reliable results for laboratory and industrial applications.

Dimensions: 1160mm x 550mm x 570mm
Weight: 75kg

Automatic Fluorine & Chlorine

Standards:

Here are the international equivalents:

  • ISO 587:1997 – Solid mineral fuels — Determination of chlorine using Eschka mixture (adapted for fluorine via ion-selective electrode or combustion methods)
  • ASTM D3761 – Standard test method for total fluorine in coal by the oxygen bomb combustion/ion selective electrode method
  • ISO 16967:2015 – Solid biofuels — Determination of major elements (covers F among others in combustion-based methods)
  • ISO 587:1997 – Solid mineral fuels — Determination of chlorine using Eschka mixture
  • ASTM D2361 – Standard test method for chlorine in coal (Eschka method)
  • ASTM D4208 – Standard test method for total chlorine in coal by the oxygen bomb combustion/ion chromatography method

Automatic Fluorine & Chlorine Analyzer Features

  • Sample introduction, analysis, calculation, and calibration are fully automated.
  • Fluorine and chlorine results can be obtained from a single sample test.
  • The built-in condenser eliminates the need for an external water source, conserving water.
  • A precise liquid collection and sampling system minimizes dead volume, ensuring accurate results.
  • Advanced liquid condensation and temperature control technology maintain consistent temperature during collection, reducing the effect of temperature fluctuations on test accuracy.

Automatic Fluorine & Chlorine Analyzer Technical Specifications

Measuring rangeFluorine: 50ppm ~20% Chlorine: 80ppm ~40%
Calibration of electrode parametersCalibration is carried out simultaneously with the decomposition of the first sample. No need to calibrate every day, calibration is needed only after long-time testing or the electrode is not used for a long time
Decomposition30min approximately
Titration5min approximately for fluorine; 5min approximately for chlorine
Sample weight0.5 gram
Temperature control precision1100±5℃
Max power4 kW
UncertaintyWithin uncertain region of standard sample
