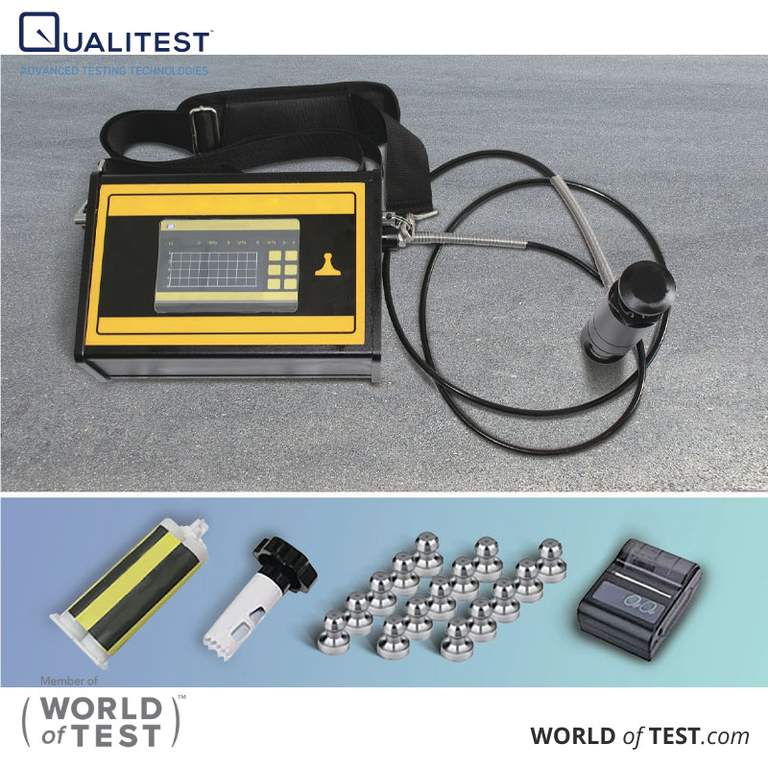

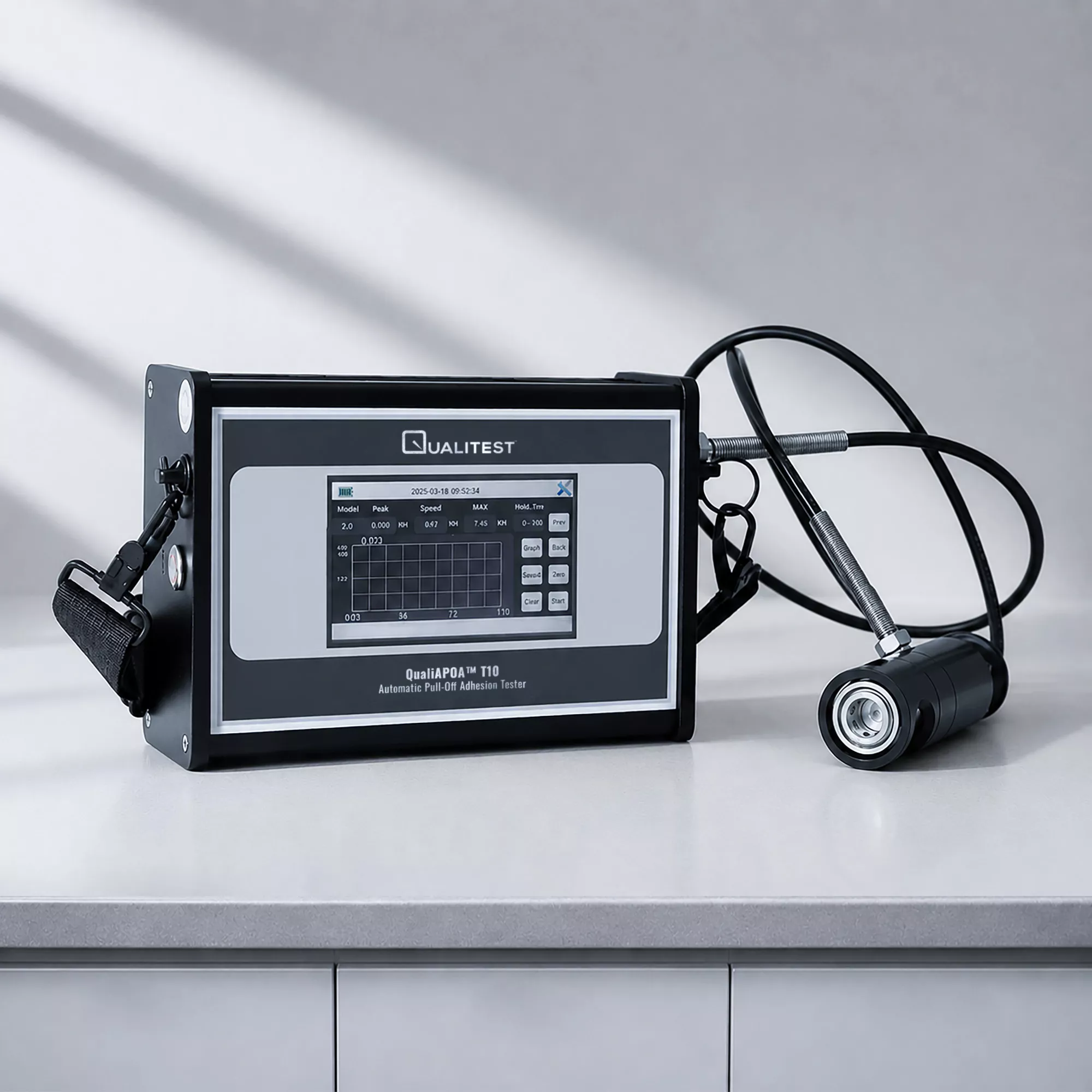

Automatic Pull-Off Adhesion Tester QualiAPOA-T10

Automatic Pull-Off Adhesion Tester QualiAPOA-T10 performs precise pull-off tests on coatings using hydraulic pressure. The process is fully automated, ensuring a stable and controlled pull-off speed, eliminating errors from manual pressure fluctuations.

The digital screen accurately displays the pull-off force, with unit options in MPa, psi, and kN. The instrument allows users to set a pressurization limit for precise pressure application. A customizable hold time feature enables durability testing under specific pressure conditions.

Designed for ease of use and accuracy, it requires minimal maintenance and consumables. It is widely used for adhesion testing on concrete-based coatings, anti-corrosion coatings, and multi-layer coating systems.

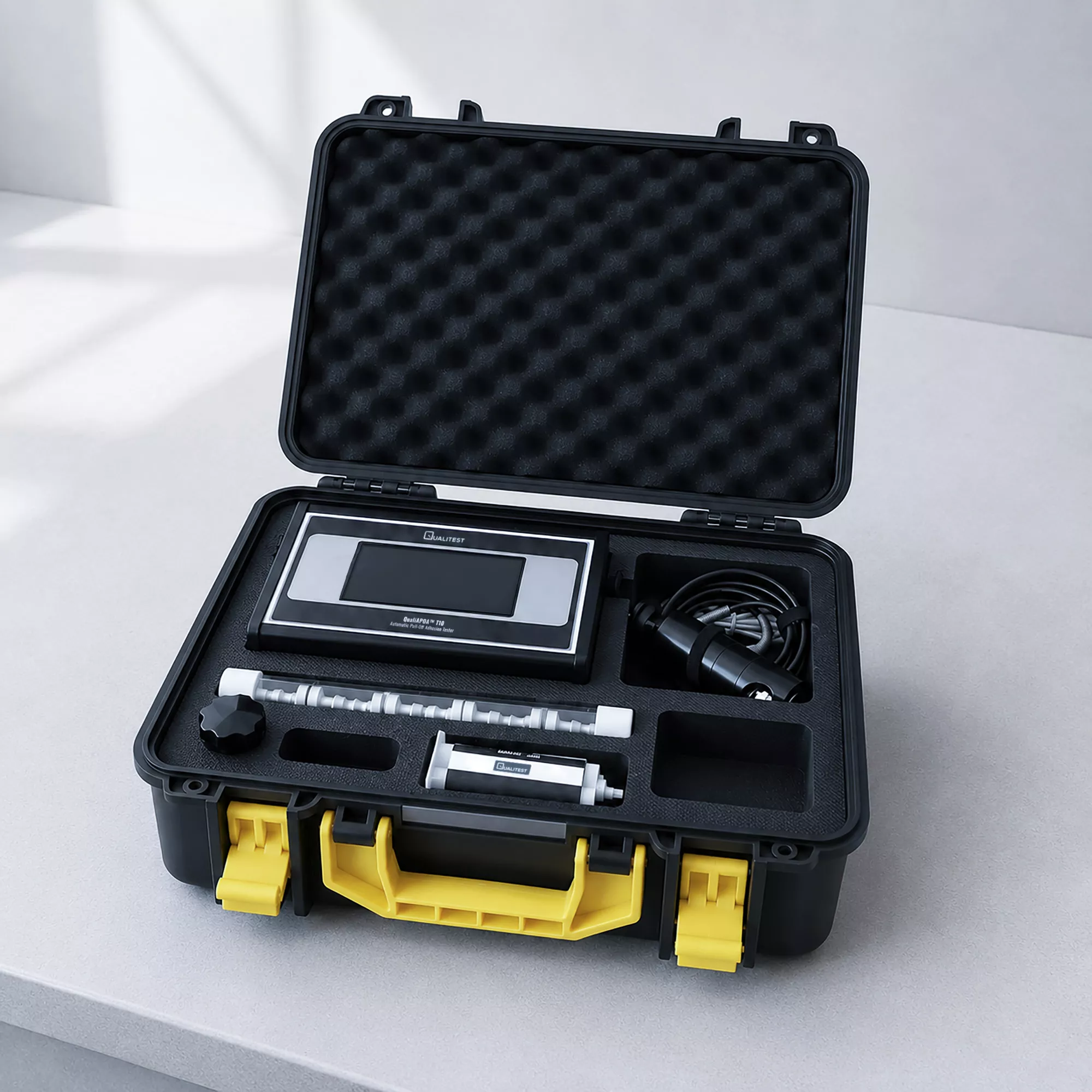

Automatic Pull-Off Adhesion Tester QualiAPOA-T10

Automatic Pull-Off Adhesion Tester QualiAPOA-T10 Features

  • Portable Design: Built-in rechargeable lithium battery eliminates the need for an external power supply, making it ideal for use at construction sites, production facilities, and laboratories.
  • USB Storage & Easy Data Transfer: Equipped with a Type-C port, allowing direct data transfer to a computer without requiring additional software installation.
  • Automated Data Logging: Each saved record includes the test date and time for easy tracking and data management.
  • Versatile Dolly Sizes: Compatible with pull-off dolly sizes of 10mm, 14mm, 20mm, and 50mm, accommodating various bonding strengths and enhancing measurement precision.
  • Factory-Calibrated Accuracy: Each unit is calibrated with a CMA-traceable pressure sensor, ensuring ±1% full-scale accuracy.
  • Comprehensive Data Storage: Stores essential test parameters, including maximum pull-off force, pull-off rate, test duration, and dolly size.
  • User-Friendly Controls: Easily select dolly size, change measurement units, or store readings with simple key presses.
  • Automatic Force Calculation: Eliminates the need for conversion tables by calculating pull-off force based on dolly size.
  • High-Quality Construction: Features aluminum self-centering dollies that meet international standards, ensuring even force distribution on smooth or uneven surfaces.
  • Precision Sensors: Industrial-grade pressure sensors maintain consistent accuracy.
  • Clear LCD Display: Supports three measurement units—MPa, psi, and kN.
  • Real-Time Force Curve Display: Allows users to visually track changes in pull-off force throughout the test process.
  • Stable & Adjustable Pull-Off Rate: Electric operation enhances test repeatability by ensuring a controlled and consistent drawing speed.
  • Pressure Hold Function: Enables pass/fail evaluation by measuring coating durability under sustained tension.
  • High-Capacity Data Storage: Stores up to 200,000 test records.
  • On-Site Printing (Optional): Bluetooth printer support for immediate test result printing.
  • Full Touchscreen Interface: Intuitive and easy to use.

Automatic Pull-Off Adhesion Tester QualiAPOA-T10 Technical Specifications

Dolly size 20mm(standard); 10mm, 14mm, 50mm(optional)
Resolution 0.01MPa (1psi)
Accuracy ±1% full scale
Pull-off strength range 10mm dolly: 4.0~80MPa
14mm dolly: 2.0~40MPa
20mm dolly: 1.0~20MPa
50mm dolly: 0.1~3.2MPa
Supercharging rate 10mm dolly: 0.4~6.0MPa/s
14mm dolly: 0.2~3.0 MPa/s
20mm dolly: 0.1~1.5MPa/s
50mm dolly: 0.02~0.24MPa/s
Power supply Built-in rechargeable lithium battery, equipped with charging adapter
Main Unit Dimension 240mm×138mm×81mm
Main Unit weight 4KG (after the battery is filled)
