Automatic sorting system composed of two tables which enable the pieces to be checked on both sides. The pieces will be loaded in bulk and then separated in different bins, into good parts (in the tolerance range) and scraps, at the end of each inspection cycle. The operator sets the machine with the parameters and the tolerances required and as a result, he obtains a complete report of the good parts, the scrap details and the counting for each type. The machine guarantees a perfect repeatability of the checks and traceability of the inspected batches.



Inspection Items

  1. Outer Diameter / inner diameter
  2. Surface Defect (clear image)
  3. Protruding Burr
  4. Across Corner / Flat
  5. Concentricity
  6.  Roundness
  7. ID
  8. Multi – Width
  9. Multi- Height, Thickness
Features/Advantages

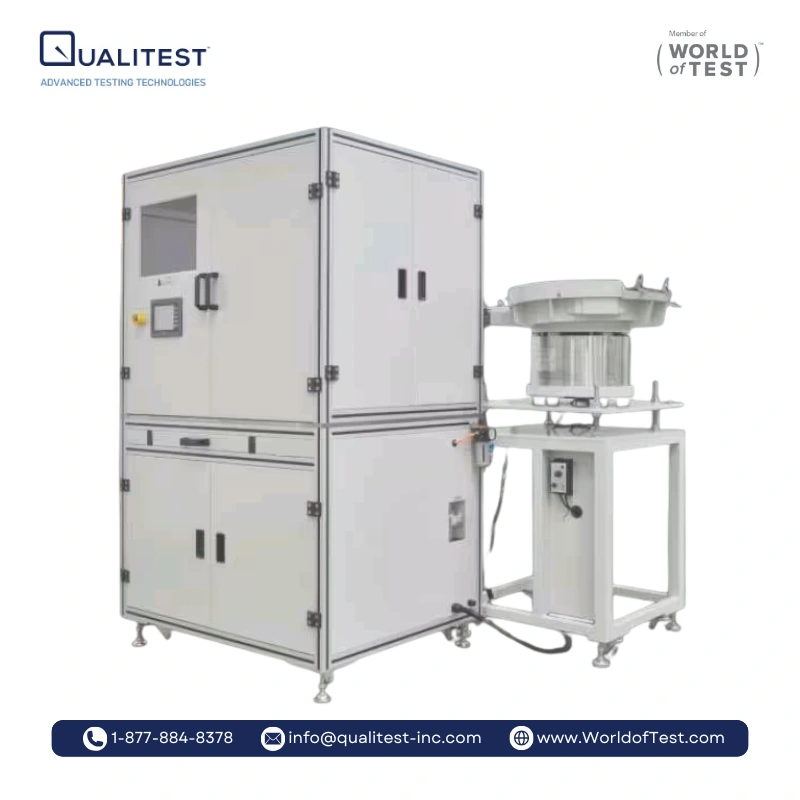

Four CCD cameras take accurate measures of objects on a glass plate for this automatic sorting machine. This sorting system boasts simultaneous measurement for both top and bottom, side views. The bottom view measurements are taken because the objects are resting on the glass plate. The QSS-G07 automatic sorting system is adaptable for the measurements of nuts, small screws, o-rings, and various rubber parts.

Technical Specifications

Specifications

QSS-G07

Speed

Maximum 150~500 pcs/min (depending on the size and inspection items) (Note: Screw can stand on the glass plate by head and well)

Size

(Machine & Feeder)

1640x1690x2070 mm (LxWxH)

Net Weight

700 kg

Shipping dimensions

(Machine, Feeder & wooden box)

1450x2300x2300 mm (LxWxH)

Gross Weight

(Machine, Feeder & wooden box)

900 kg

Number of CCD cameras

4 (Top view, Bottom view, Side view, 45 degree view)

Max. inspection part

  • Head Width: 2mm-10mm
  • Height: 2mm-16mm
  • Precision: ± 1 pixel
  • **Depnd on object can stand on the glass plate by head and stand well
