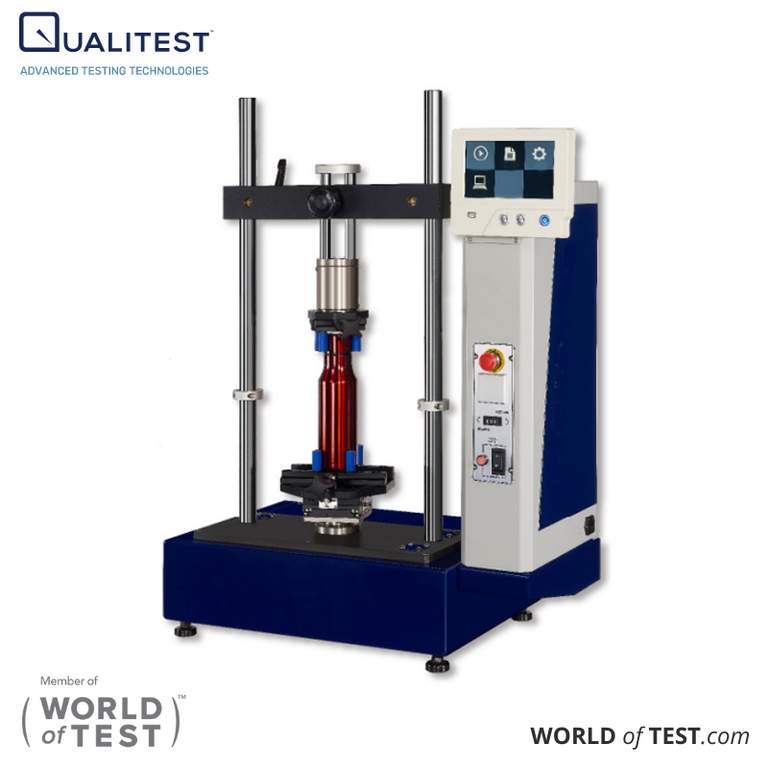

Automatic Torque Tester QualiTorque Auto-D2

Automatic Torque Tester QualiTorque Auto-D2
Parent Product
Torque Tester

Automatic Torque Tester QualiTorque Auto-D2

Torque testing is performed using a machine where the sensor is mounted at the top, while the sample to be tested is secured at the bottom. The test is conducted by rotating the lower clamp. Equipped with a standard display, the QualiTorque Auto-D2 allows for direct reading of test data. It can be set to perform torque testing and analysis at various speed settings. During testing, the torque curve and direction of torsion are shown in real-time, with the torque value of the sample being fully recorded as it rotates. The sample is held in place using a custom fixture, designed based on the sample size provided by the user.



Standard Accessories - Display

Automatic Torque Tester QualiTorque Auto-D2

Standard Accessories - Display

Automatic Torque Tester QualiTorque Auto-D2
  • Data sampling rate up to 1200Hz.
  • Operation method: Operated via keyboard and mouse through the software interface, compatible with Windows systems.
  • Language options: English and others.
  • Operation mode: TCP/IP interface connection, with software controlling the machine directly.
  • Supports various units, including both Metric and Imperial units.
  • Flexible database management form.
  • Allows custom naming of data and supports self-defined formula-based data analysis.
  • Test page displays the test curve and real-time data simultaneously.
  • Data processing features: save, load, list, and compare data.
  • Supports graph X-Y axis adjustment, marking specific spots, and defining ranges.
  • Software protection includes over-displacement, overload, over-time, and maximum torsion drop auto-stop features.
  • Test settings can be modularized to minimize human error.
  • Facilitates obtaining critical data by setting upper and lower data limits.

Standard Accessories - Standard Bottle Cap Torques Clamp

Automatic Torque Tester QualiTorque Auto-D2

Automatic Torque Tester QualiTorque Auto-D2 Features

  • Equipped with a 7" TFT color touch display to show real-time torque values and curves. The display can record up to 50 data points, and users can use a USB drive to store raw data during the test.
  • Supports clockwise and counterclockwise direction settings, as well as adjustable units for torsion, speed, and angular displacement. It can record maximum torque, 1st peak force, 2nd peak force, and more.
  • Features auto-stop settings based on time, torsion, percentage of torsion drop, or angular displacement.
  • Digital speed control ensures high accuracy, offering a wide speed range from 0.50 to 23.00 RPM.
  • Software is available for optional purchase.
  • Supports a broad voltage range from 100-240V, making it suitable for various applications.

Automatic Torque Tester QualiTorque Auto-D2 Technical Specifications

Property Value
Capacity 3 / 6 / 10 / 15 / 50 N-m
Torsion Resolution 1/10,000
Torsion Unit kN·m, N-m, N-cm, mN-m, kgf-m, kgf-cm, gf-cm, lbf-ft, lbf-in, ozf-in, N-mm, cN-m, gf-mm
Speed Unit rev/min (RPM), deg/min (RPH, RPS for software)
Angular Displacement Unit rad, deg (rev for software)
Power Type 24V DC Motor
Test Speed 0.50 – 23.00 RPM (180.00 – 8280.00 deg/min) ±1% Digital Input
Test Direction Clockwise/Counter-clockwise
Angular Resolution 0.01°
Max. Sampling Rate 1200Hz
Test Space Width: Max. 340mm
Height: Max. 400mm (without grip)
Operation Mode Operated by display, and software for optional
Power Supply Single phase AC 100 – 240V, 5A
Dimension 70 × 40 × 106 cm
Weight 70 kg
