Core Principle of Vicat Testing

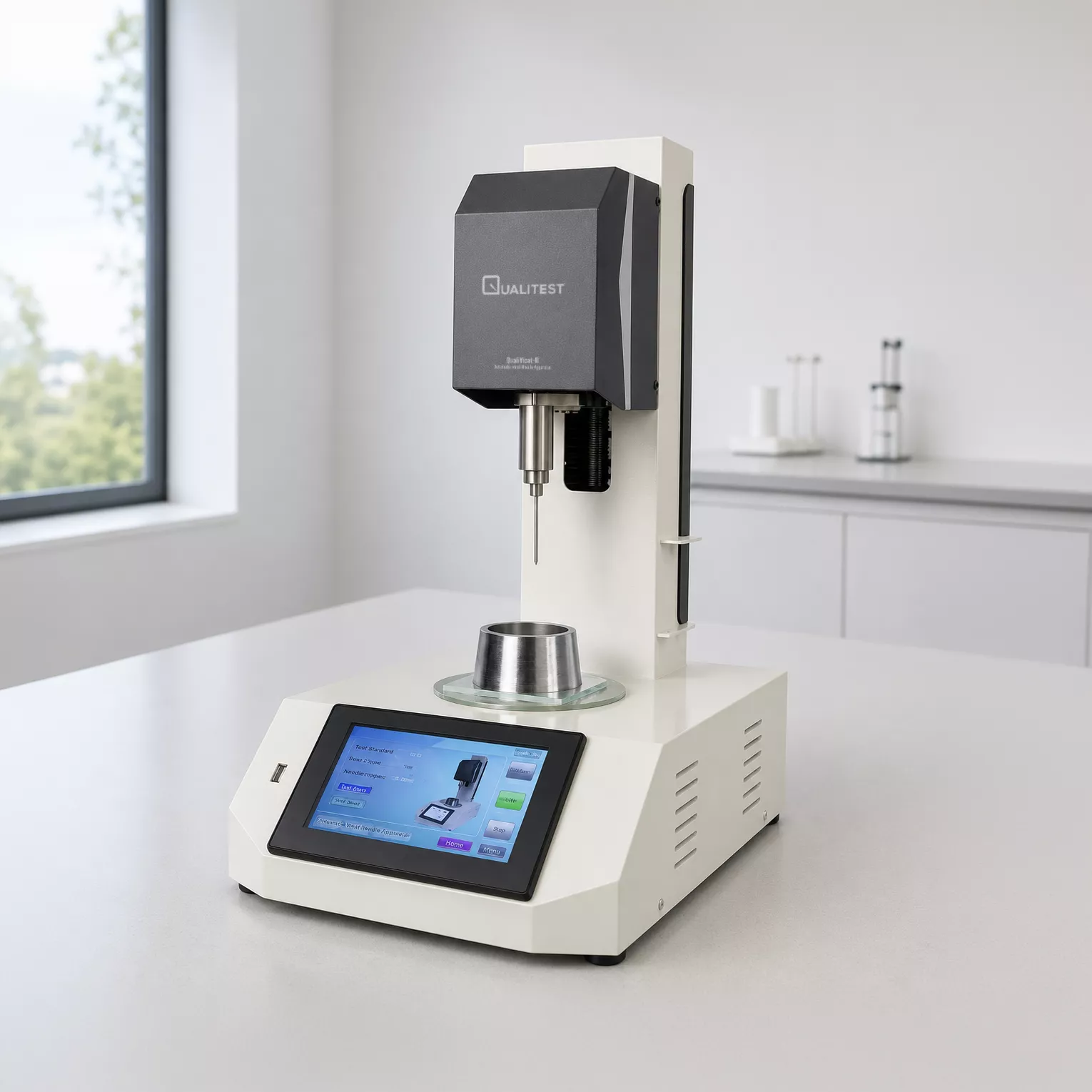

Pinpointing the exact moment cement paste transitions from liquid to solid is a constant laboratory struggle. The Automatic Vicat Needle Apparatus Single Station QualiVicat™ II automates the classic penetration resistance theory to eliminate eye-straining manual checks.
By mechanically dropping a standard 300g assembly into the mixture, the system captures the precise physical resistance curve as chemical hydration builds up internal yield stress. See the core methodology below to find out how this transition unfolds.
At its fundamental core, the testing methodology measures how the physical resistance of a cement mixture builds up as the chemical hydration reaction progresses. When a standardized 300-gram sliding assembly equipped with a testing needle drops into a fresh batch of unhardened cement paste, it sinks to the very bottom plate.
As minutes tick by, microscopic chemical bonds form within the mixture, causing it to actively resist downward penetration. This steadily increasing physical pushback illustrates the development of an internal yield stress as the material transitions from a wet, workable fluid into a solid structural foundation.
- Initial Setting Time: This critical milestone happens when the cement paste begins to hold its structural ground. The standardized weighted pin can no longer push all the way through to the bottom plate of the testing mold.
- Final Setting Time: This marks the conclusion of the testing cycle. The paste has hardened to the point where the tip of the metal pin leaves only a very shallow, barely visible dent on the top surface of the specimen.
The Automatic Vicat Needle Apparatus tracks this progressive stiffening timeline, plotting the exact vertical displacement the pin reaches against the minutes elapsed since the initial mixing phase.
Automated Test Operation and Mechanism
The operational method of our automated system replaces inconsistent manual procedures with a highly controlled electromechanical sequence that executes identically during every single test cycle.
- Frictionless Gravity Penetration: To perform the penetration method correctly, a highly precise stepping motor lowers the weighted needle smoothly, ensuring there is zero mechanical friction to interfere with the natural fall of the testing pin.
- Precision Depth Measurement: A split-structure, high-precision LVDT displacement sensor captures the exact vertical position where the needle stops. Measuring the penetration depth down to an impressive 0.01-millimeter resolution, this digital tracking method completely removes the subjective guesswork of reading tiny graduation lines.
- Automated Result Evaluation: A built-in microprocessor handles the mathematical side of the theory. It sequences the drops at scheduled intervals, records the penetration values, and calculates a detailed setting-time curve to automatically evaluate the final test results based on programmed specifications.
- Dual-Test Shared Needle: To keep the testing process streamlined, the methodology utilizes a shared needle for both the initial and final setting tests, decreasing laboratory hardware swapping while maintaining strict methodological accuracy.
Compliance with International Standards
To be accepted in commercial and industrial projects, automated testing methodologies must demonstrate equivalent performance to standard manual reference methods. The Automatic Vicat Needle Apparatus Single Station is rigorously engineered to comply with strict international specifications, fully executing the methodological requirements of AASHTO T131, ASTM C187, ASTM C191, and EN 196-3 testing procedures.
Even as a single-station system that tests one specimen at a time, the machine executes the entire multi-hour methodological cycle automatically. The test requires that successive penetrations do not interfere with one another. To achieve this, the apparatus utilizes a small, rotating platform to slowly turn the sample mold between intervals, guaranteeing the metal needle always drops into a fresh, undisturbed spot rather than landing in an already compromised section of the paste.
Depending on your specific regulatory requirements, the testing configuration can easily switch between the standard EN 1.13-millimeter needle and 70/80-millimeter conical mold, or the optional ASTM/AASHTO 1-millimeter needle setup.
