Automatic Vision Measuring Machine – QualiVMM™ Auto Series

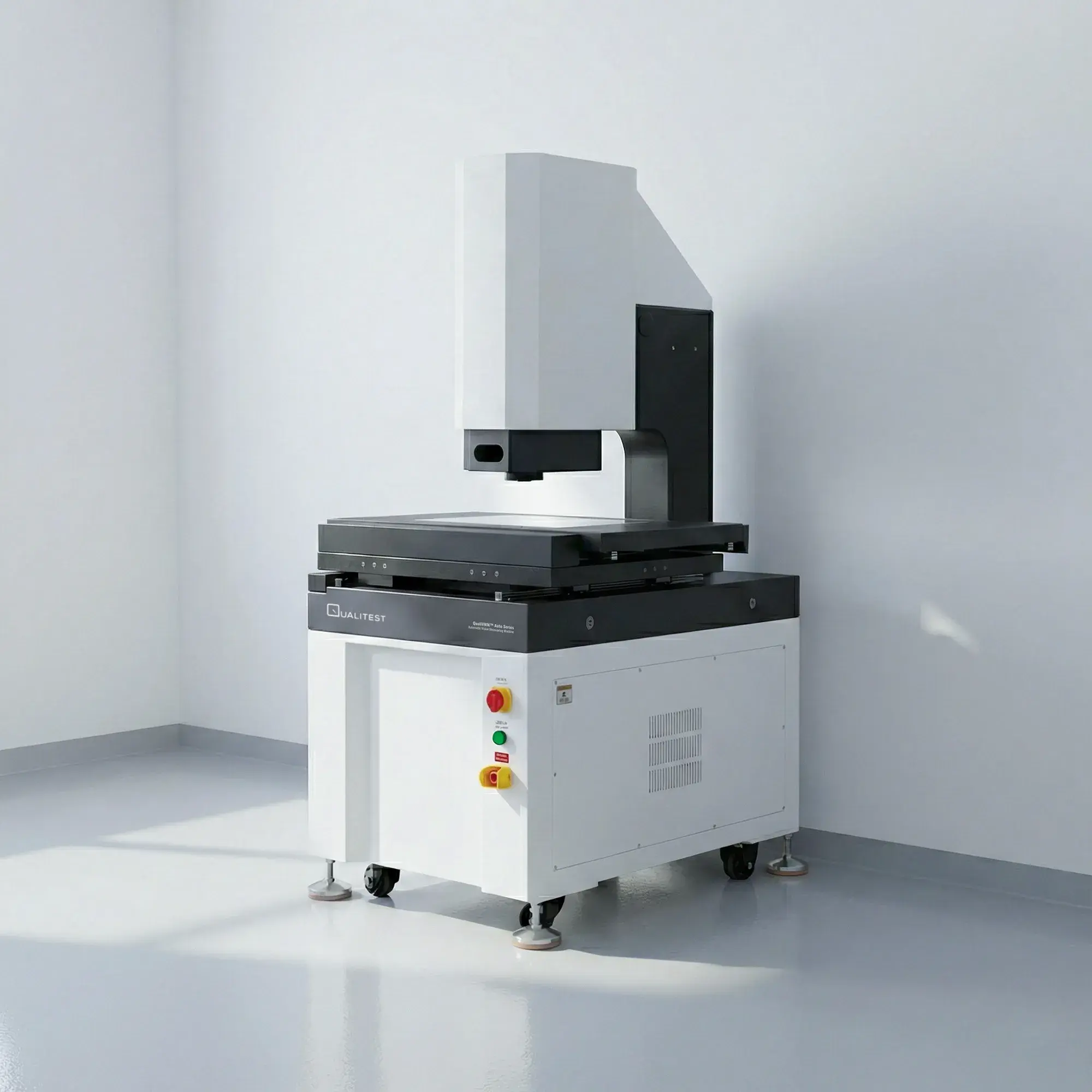

A Vision Measuaring Machine (also written as a Vision Measuring Machine) is a non-contact metrology system that uses precision motion, optics, and software to measure parts quickly and consistently. QualiVMM™ Auto Series is built around CNC-controlled XYZ movement, a granite base/column, and a high-resolution camera to support reliable inspection in production and QC environments.

The motion platform uses precision linear guides, a ball screw, and servo drive control to improve positioning stability during programmed runs.

A 0.5 μm scale resolution and a Zoom745 optical zoom lens support clear imaging and repeatable pixel calibration.Programmable LED surface and contour lighting helps manage contrast across different materials and finishes.

Automatic Vision Measuring Machine – QualiVMM™ Auto Series Applications

  • Dimensional inspection for machined parts
    • QualiVMM™ Auto Series measures lengths, diameters, radii, angles, and feature spacing using optical edge detection. This approach supports repeatable inspection where contact tools slow down throughput or create operator variation. The CNC workflow helps standardize results across shifts and multiple inspectors.
  • Electronics and precision components
    • Small components often need clear imaging, stable positioning, and consistent lighting to identify faint edges. The system combines a high-resolution camera, Zoom745 magnification, and programmable illumination to improve visibility during measurement and review.
  • 2.5D and 3D measurement when sensors are added
    • Some parts require height, surface, or form information beyond 2D geometry. Optional configurations add a contact probe, laser sensor, or multi-sensor setup to support 3D element measurement and calculations such as area and volume after edge detection.
  • Batch inspection for fixtures and repeat jobs
    • Many shops need the same part measured repeatedly across lots. The software supports array measurement for equidistant features and workpiece arrays for batch processing with single or multiple fixtures. This reduces repetitive setup effort and improves cycle time for routine inspection.
  • GD&T-focused reporting and supplier documentation
    • Quality teams often need clear pass/fail feedback and report formats that match documentation workflows. The software supports geometric tolerance evaluation and can flag out-of-tolerance results, then export reports to common file formats for review and records.
Automatic Vision Measuaring Machine

Standards

  • ISO/IEC 17025: calibration and measurement traceability framework for labs and QA programs.
  • ISO 10360 (series): acceptance and reverification test concepts widely used for coordinate measuring systems.
  • ASME B89 (dimensional metrology series): North American guidance for dimensional measurement practices.
  • ISO GPS standards (example: ISO 1101 for GD&T): helps align measurement outputs to drawing requirements.

Automatic Vision Measuring Machine – QualiVMM™ Auto Series Key Features

  • CNC-controlled XYZ motion with precise positioning for automated programs and repeatable runs.
  • Granite base and column to improve mechanical stability during measurement.
  • Precision motion components using linear guides, ball screw, and servo drive control to support accuracy and stability.
  • 0.5 μm scale resolution using a high-precision glass grating ruler for reliable readings.
  • High-resolution camera plus Zoom745 optics to support clear observation, accurate measurement, and one-time pixel correction.
  • Programmable LED lighting system with contour illumination and adjustable surface lighting to manage contrast across materials.
  • Automation-ready measurement software with GD&T evaluation, CAD import, arrays for batch work, and report export.

Automatic Vision Measuring Machine – QualiVMM™ Auto Series Technical Specification

Core platform specifications by model

SpecificationQualiVMM™ Auto 300 SeriesQualiVMM™ Auto 400 SeriesQualiVMM™ Auto 500 SeriesQualiVMM™ Auto 600 Series
X/Y travel (mm)300 × 200400 × 300500 × 400600 × 500
Z travel (mm)200 (optional 300/400)
Accuracy E1x, y (µm)2.5 + L/2003 + L/2003 + L/2004 + L/200
Accuracy E1z single-point (µm)4 + L/2005 + L/2005 + L/2005 + L/200
Scale resolution0.5 µm glass grating ruler
Worktable materialGranite
Guide systemP-class precision linear guide rail
DriveAC servo / DC servo + rolling lead screw
Operation modeHandle + mouse + programmable automatic detection
Video camera1/3" high-resolution digital camera
Lens / magnificationZoom745 0.7×–4.5× (optical), ~28×–180× (video)
LightingLED parallel contour + 0–255 adjustable 8-division surface LED; coaxial point LED optional
SoftwareVismeasoft
OS supportWindows 10/11 (32/64-bit)
LanguageEnglish + Chinese variants; additional languages available
Environment20°C ±2°C; <1°C/hr change; 30–80% RH; vibration <0.02g, ≤15Hz
Power220V / 50Hz / 10A (110V is also available)
Load capacity0–30 kg (max 50 kg)
Machine size (W×D×H, mm)789×636×16401033×820×16851213×940×17051453×1120×1725
Net weight (kg)396466560796

Model variants (sensor configurations)

QualiVMM™ Auto Series can be configured for 2.5D, contact-assisted 3D, laser-scan capability, or multi-sensor measurement, depending on your inspection needs

  • Type A: Optical zoom-lens sensor
  • Type B: Zoom-lens + contact probe sensor
  • Type C: Zoom-lens + laser sensor
  • Type D: Zoom-lens + contact probe + laser sensor

Options and customization

Optional items include electronic feedback lens, electric zoom lens, contact probe, white-light spot spectrum, 3D camera, and Bluetooth remote control.

A gantry mobile bridge camera platform and extended travel sizes can be customized based on inspection requirements.
