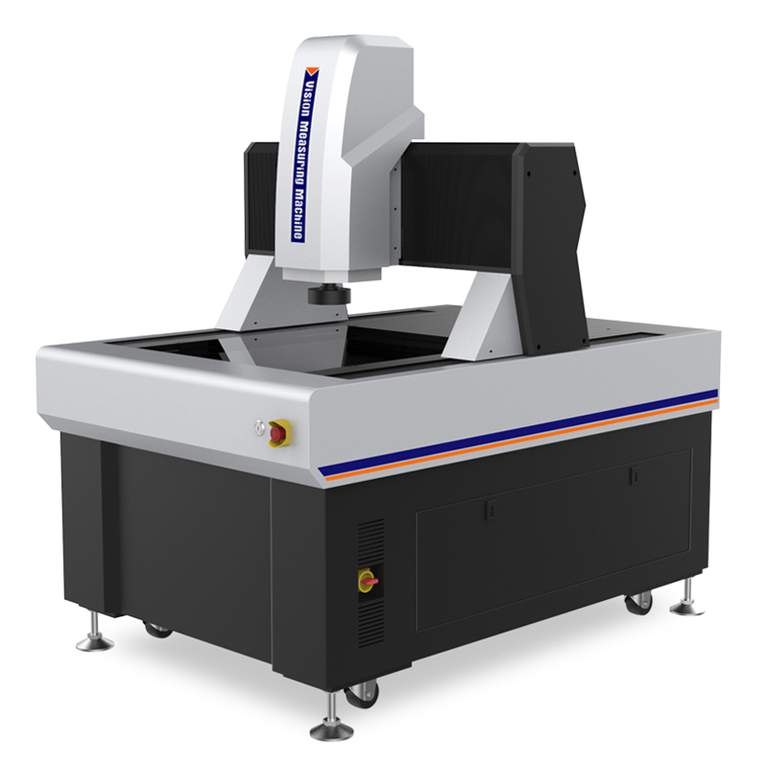

Automatic Vision Measuring Machine AutoVision862 Series is a fully automated gantry-style system designed for high-precision, large-scale measurements. Its movable bridge structure keeps the workpiece stationary, ensuring exceptional accuracy and stability. Ideal for applications in electronics, medical devices, LCD technology, aerospace, and more.

Automatic Vision Measuring Machine AutoVision862 Series

Automatic Vision Measuring Machine AutoVision862 Series Features

  • Moving bridge structure keeps the workpiece stationary for precise measurements.
  • Four-axis CNC with fully automated closed-loop control for seamless operation.
  • High-stability Indian marble base and pillar for enhanced durability.
  • RSF linear scale with 0.1µm resolution, precision-ground ball screw, and AC servo motor ensure motion system accuracy and stability.
  • High-definition color camera for clear observation and precise measurement.
  • 8.3x high-resolution motorized coaxial zoom lens, requiring only a one-time pixel correction.
  • Programmable 5-ring, 8-division LED cold illumination with contour LED parallel lighting and built-in intelligent brightness adjustment.
  • User-friendly iMeasuring software for advanced quality control.
  • Optional MCP probe and laser sensor module available, with customization options to meet specific requirements.

Automatic Vision Measuring Machine AutoVision862 Series Technical Specifications

Commodity2.5D Automatic Vision Measuring Machine3D Automatic Contact & Vision Measuring Machine2.5D Automatic Laser-Scan & Vision Measuring Machine3D Automatic Multisensory Measuring Machine
ModelAutoVision862AAutoVision862BAutoVision862CAutoVision862D
Code#523-180L523-280L523-380L523-480L
Sensor-TypeA-Type: One-Sensor
Optical
Zoom-lens Sensor		B: Twin-Sensor
Zoom-lens Sensor
and
Contact Probe Sensor		C: Twin-Sensor
Zoom-lens Sensor
and
Confocal Laser Sensor		D: Tri-Sensor
Zoom-lens Sensor
Contact Probe Sensor
Confocal Laser Sensor
X/Y-axis Travel(800*600)mm
Z-axis Travel200mm
X/Y/Z-3 axis Linear ScaleEuropean Linear Scale Resolution: 0.1um
Guidance ModeP-Class Precision linear guide, double-track double slider guide.
Operation ModeJoystick controller, Mouse operation, automatic detection program.
Accuracy*XY-axis：≤1.8+L/200(um)
Z-axis：≤4+L/200(um)
Repeatability±2um
Video System**1/1.8" High-Definition Digital Color Camera
8.3X Motorized Zoom Lens
Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21.5” monitor)
Field of View(mm) （D*H*V）Magnification0.6X1X1.5X2X2.5X3X3.5X4X4.5X5X
1/1.8"CCD14.72x11.78x8.838.83x7.07x5.305.89x4.71x3.534.42x3.53x2.653.53x2.83x2.122.94x2.36x1.772.52x2.02x1.512.21x1.77x1.331.96x1.57x1.181.77x1.41x1.06
Illumination  SystemContourLED parallel contour illumination
Surface0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Measuring SoftwareiMeasuring Software
Load Capacity25Kg~50Kg
Working EnvironmentTemperature 20℃±2℃, temperature change<1℃/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz.
Voltage220V/50Hz/10A (110V is also available)

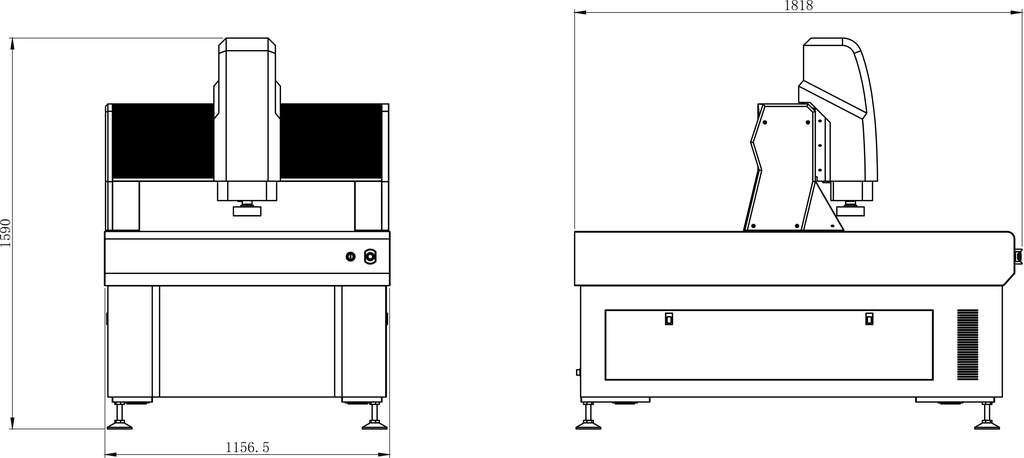

Dimension (WxDxH)(1157x1818x1590)mm
Packing Size(2300x1700x2000)mm
Net Weight2000Kg

Note：

  • L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.
  • **Magnification is approximate value, it is related to the dimension of monitor and resolution.
  • Field of view(mm) = (diagonal*Horizontal*Vertical)
  • 0.5X or 2X objective is optional available and realize image magnification: 10X~64.5X or 40X~258X.

Configuration List Automatic Vision Measuring Machine AutoVision862 Series

ModelEffective   Measurement Travel mmDimensions (L*W*H)   mm
X-axisY-axisZ-axisMachine   dimensionsPackage   dimensions
AutoVision432300mm400mm200mm(832*1195*1579)mm(1380*1170*1650)mm
AutoVision542400mm500mm200mm(940*1463*1591)mm(1690*1300*2000)mm
AutoVision652500mm600mm200mm(1040*1568*1591)mm(1800*1400*2000)mm
AutoVision862600mm800mm200mm(1157*1818*1590)mm(2300*1700*2000)mm
AutoVision1082800mm1000mm200mm(1357*2018*1790)mm(2500*1900*2200)mm
