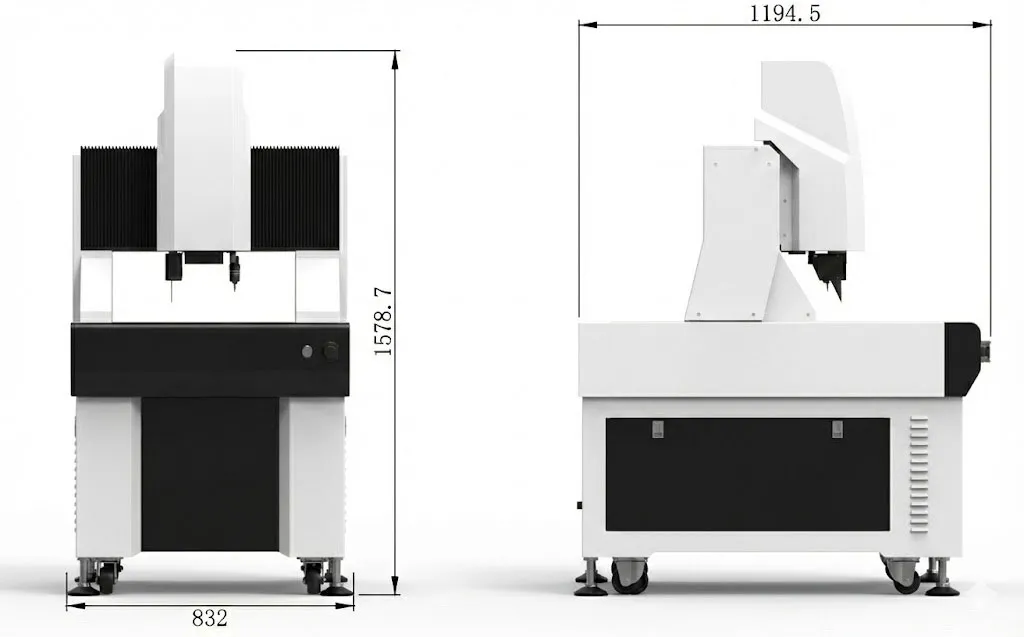

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 100 Series

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 100 Series Applications

• Electronics and mitall geometric features
  • Such as edges, hole patterns, connector features, stamped parts, and molded details. Automated programs help handle high mix and high volume work where consistent pass/fail decisions matter.
• Medical device and precision instrument parts
  • Suppoication for small housings, precision inserts, cut features, and molded or machined components. Stationary-workpiece architecture helps maintain stability when inspecting delicate parts.
• LCD, glass, and flatness-related checks
  • Helps with 2D contour measurement plus height-related checks when using probe or laser options, useful for flat parts and components where warpage, thickness, or step features must be monitored.
• Aerospace and high-precision machining
  • Measures complex prismatic features, profiles, radii, angles, and positional relationships. Progimproves throughput for repeated part families and supports documentation for quality systems.
• Fast batch inspection for production QC
  • Fits operations that need repeatable, program-driven measurement of similar parts throughout the day. Once the routine is created, the system runs motion and calculations automatinspection cycles.

Standards

• ISO 10360-7 (imaging probing systems)
  • Addresses calibration and testing methods for non-contact CMMs equipped with imaging probing systems such as video or vision. This is a strong ISO-family replacement to cite for vision-based coordinate measurement performance context.
• ISO 14978 (GPS measuring equipment concepts and requirements)
  • Provides general concepts and requirements used across GPS measuring equipment standards, helpful when describing measurement equipment characteristics and calibration expectations.
• ASME B89 (dimensional metrology standards family)
  • Common reference family in the U.S. for dimensional metrology practices and performance evaluation standards. It supports U.S.-market language around metrology governance and best practices.
• GD&T alignment in software workflows (ISO GPS and ASME GD&T usage)
  • Your provided software description references ISO/GPS and ASME geometric dimensioning and tolerancing alignment in measurement reporting and evaluation workflows. This supports positioning for GD&T-based inspection reporting.
