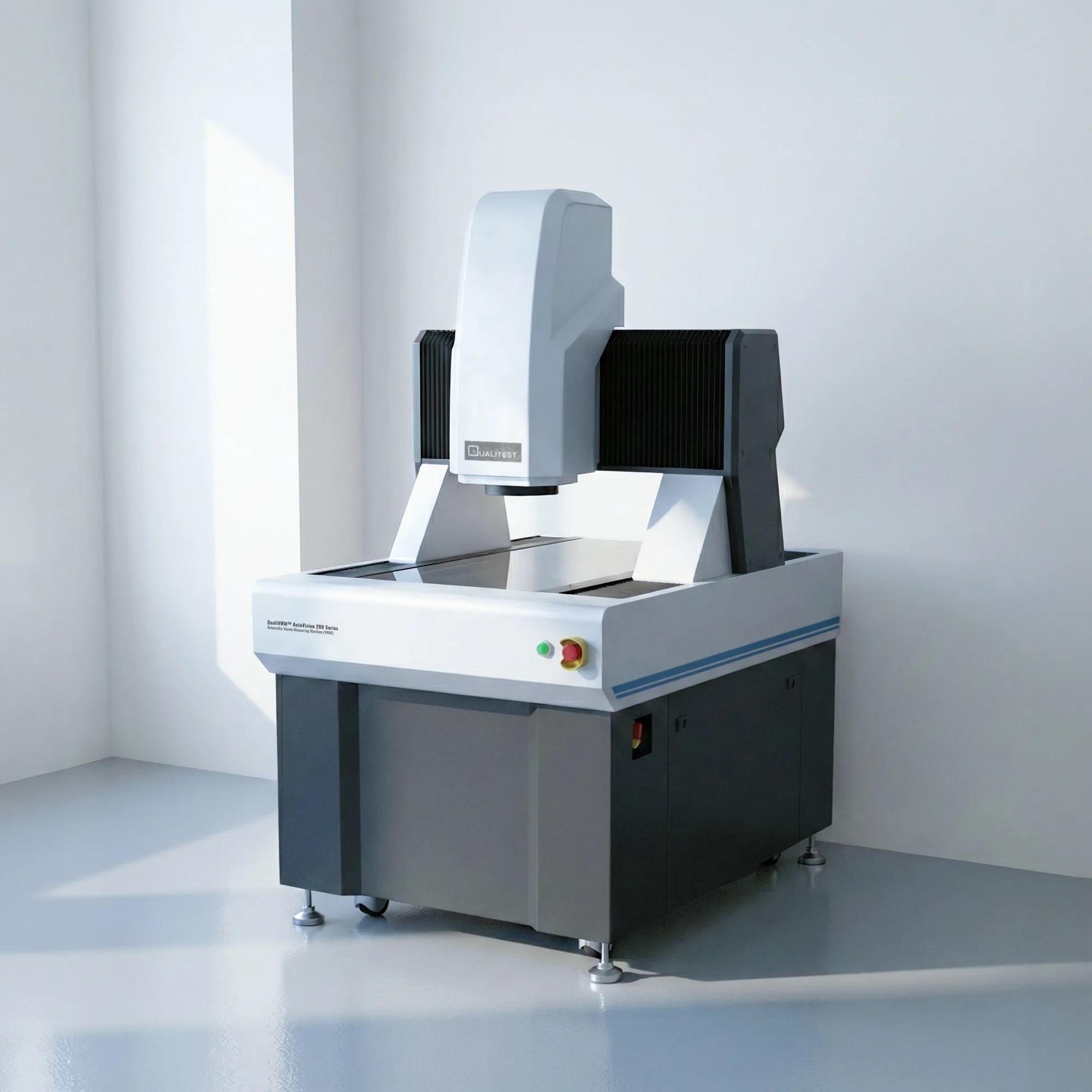

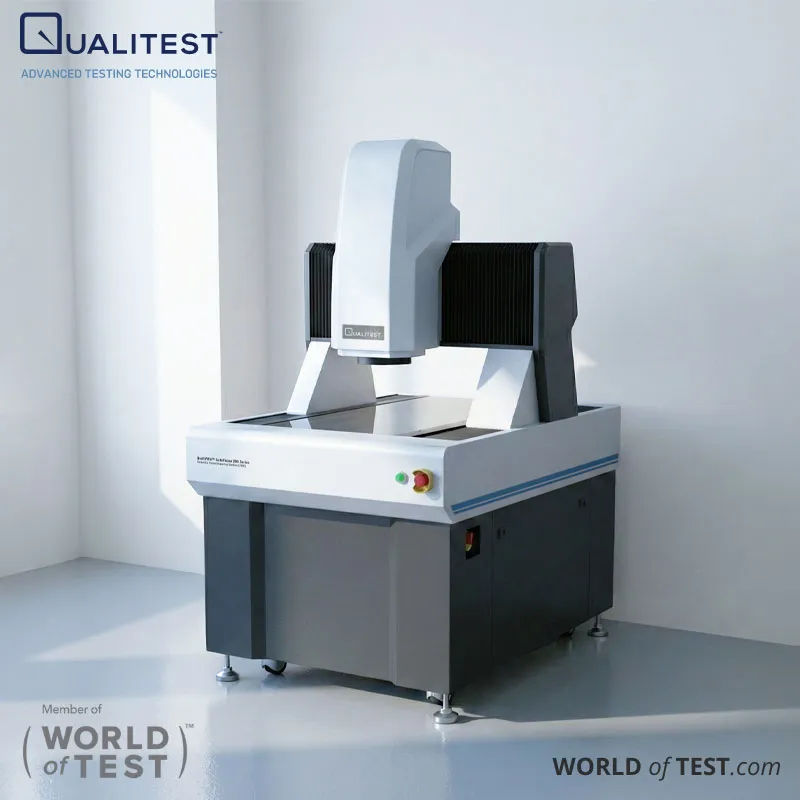

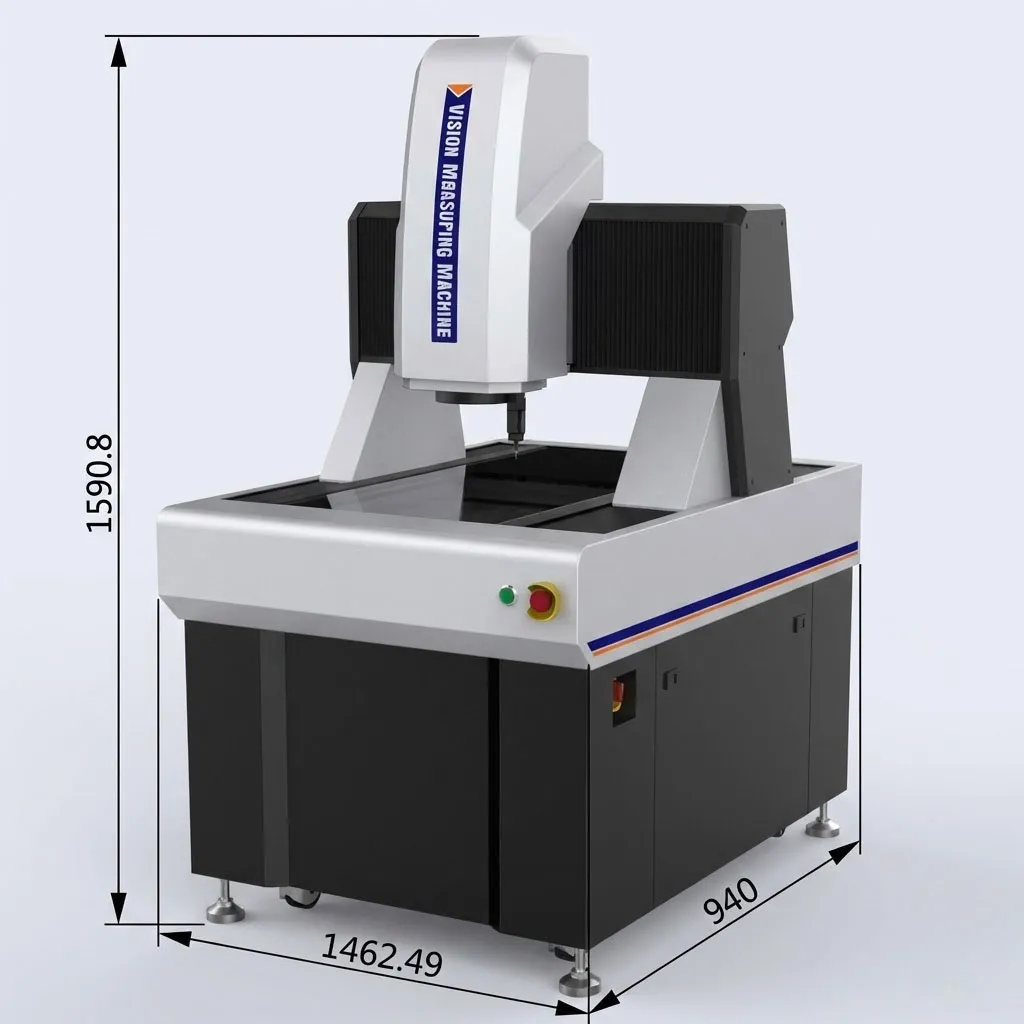

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 200 Series

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 200 Series Applications

• Electronics and connectors
  • Measures hole patterns, edge profiles, pitch features, molded details, and positional relationships. Program-bauor variation across production shifts.
• Medical devices and precision components
  • Supports dimensional inspection of small housings, machined details, and molded features where repeatable results and traceable reportiny workpiece helps when parts are lightweight or sensitive.
• LCD, glass, and flat parts
  • Handles 2D contour measurement and feature location tasks for flat parts. Probe or laser options add height-related checks for steps, thickness pointson, depending on the measurement plan.
• Aerospace and precision machining
  • Measures prismatic features, angles, radii, and GD&T-related elements in repeatable routines. Automated cycles support consistent inspection folies and documentation needs.
• Batch inspection for production QC
  • Fits operations that measure many similar parts daily. The system runs motion, autofocus, lighting control, measurement, and calculation throu faster throughput.

Standards

• ISO 10360-7
  • CMMs with imaging probdely used for acceptance and reverification tests of Cartesian CMMs equipped with imaging probing systems.
• ISO 14978 (GPS measuring equipment concepts and requirements)
  • Supports how measuring equipment characteristics are specified and communicated within the ISO GPS framework. This helps when describing calibration, specification presentation, and metrology characteristics in a consistent way.
• ASME B89 (dimensional metrology standards family)
  • Often referenced in the U.S. for dimensional metrology practice and evaluation context. It is useful as a standards-family reference for metrology governance and measurement practice alignment.
