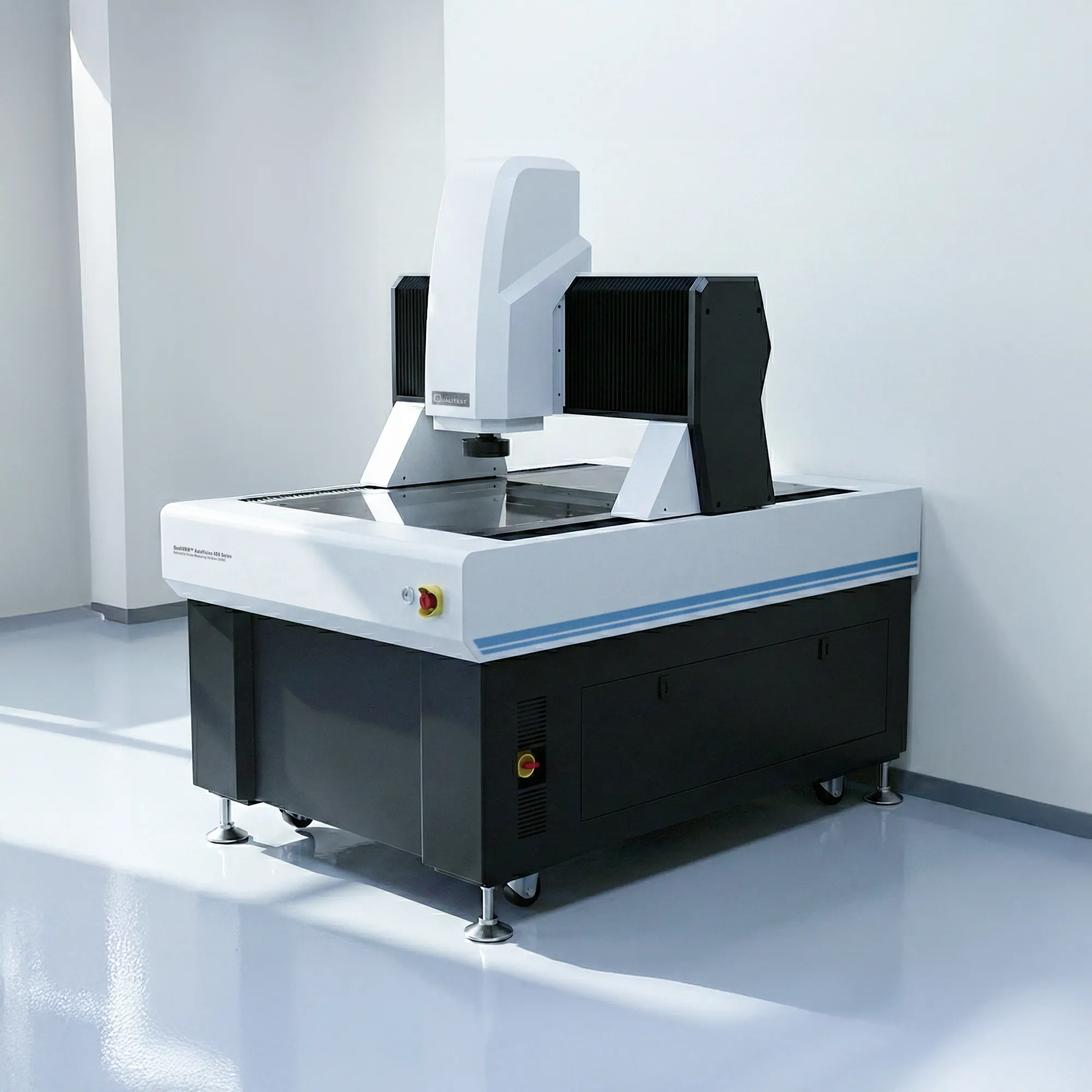

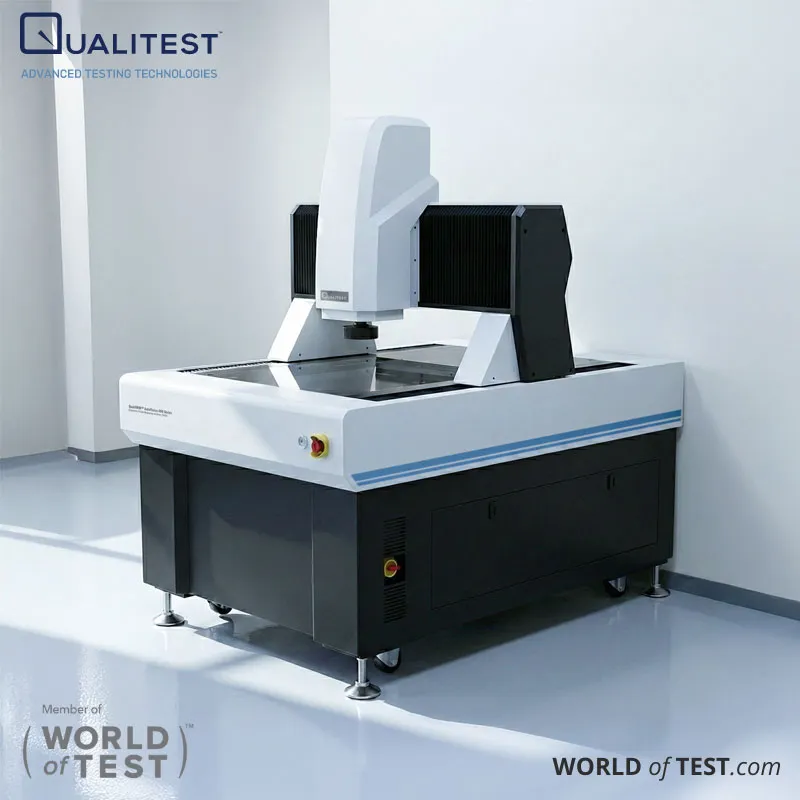

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 400 Series

Vision Measuring Machine performance matters most when teams need fast, repeatable dimensional checks across larger parts. QualiVMM™ AV 400 Series uses a moving-bridge structure that keeps the workpiece fixed while the machine runs CNC measurement routines for consistent results. The platform supports optical measurement as standard, with optional touch probe and confocal laser configurations for mixed-feature inspection.

The motion system combines precision linear guides, servo drive control, and a 0.1 µm linear scale for stable positioning across the measuring volume. HD imaging, motorized zoom optics, and programmable LED lighting help operators handle edges, surfaces, and contours without constant manual tweaking.

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 400 Series Applications

  • Machined metal components (CNC parts, fixtures, housings)
    • Measure lengths, diameters, radii, angles, GD&T callouts, and positional relationships to support in-process checks and final inspection reporting.
  • Injection-molded and cast parts
    • Verify profiles, flatness/warpage trends, and hole/boss features. Optical plus probe or laser options help when parts include mixed materials or complex surfaces.
  • Electronics and precision assemblies
    • Inspect connector geometry, stamped features, and small mechanical subassemblies using multi-point measurement tools and repeatable programs for production QC.
  • Medical and laboratory device components
    • Support dimensional verification on precision parts where traceability matters, using stored routines and consistent lighting control to reduce operator-to-operator variation.
  • Reverse engineering and CAD-to-part comparison
    • Import/export DXF, scan features, and generate references for automated measurement workflows or reconstruction tasks.
Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 400 Series

Standards

  • ISO 10360-7 (vision / imaging probing systems)
    • Commonly used for testing and verifying CMMs equipped with imaging (vision/video) probing systems.
  • ISO 10360-2 (contact probing, linear measurements)
    • Used for acceptance and periodic reverification of CMM performance for measuring linear dimensions, often referenced when a touch probe is part of the measurement system.
  • ISO 10360-8 (optical distance sensors)
    • Applies to Cartesian CMMs equipped with optical distance sensors, relevant when optical distance sensing is used in verification discussions.

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 400 Series Key Features

  • Gantry-style moving bridge with a fixed part position to help maintain measurement consistency during automated runs.
  • Closed-loop 4-axis CNC control that executes programmed routines for hands-off measurement and repeatable results.
  • Indian marble structural base and column engineered for rigidity and steady performance in metrology environments.
  • RSF linear scale system with 0.1 µm resolution supported by a precision-ground ball screw and AC servo motion package for accurate axis response.
  • HD color camera assembly that supports clear viewing and precise feature recognition for optical measurement.
  • Motorized coaxial zoom optics (8.3×) designed for accurate zoom measurement with a streamlined pixel calibration workflow.
  • Programmable LED lighting for both surface and edge conditions featuring 5-ring, 8-zone surface illumination plus parallel contour lighting, with automatic zone brightness control.
  • iMeasuring software built for QC operation offering practical measurement tools, automation functions, and report-ready outputs.
  • Expandable sensing and customization options including MCP touch probe and laser sensor modules, with configurations tailored to application requirements.

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 400 Series Technical Specification

Commodity2.5D Automatic Vision Measuring Machine3D Automatic Contact & Vision Measuring Machine2.5D Automatic Laser-Scan & Vision Measuring Machine3D Automatic Multisensory Measuring Machine
ModelQualiVMM™ AV 400AQualiVMM™ AV 400BQualiVMM™ AV 400CQualiVMM™ AV 400D
Sensor-TypeA-Type: One-Sensor Optical Zoom-lens SensorB: Twin-Sensor
Zoom-lens Sensor and Contact Probe Sensor		C: Twin-Sensor
Zoom-lens Sensor and Confocal Laser Sensor		D: Tri-Sensor
Zoom-lens Sensor
Contact Probe Sensor
Confocal Laser Sensor
X/Y-axis Travel(800*600)mm
Z-axis Travel200mm
X/Y/Z-3 axis Linear ScaleEuropean Linear Scale Resolution: 0.1um
Guidance ModeP-Class Precision linear guide, double-track double slider guide.
Operation ModeJoystick controller, Mouse operation, automatic detection program.
Accuracy*XY-axis: ≤1.8+L/200(um)
Z-axis: ≤4+L/200(um)
Repeatability±2um
Video System**1/1.8" High-Definition Digital Color Camera
8.3X Motorized Zoom Lens
Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21.5" monitor)
Field of View(mm) (D*H*V)Magnification0.6X1X1.5X2X2.5X3X3.5X4X4.5X5X
1/1.8" CCD14.72 x 11.78 x 8.838.83 x 7.07 x 5.305.89 x 4.71 x 3.534.42 x 3.53 x 2.653.53 x 2.83 x 2.122.94 x 2.36 x 1.772.52 x 2.02 x 1.512.21 x 1.77 x 1.331.96 x 1.57 x 1.181.77 x 1.41 x 1.06
Illumination SystemContourLED parallel contour illumination
Surface0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Measuring SoftwareiMeasuring Software
Load Capacity25Kg~50Kg
Working EnvironmentTemperature 20℃±2℃, temperature change<1℃/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz.
Voltage220V/50Hz/10A (110V is also available)

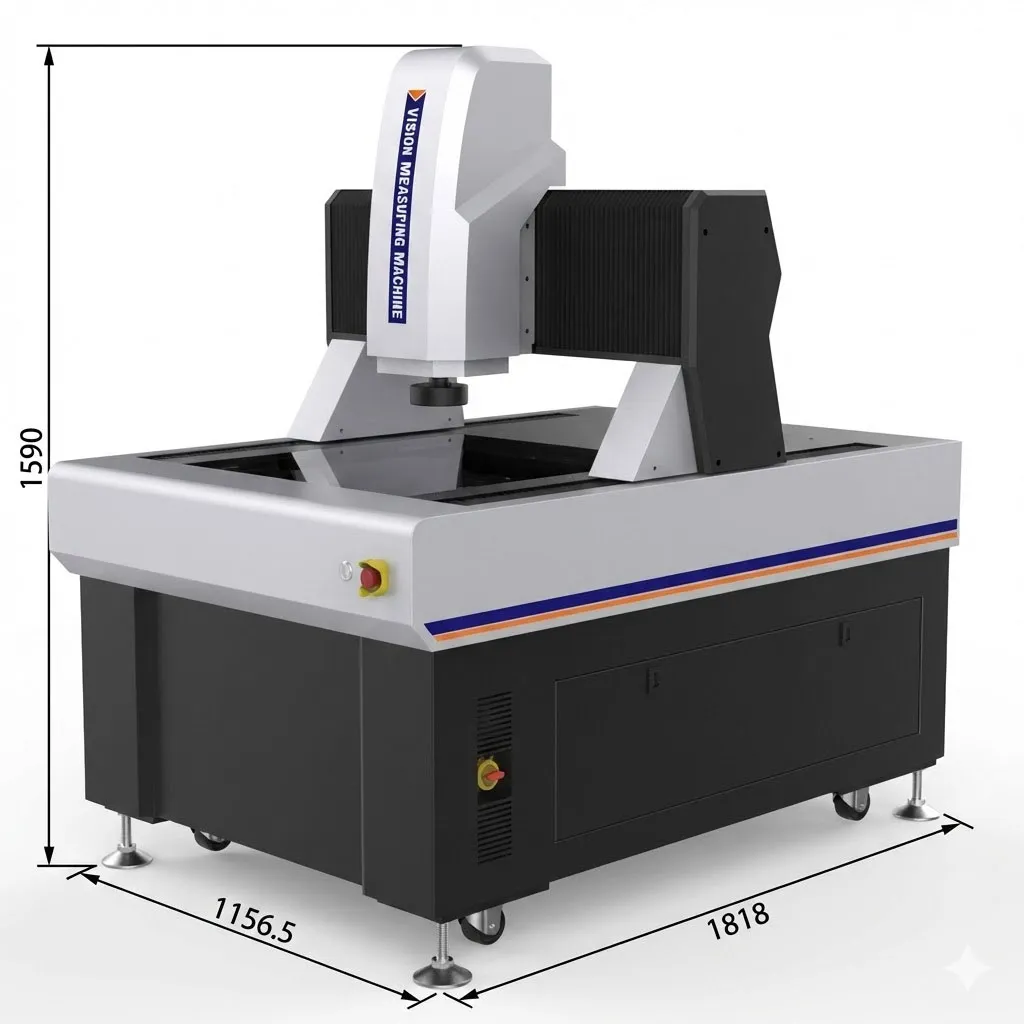

Dimension (WxDxH)(1157x1818x1590)mm
Packing Size(2300x1700x2000)mm
Net Weight2000Kg
Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV 400 Series
ModelEffective Measurement Travel mmDimensions (L*W*H) mm
X-axisY-axisZ-axisMachine dimensionsPackage dimensions
QualiVMM™ AV 100300mm400mm200mm832*1195*1579mm1380*1170*1650mm
QualiVMM™ AV 200400mm500mm200mm940*1463*1591mm1690*1300*2000mm
QualiVMM™ AV 300500mm600mm200mm1040*1568*1591mm1800*1400*2000mm
QualiVMM™ AV 400600mm800mm200mm1157*1818*1590mm2300*1700*2000mm
