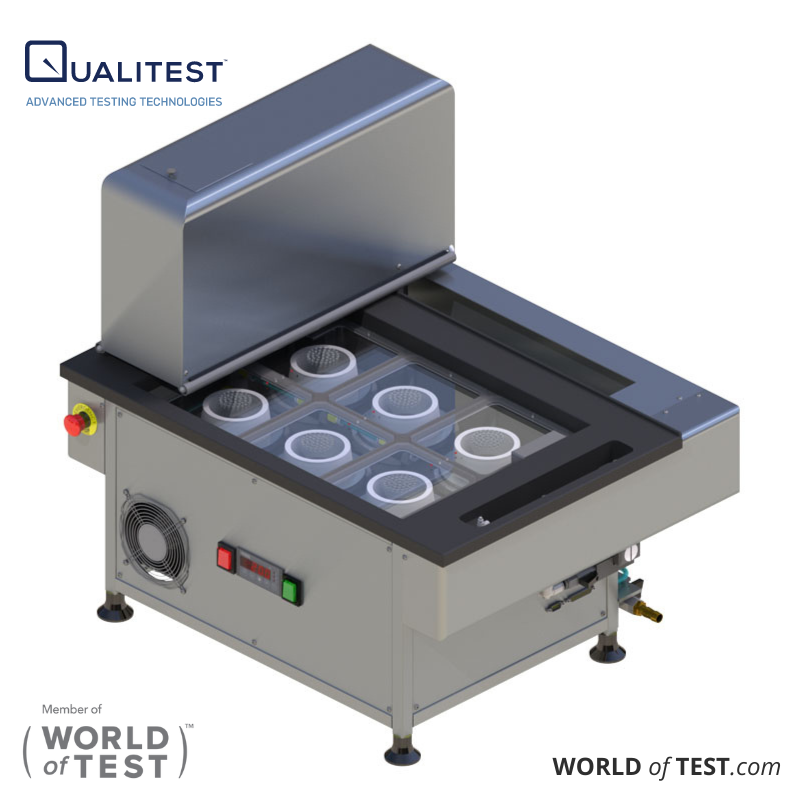

AutoVicat-366-EN-ASTM 6-Station Automatic Vicat Needle Apparatus (Combo EN-ASTM Model)

AutoVicat-366-EN-ASTM 6-Station Automatic Vicat Needle Apparatus (Combo EN-ASTM Model)
Parent Product
Automatic Vicat Needle Apparatus – Multi Station PC-Controlled for Cement & Gypsum
Standards
ASTM C191
EN 196-3
EN 480-2
View PDF

The AutoVicat-366-EN-ASTM 6-Station Automatic Vicat Needle Apparatus, a versatile combo model designed for efficient testing according to EN and ASTM standards. This advanced system includes a base unit with programmable test sequences and data recording capabilities, along with six stations equipped with Vicat molds, glass base plates, cleaning tools, spare parts, and essential accessories. Ideal for precise and reliable Vicat needle testing, this apparatus ensures accuracy and convenience in materials analysis.

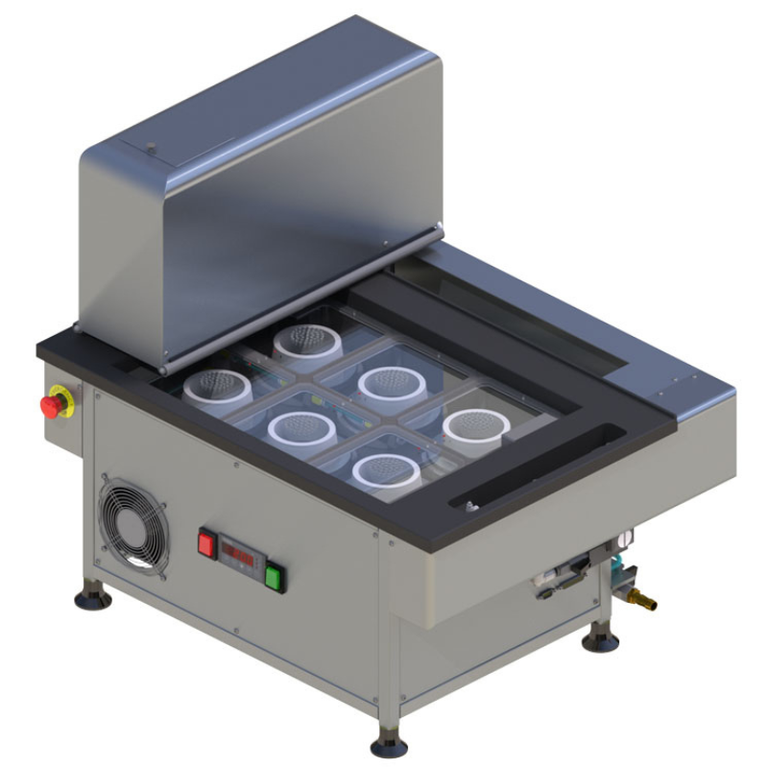

AutoVicat-366-EN-ASTM 6-Station Automatic Vicat Needle Apparatus (Combo EN-ASTM Model)

AutoVicat-366-EN-ASTM 6-Station Automatic Vicat Needle Apparatus (Combo EN-ASTM Model)

Universal version according to EN 196-3, EN 480-2, and ASTM C191 Method B. The six measuring points (2 x 3) are installed in a rectangular trough. Tests can be performed in air or in a water bath with constant temperature (heat exchanger and cooler for maintaining constant water temperature), with programmed test sequences according to EN. Tests must be performed in humid air (>95%) according to ASTM. The unit automatically records initial set time and final set time, as well as setting plots. The weight of the plunger and the Vicat needle is an additional 300 g ± 1 g. After each penetration, the Vicat needle is automatically cleaned.

AutoVicat-366-EN-ASTM 6-Station Automatic Vicat Needle Apparatus (Combo EN-ASTM Model) Technical Specifications:

Dimension (W x D x H)700 x 600 x 600 mm
Weight52 kg
Power Supply110 - 230 V / 50 - 60 Hz
Scope of delivery
  • The Base unit is designed as a table model with the control unit and standard software for programmable test sequences and data recording
  • 6 Vicat molds (conical hard plastic rings) 70/80 diameter x 40 mm (EN)
  • 6 Vicat molds (conical hard plastic rings) 60/70 diameter x 40 mm (ASTM)
  • 6 glass base plates, 120 mm diameter
  • 6 centerings for Vicat molds (conical hard plastic rings) 70/80 diameter x 40 mm (EN)
  • 6 centerings for Vicat molds (conical hard plastic rings) 60/70 diameter x 40 mm (ASTM)
  • 1 pair of cleaning brushes
  • 1 tee wrench, 1.25 mm
  • 1 tee wrench, 2 mm
  • 2 spare glass plates, 120 mm diameter
  • 2 spare initial-set needles, 1.13 mm diameter (EN)
  • 3 spare initial-set needles, 1.0 mm diameter (ASTM)
  • Coarse filter sponge
  • Fine filter sponge
  • Serial cable
  • Frame for cover plate
  • 6 x Cover plates for the generation of moist air (ASTM)
  • Hermetic stopper (ASTM)
  • Mud stop sponge (ASTM)
  • Decrease set hose (ASTM)
  • Humidity sensor cover (ASTM)
  • USB/RS232 Adapter
  • Main cable
