Battery Burning Tester

Battery Burning Tester
Parent Product
Battery Safety Test Chamber
Standards
UL 1642

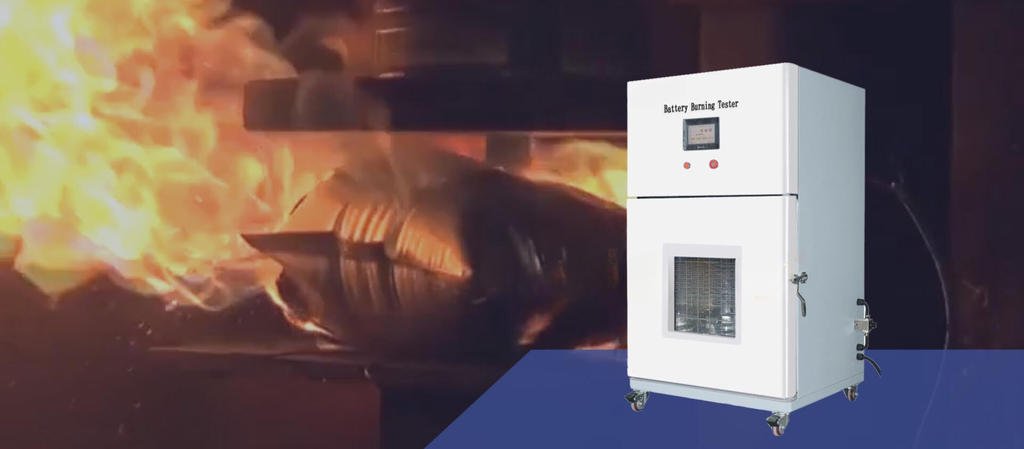

Battery Burning Tester is designed to evaluate the flame resistance and flammability of diverse consumer batteries, specifically those used in mobile phones and notebook computers. This testing device is characterized by its user-friendly operation, ensuring safety and reliability in assessing product quality. The testing conforms to the UL 1642 standard, a recognized benchmark for safety testing of lithium batteries.

Battery Burning Tester Application

Battery Burning Tester

This battery burn tester is suitable for testing the flame resistance and flammability of various consumer batteries (for mobile phones and notebook computers). Easy to operate, safe, and reliable in quality.

Test Standards:

  • UL 1642
Battery Burning Tester

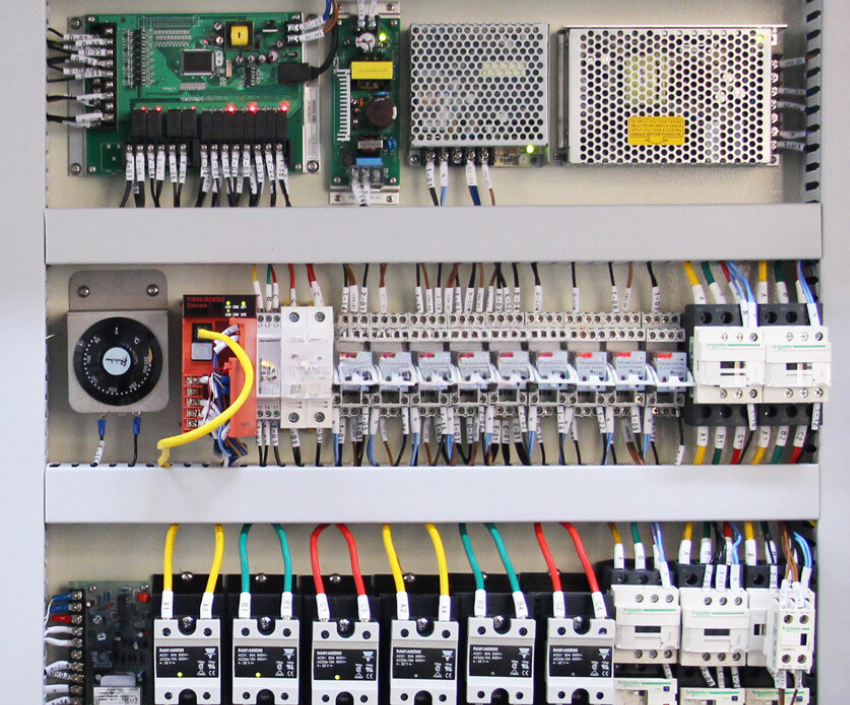

Battery Burning Tester Electrical System:

  • Neat and Professional Layout:
    • The overall design of the circuit cabinet is tidy and professional.
  • Adherence to UK Standards:
    • Circuits are arranged in accordance with UK standards.
    • Complete circuit diagrams accompany the setup.
  • Clear Identification for Troubleshooting:
    • Each line is assigned a unique code for easy troubleshooting.
  • Quality Electrical Components:
    • Utilizing components from globally renowned brands:
      • Schneider from France
      • Carlo Gavazzi from Switzerland
      • Mitsubishi from Japan
      • Rainbow from Korea.
Battery Burning Tester



Battery Burning Tester



ModelSM-8005
StructureAll-in-one structure, the door uses explosion-proof lock and explosion-proof chain
BurnerBunsen burner with inner diameter of 0.375 inch (9.5mm) and length approx. 100mm
Flame Application Time99H 59M 59S
Flame Height10～75±2mm (Adjustable）
Test Rod Diameter1/4inch (6.35mm）× 14inch (355.6mm)
Test CoverOctagon shape stainless steel mesh enclosure distance between each parallel sides: 24 inches (610mm); Height: 14 inches (305mm); Angle iron : spec. 12.7mm x 12.7mm
Mesh Top Cover SquareShape with length approx. 650mm
Test Aluminum Mesh Specification0.010inch (0.25mm) 16 grit x16 grit
Test Round Hole Surface Diameter102mm
Ignition DeviceAutomatic ignition

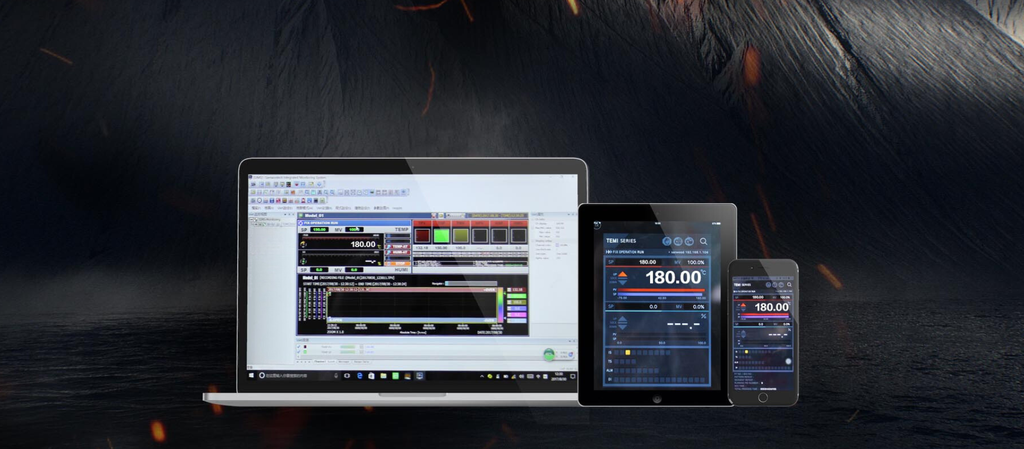

Display ModePLC touch + remote control
Observation window390x360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh)
Control MethodRemote control, automatic control through the entire test
Combustion Gas RequirementsHigh purity liquefied petroleum gas (prepared by user)
Data OutputTest data can be output by USB flash disk directly
Safety ProtectionExplosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
OptionsTemperature acquisition system, voltage acquisition system, video monitoring system， fire extinguishing system
