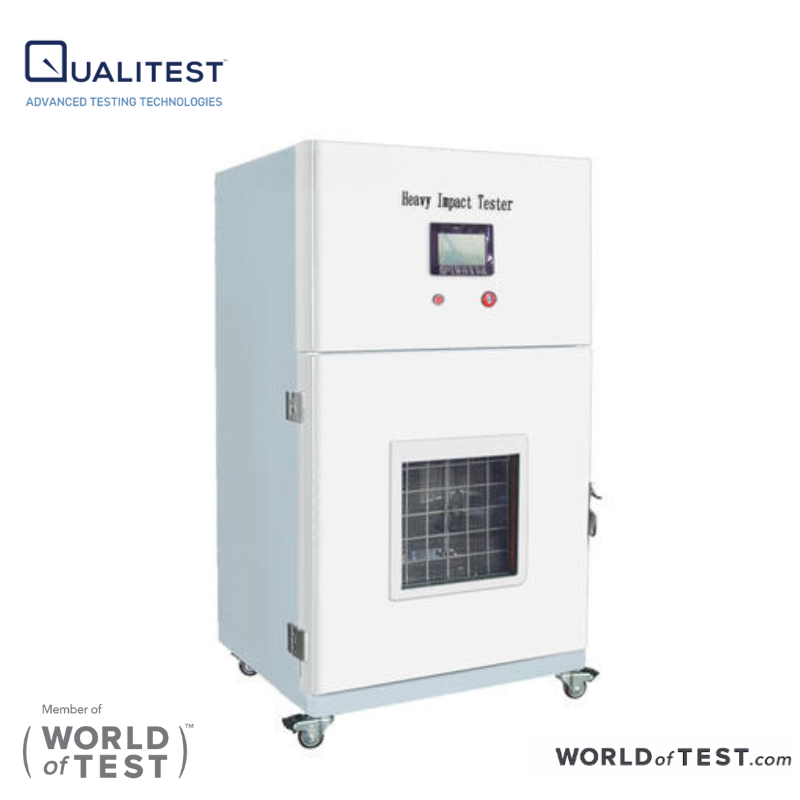

Battery Heavy Impact Tester

Battery Heavy Impact Tester
Parent Product
Battery Safety Test Chamber
Standards
UL 1642
UN 38.3

Battery Heavy Impact Tester is designed to assess the safety of batteries by subjecting them to various weights, heights, and impact areas. The testing process ensures that the batteries, after undergoing a series of trials, do not produce flames or explosions. The product conforms to industry standards such as UL 1642 and UN 38.3.



Battery Heavy Impact Tester Application

Battery Heavy Impact Tester

This battery impact tester assesses the safety of the battery using various weights, different heights, and diverse impact areas. Following a series of tests on this battery impact tester, the battery must not exhibit flames or explosions.

Test Standards:

  • UL 1642
  • UN 38.3
Battery Heavy Impact Tester



Battery Heavy Impact Tester Electrical System Overview:

  • Organized Circuit Cabinet Layout:
    • Meticulously arranged for a professional presentation.
  • Adherence to UK Standards:
    • Circuits are designed in compliance with UK electrical standards.
  • Detailed Circuit Diagrams:
    • Comprehensive diagrams accompany each circuit for clarity.
  • Distinct Code Assignment:
    • Every line is uniquely coded, simplifying troubleshooting.
  • Global Brand Components:
    • Utilizing electrical components from renowned brands:
      • Schneider (France)
      • Carlo Gavazzi (Switzerland)
      • Mitsubishi (Japan)
      • Rainbow (Korea)
  • Quality Assurance:
    • Ensuring the integration of high-quality components in our system.
Battery Heavy Impact Tester



Battery Heavy Impact Tester



ModelSM-8003
StructureAll-in-one structure, the door uses explosion-proof lock and explosion-proof chain
Drop Ball Weight9.1kg±0.1kg
Dropping Heigh0~770mm (Adjustable)
Control ModePLC touch screen control+ remote control
Crossing Bar Diameter15.8 mm
Inner Cabinet DimensionW500 x D300 x H800mm
Effective Test SpaceW300 x D300 x H300mm
Internal Material1.0mm thickness SUS 304# Stainless steel (reinforced). Total 80mm thickness together with external chamber.
External Material1.5mm thickness cold-rolled plate
Air VentDiameter150mm, at the top of chamber back
Observation Window390 x 360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh)
Lifting ModeElectric
Top / Bottom Impact SurfaceSteel plate
Test SpaceW300 x D400 x H200 mm
Overall DimensionsW940 x D780 x H1620 mm
Power SupplyAC 220V / 2.0KW
Data OutputTest data can be output by USB flash disk directly
Safety ProtectionExplosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
OptionsTemperature acquisition system, voltage acquisition system, video monitoring system
