UN 38.3 / IEC 62133-2017 / UL 1642 Compliant Lithium-Battery Abuse Testing Solutions

Battery Safety Test Chambers are specialized testing instruments that evaluate the safety, reliability, and abuse-tolerance of lithium cells, battery packs, and energy-storage systems under the controlled-abuse scenarios specified by international transport, product-safety, and regulatory standards. As lithium-ion technology has rapidly become the dominant energy-storage chemistry across consumer electronics, electric vehicles, grid-scale energy storage, aerospace, and defense applications, battery-safety testing has emerged as one of the most safety-critical analytical disciplines in modern manufacturing.

A lithium cell that thermally runs away, ignites, ruptures, or explodes during use, transport, or charging represents a catastrophic failure: causing aircraft groundings, electric-vehicle fires, consumer-product recalls, regulatory penalties, and tragic injuries. By systematically subjecting cells and batteries to crush forces, impact loads, internal short-circuit faults, free-fall drops, and direct combustion exposure under controlled laboratory conditions, modern battery safety test chambers transform abstract battery-safety risk into measurable, defensible, regulator-compliant qualification data.

Qualitest offers a comprehensive Battery Safety Test Chamber portfolio purpose-built for the most demanding lithium-battery qualification programs worldwide. Battery safety test chamber can be utilized for safety testing and should adhere to the UN recommendations on hazardous materials necessary for the transportation of lithium-ion batteries.

types of battery safety tests

Applications in Industries

Electric Vehicle (EV) Battery Manufacturing — UN 38.3 transport qualification, IEC 62133-2017 safety testing, and abuse-tolerance verification of cells, modules, and complete battery packs for passenger EVs, electric buses, electric trucks, and electric two-wheelers.
Consumer Electronics — UL 1642 flammability + IEC 62133 forced-internal-short-circuit testing of mobile-phone batteries, notebook-computer cells, tablet batteries, wearables, smartwatches, and Bluetooth-audio products.
Energy-Storage Systems (ESS) — Grid-scale battery storage qualification, residential ESS unit testing, commercial-and-industrial battery-bank safety, and renewable-energy battery-storage abuse-tolerance verification.
Aerospace & Defense — UN 38.3 transport testing of aerospace lithium batteries, defense-equipment power systems, satellite battery qualification, and military-grade portable-electronics battery certification.
Medical Devices & Healthcare — Implantable-device battery safety, portable medical-equipment battery qualification, surgical-device power-source testing per IEC 60601 + IEC 62133 frameworks.
Power Tools & Industrial Equipment — Cordless power-tool battery packs, professional-grade industrial-equipment batteries, and outdoor commercial-equipment battery qualification per UL 1642 and UN 38.3.
Lithium Cell & Battery Manufacturers — Primary cell producers, secondary lithium-ion manufacturers, polymer-cell pouch makers, and cylindrical-cell producers needing in-line abuse-testing for market access.
Logistics, Shipping & Transport — Air-cargo carrier compliance, IATA Dangerous Goods Regulations support, sea-freight battery-shipment qualification, and customs/border-control battery-safety verification.
Regulatory & Third-Party Test Labs — Accredited certification bodies, government testing laboratories, and contract test houses supporting global UN 38.3, IEC 62133, and UL 1642 qualification programs.
Universities & R&D Institutions — Battery chemistry research, next-generation cell development (solid-state, sodium-ion, lithium-sulfur), thermal-runaway fundamental research, and graduate-level battery-engineering training.

Product Comparison Table

Tester	Key Specifications & Features	Best Suited For
Battery Drop Tester	Drop-impact performance evaluation of large, heavy-duty battery-pack packaging; simulates surface, edge, and corner impact differences; assesses anti-drop ability during transportation, loading, unloading; enhances packaging design per IEC 62133-2017; professional circuit cabinet per UK electrical standards	Battery-pack manufacturers, EV battery suppliers, energy-storage producers verifying packaging-design integrity and drop-impact resistance for transit & logistics
Battery Internal Short Circuit Tester	Specialized device evaluating safety of portable sealed secondary lithium cells/batteries; conforms to IEC 62133-2017; simulates controlled internal short circuits; assesses mechanical, electrical, thermal, environmental aspects of battery safety; precise measurement; comprehensive reporting	Lithium cell & battery manufacturers needing IEC 62133-2017 forced internal short-circuit compliance for portable electronics, France/Japan/Korea/Switzerland market access
Battery Burning Tester	Evaluates flame resistance and flammability of consumer batteries — particularly those found in mobile phones and notebook computers; designed for ease of use & reliability; meets UL 1642 standard for lithium-battery safety testing	Consumer-electronics battery manufacturers (mobile phones, notebook computers, wearables) needing UL 1642 flame-resistance qualification for North American market
Battery Heavy Impact Tester	Assesses battery safety through varying weights, heights, and impact areas; verifies no flame or explosion after series of impact trials; conforms to UL 1642 and UN 38.3; meticulously arranged professional presentation; circuits per UK electrical standards	Battery-pack assemblers, automotive OEMs, energy-storage producers needing impact-abuse qualification per UN 38.3 transport safety and UL 1642 product safety
Battery Crush Test Chamber	Specialized testing apparatus replicating crushing conditions; displays comminution results; explosion-proof pressure relief device + smoke exhaust device + explosion-proof chain; versatile testing by force, deformation, voltage, or combination; customizable crush jig (semi-cylinder, hemisphere); IEC 62133-2017, UL 1642, UN 38.3	Standalone crush-test labs needing explosion-proof safety infrastructure for cell & module abuse testing with versatile force/deformation/voltage test modes

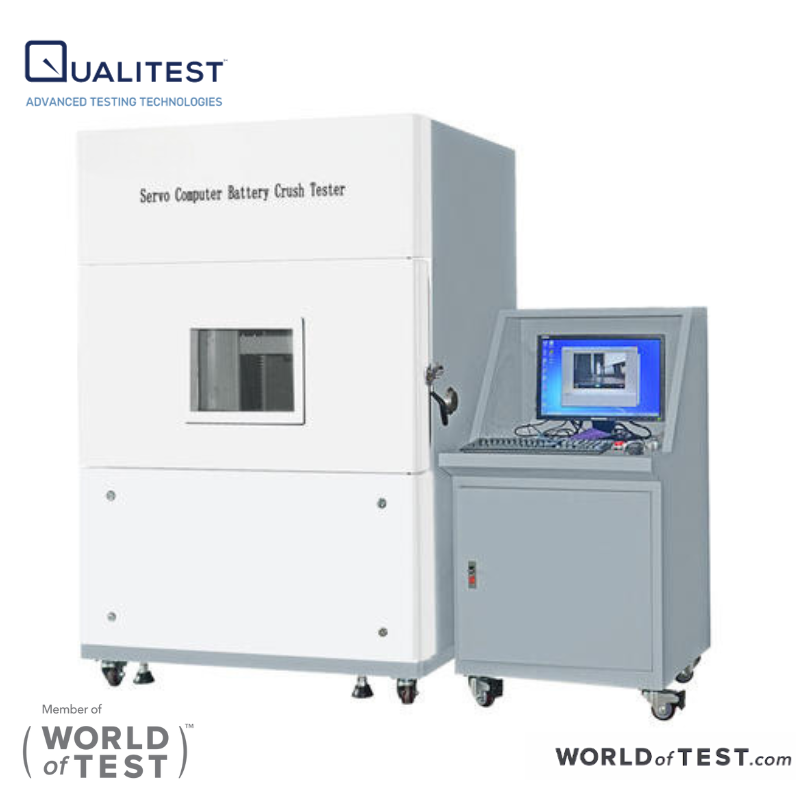

Servo Computer Battery Crush Tester	Battery safety tester for compressive-force environments; simulates real-world battery compression during usage; servo-controlled crushing for precise repeatable force application; conforms to IEC 62133-2017, UL 1642, and UN 38.3 — full compliance with rigorous industry battery-safety benchmarks	Automated high-throughput cell crush testing per UN 38.3 13±1 kN hydraulic-ram requirement and IEC 62133 graded-crush protocols up to 13 kN for prismatic/pouch/coin cells

Why Choose Qualitest for Your Battery Safety Testing Needs

Qualitest is a globally recognized supplier of advanced battery safety testing instruments, serving customers worldwide with one of the most comprehensive battery-abuse testing portfolios available — purpose-built for the rigorous transport, product-safety, and regulatory-compliance demands of modern lithium-battery operations.

Six-Tester Portfolio — One Trusted Source

From the Battery Drop Tester for packaging qualification, through the Battery Internal Short Circuit Tester for IEC 62133 forced-internal-short, the Battery Burning Tester for UL 1642 flame resistance, the Battery Heavy Impact Tester for variable impact abuse, the Battery Crush Test Chamber with full explosion-proof safety infrastructure, to the flagship Servo Computer Battery Crush Tester for precision servo-controlled compression — Qualitest offers a coordinated portfolio that covers every battery-abuse test method required by UN 38.3, IEC 62133-2017, and UL 1642.

Full Regulatory Compliance Coverage

Every Qualitest battery safety tester is engineered for full compliance with the world's three primary battery-safety regulatory frameworks — UN 38.3 (United Nations transport regulations), IEC 62133-2017 (international product safety, with EN 62133 / UL 62133 / CAN/CSA E62133 national variants), and UL 1642 (US lithium-battery safety standard). This ensures every test result is universally accepted, audit-ready, and defensible in transport-authority audits, regulatory submissions, and customer certification programs worldwide.

Explosion-Proof Safety Architecture

Battery abuse testing — particularly crush, impact, and internal-short-circuit testing — carries real risk of cell venting, fire, smoke release, and explosive rupture. The Battery Crush Test Chamber integrates an explosion-proof pressure relief device, a smoke exhaust system, and an explosion-proof chain to protect operators and laboratory infrastructure during the most aggressive abuse cycles. Operator safety is engineered in, not added on.

UK-Standards Electrical Compliance

Every Qualitest battery safety tester features a professionally arranged circuit cabinet built in accordance with UK electrical standards — ensuring electrical safety, regulatory compliance, and long-term reliability across multi-year service lives in busy battery-test laboratories. Neat, professional, audit-ready layout that supports rather than complicates inspection visits.

Versatile Multi-Mode Testing

The Battery Crush Test Chamber executes tests based on force, deformation, voltage, or any combination — providing the flexibility required by diverse cell chemistries, form factors (cylindrical, prismatic, pouch, coin), and customer-specific qualification protocols. Combined with customizable crush jigs (semi-cylinder, hemisphere) and the servo-controlled precision of the Servo Computer Battery Crush Tester, Qualitest covers virtually every battery-crush testing requirement in the global standards landscape.

Comprehensive Reporting & Data Integrity

Every Qualitest battery safety tester delivers precise measurement, adherence to safety guidelines, and comprehensive reporting features that contribute to the production of safe and reliable lithium cells and batteries. Test results are documented in regulatory-grade reports supporting UN 38.3 dossiers, IEC 62133 test summaries, UL 1642 reports, and customer-specific certification submissions.

Cost-Effective Value & Global Support

Qualitest delivers premium battery-safety testing performance at a transparent, competitive price point — backed by global service, training, calibration support, and stocked spare parts worldwide. With offices and authorized partners across the world, expert installation, operator training, and ongoing battery-laboratory commissioning are always within reach.

Test Every Cell. Protect Every Application.

In every modern industry where lithium batteries power our products — electric vehicles, mobile devices, energy storage, aerospace, medical equipment, defense systems, and consumer electronics — the battery safety test chamber is the silent gatekeeper of public safety, regulatory compliance, and brand integrity. A battery that fails its crush test will fail catastrophically in a car accident; a cell that fails internal short-circuit testing will fail in a customer's hand; a battery pack that fails its drop test will fail somewhere in the global air-cargo system

The lithium-battery manufacturers, EV producers, energy-storage companies, consumer-electronics brands, and contract test laboratories who consistently deliver safe, regulator-compliant, customer-trusted battery products are the ones equipped with battery safety test chambers built for precision, full UN 38.3 / IEC 62133 / UL 1642 compliance, and explosion-proof operator protection — and the Qualitest battery safety tester portfolio gives you exactly that.

Whether you are certifying lithium cells for IATA air-cargo shipping, qualifying EV battery packs for OEM platform release, supporting consumer-electronics-battery UL 1642 certification, building a new contract battery-safety test laboratory, or running fundamental research into next-generation battery chemistries, Qualitest has the battery safety testing platform engineered to meet your exact needs. From the Battery Drop Tester to the precision Servo Computer Battery Crush Tester, every Qualitest battery safety tester delivers world-class abuse-testing performance backed by industry-leading service and support.

Thermal Runaway Containment and Atmospheric Control

The fundamental methodology behind a Battery Safety Test Chamber revolves around absolute physical isolation and highly controlled atmospheric management. During a severe thermal runaway incident, which occurs when tightly packed energy cells chemically fall apart at terrifyingly fast speeds, the battery pack violently spits out massive heat waves, aggressively sudden pressure spikes, and an alarming amount of highly poisonous fumes.

To completely manage this violently unpredictable energy release, the structural theory relies on remarkably heavy-gauge, thoroughly gas-sealed stainless steel panels specifically built to withstand explosive, violently fast expansion without losing a single ounce of structural integrity. By integrating automated air-venting systems, deep-cleaning chemical scrubbers, and heavy inert-gas sweeps, this methodology locks those incredibly dangerous emissions completely away from your operational team.

Testing crews can even swap out regular, everyday oxygen for pure nitrogen right inside the enclosure. This remarkably clever atmospheric trick lets engineers draw a clear, undeniable line between how a battery burns when it is totally starved for air versus when it has a completely open, free-flowing breeze.

Containment and Diagnostic Specifications

Protective Engineering Focus	Real-World Hardware Implementation
Locking Down Fires & Aggressive Pressure	Using remarkably heavy-gauge steel panels specifically designed to withstand explosive, violently fast expansion without compromising structural integrity.
Safe, Unobstructed Visual Access	Installing deeply reinforced, double-layer safety glass and specialized materials that let highly penetrating X-rays pass directly through to the internal battery states.
Sniffing Out Highly Toxic Emissions	Hooking up continuous sampling ports directly to deep-cleaning scrubbers and extremely sensitive analysis tools to capture and accurately identify vented gases.

Abuse Testing Methodologies

To pull incredibly precise, deeply valuable performance facts from a Battery Safety Test Chamber, technicians have to force a complete, undeniable failure using highly regulated, heavily documented techniques. Re-creating these severe, real-world operational disasters is absolutely mandatory for hitting strict international safety benchmarks. The scientific approach to these destructive evaluations breaks down into highly specific, hardware-driven physical triggers.

Mechanical Abuse Testing

Physical damage undeniably kicks off the absolute nastiest short circuits by severely deforming the internal cell architecture. For incredibly large, heavily built packaging, the testing methodology utilizes a highly precise Battery Drop Tester to accurately mimic those awful, real-world edge-and-surface pavement hits.

For intensely focused compressive force, a Servo Computer Battery Crush Tester or a completely sealed Battery Crush Test Chamber slowly and mechanically squeezes the pack to record the exact, critical moment of structural failure. Additionally, a Battery Heavy Impact Tester aggressively slams intensely solid weights from various high-up drop zones straight into the cell to gauge its absolute physical survival limits.

Thermal Abuse Testing

Forcing an external thermal crisis heavily tests the completely integrated cooling and emergency venting responses. A specialized Battery Burning Tester gets right to the terrifying point, objectively judging the exact flame resistance levels and absolute flammability limits of consumer-grade mobile batteries by applying direct, highly concentrated heat.

Electrical Abuse Testing

Instead of just jabbing a painfully sharp metal nail into the side, the methodology behind an advanced Battery Internal Short Circuit Tester focuses heavily on portable sealed secondary lithium cells by forcing an internal short in a highly natural, electrically induced way.

Multi-Physics Diagnostics and Real-Time Measurement

Capturing a massive mountain of detailed, highly actionable numbers is the entire scientific point of these aggressively destructive evaluations. The core measurement theory involves hooking up multiple high-tech sensor arrays inside one heavily protected Battery Safety Test Chamber, letting your dedicated engineering team track absolutely everything at the exact same time. These exceptionally advanced data-gathering setups perfectly synchronize ultra-fast visual cameras, deep-penetrating X-ray feeds, highly sensitive heat trackers, and wildly responsive pressure dials.

This highly synchronized diagnostic approach fully reveals the internal physical skeleton aggressively melting down, maps out exterior hot-spots soaring past a terrifying 700°C, and thoroughly breaks down the exact chemical mixture of escaping gases.

Locking the highly secure test chamber down completely tight highlights exactly how much explosive pressure violently piles up without fresh air. Flipping over to an open-exhaust configuration lets the testing team accurately judge real-world, highly aggressive flame spread under completely normal, everyday atmospheric conditions.
