The Scientific Logic of Airborne Grit Simulation

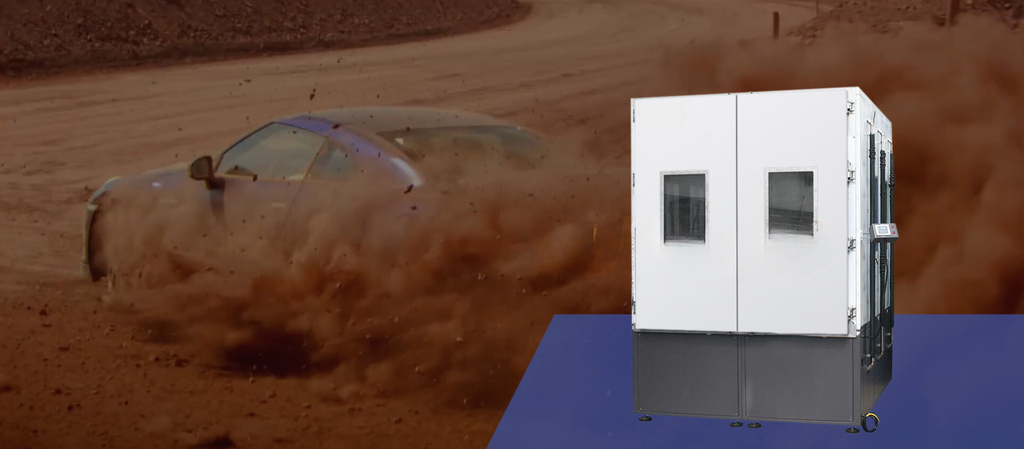

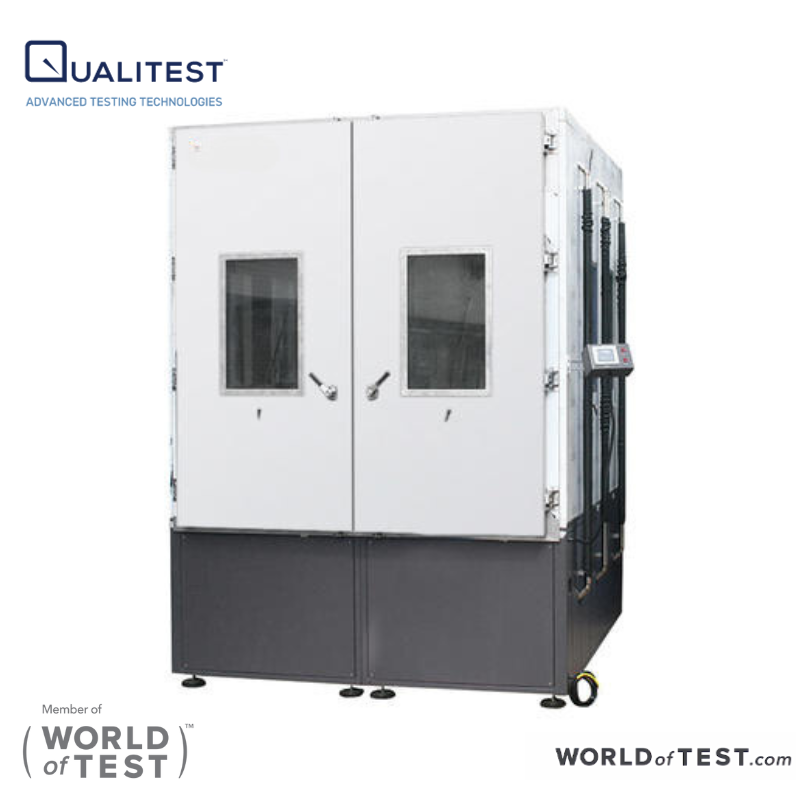

The SM-SC-12m³ Battery Sand Dust Test Chamber relies on the exact science of enclosed particle suspension to recreate unpredictable outdoor deserts with absolute scientific consistency. Rather than leaving environmental variables to chance, this sealed-off unit, which features an outer casing of tough galvanized steel and an inner lining of premium SUS#304 stainless steel, dictates exactly how the floating dirt behaves through specific control parameters:
- Precise Environmental Limits: The system forces internal temperatures from standard room conditions up to a sweltering +80°C while keeping air moisture strictly below 85% R.H. to ensure the test stays completely dry.
- Targeted Grit-Blasting Logic: The methodology relies on pushing a continuous, mathematically measured barrage of completely moisture-free talc powder and inorganic mineral sand (containing actual silica and ferric oxide) against the test sample.
- IP Validation Goals: This testing strategy forces heavily reinforced energy-storage casings to prove they meet IP5X or IP6X validation targets, physically confirming that not a single speck of fine powder can sneak inside to cause a costly electrical short.
The Fluid Dynamics Behind the Dust Storm
Generating a believable desert gale inside a metal cabinet demands highly intelligent air-circulation engineering and incredibly stable flow management. To generate a realistic environmental assault, this testing equipment relies on specific physical components to automate and control the dust-blowing process:
Advanced Particle Dispersion Method
A dedicated circulating fan and an automated vibration jar push the grit through a fine 75-micron square hole mesh. This creates a thick, exceptionally believable cloud of suspended particles that mimics actual wind transport, hitting the battery sample at blowing speeds of 1 to 2 meters per second.
Uniform Aerodynamic Deposition

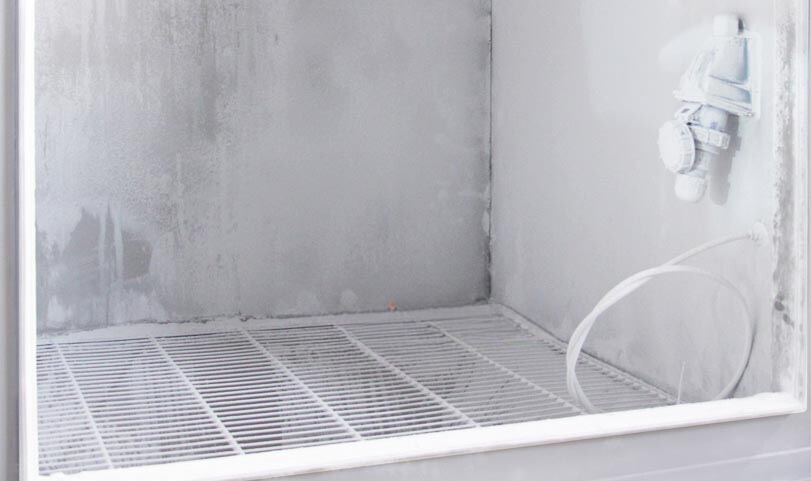

By fundamentally reshaping the internal air paths and utilizing a specially constructed funnel-shaped bottom, the machine scientifically manages the falling powder to guarantee incredibly uniform coverage across the entire surface of the battery setup.
Continuous Observational Monitoring
A highly accurate TAIAN time controller dictates the exact timing of the dust blowing and vibration cycles. Meanwhile, the large 5mm tempered glass observation window is outfitted with a built-in wiper and automated sand dust cleaner, allowing engineers to continuously monitor the physical deposition method as it happens.
