How do premier rail manufacturers ensure their high-speed passenger coaches and locomotives maintain a brilliant, mirror-smooth exterior finish under bright outdoor sunlight? For an international transport leader like Alstom, the answer lies in replacing subjective visual checks with laser-guided optical metrology.
Partnering with Qualitest for the Wave-Scan 3 Dual gave their production lines repeatable numerical standards, backed by responsive technical communication and budget-friendly equipment procurement.
Why Conventional 2D Glossmeters Fall Short
Traditional inspection in rail manufacturing typically combines standard 2D glossmeters with visual comparison cards graded on a 1-to-10 scale.
While a 2D glossmeter confirms light reflection, it is completely blind to surface waviness, meaning a panel can score a high gloss rating while still displaying severe orange peel under sunlight. At the same time, visual plaques depend on human eyes, which naturally fluctuate with inspector fatigue, shift changes, and factory lighting angles.
Evaluating varied vehicle profiles compounds the issue. Quality teams must verify high-gloss liveries alongside semi-gloss protective coats (dullness du below 65), covering flat sidewalls and curved aerodynamic cabs (radius greater than 50 cm, minimum test size 35 mm by 150 mm).
Crucially, simple gloss numbers cannot break down surface ripples into specific wavelength bands, leaving technicians without the diagnostic data needed to correct paint viscosity, spray pressure, or bake oven temperatures upstream.
The Solution: Wave-Scan 3 Dual Laser Metrology
At Qualitest, we believe enterprise-tier measurement precision should be accessible directly on the factory floor without excessive capital equipment markups. Throughout the procurement process, our technical specialists provided clear, responsive communication to ensure the hardware and software configuration matched the specific requirements of the production facility.

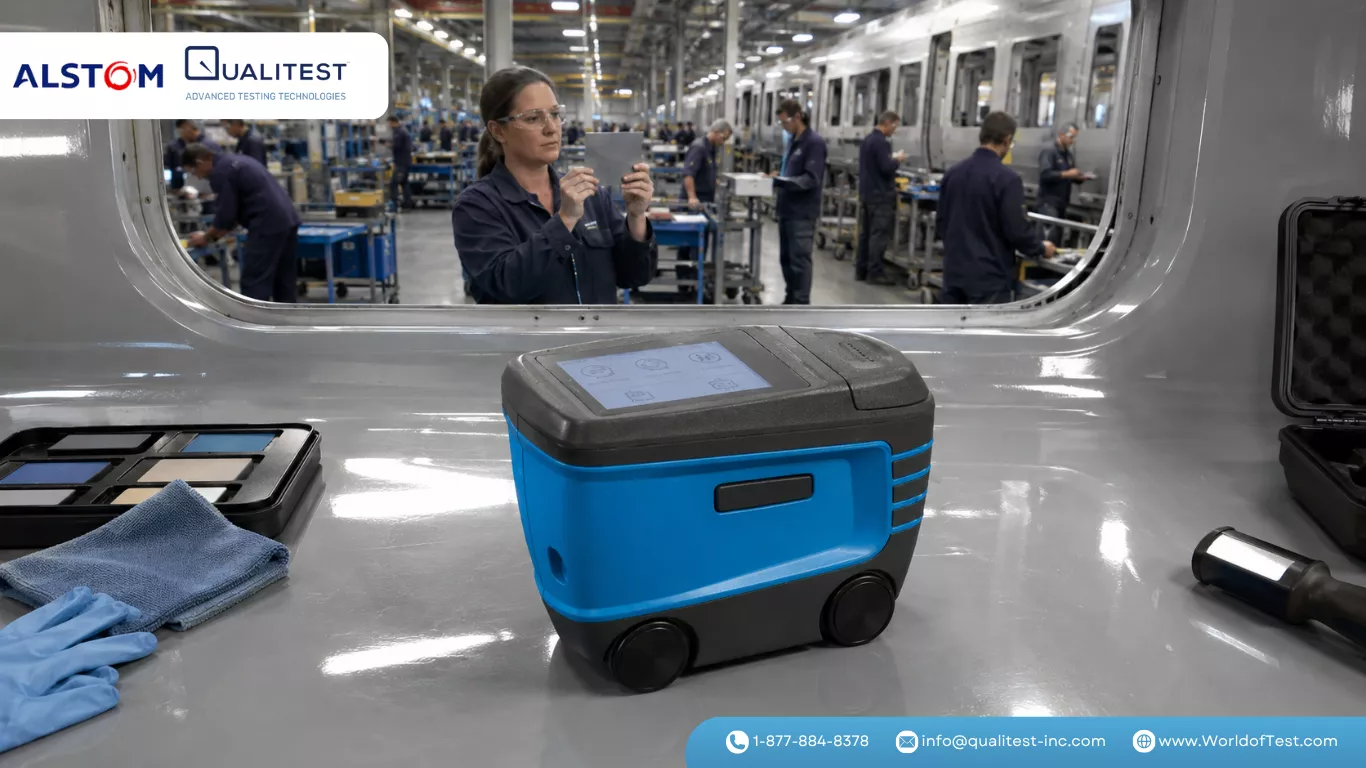

We supplied Alstom with the Wave-Scan 3 Dual Orange Peel DOI Meter, an optical metrology system from the Orange Peel Meter Wave-Scan instrument family.
Multi-Band Structure Spectrum Analysis
The Wave-Scan 3 Dual utilizes an optical scanning assembly that integrates a Class 1 laser diode (under 390 microwatts), a high-output LED, and an infrared SLED. As the optical sensor moves across the painted surface, it records high-density profile data at 375 points per centimeter across operator-selected scan lengths of 5 cm, 10 cm, or 20 cm.
The system divides the optical profile into two diagnostic levels:
- Micro-Structure Analysis: The du band (under 0.1 mm) tracks micro-dullness and surface haze, while the Wa band (0.1 to 0.3 mm) and Wb band (0.3 to 1.0 mm) evaluate short-wave paint flow. This enables technicians to identify atomization or spray pressure issues immediately.
- Macro-Structure Analysis: The Wc band (1.0 to 3.0 mm), Wd band (3.0 to 10.0 mm), and We band (10.0 to 30.0 mm) quantify medium-to-long leveling waves and visible orange peel.
By combining these structure spectrums with classical Long Wave (LW) and Short Wave (SW) calculations, the instrument generates an exact Distinctness of Image (DOI) score that directly quantifies image clarity as seen by the human eye.
Production-Ready Hardware and Data Integration
We prioritize practical usability on the shop floor. Weighing 1.55 lbs (measuring 15 by 7 by 11 cm), the Wave-Scan 3 Dual features a 2.8-inch capacitive color touchscreen with responsive haptic vibration feedback and an icon-based menu available in eight languages.
The instrument maintains linear measurement across high-gloss coats down to semi-gloss surfaces where dullness (du) is less than 65 units. On surfaces with du below 40, repeatability holds at 4% (or greater than 0.4) and reproducibility at 6% (or greater than 0.6). For surfaces with du above 40, repeatability is 6% (or greater than 0.6) and reproducibility is 8% (or greater than 0.8).
An internal rechargeable Li-Ion battery pack delivers up to 1,000 readings per charge, supported by onboard storage for 10,000 readings across 1,000 test series. After completing an inspection route, operators place the device onto its desktop docking station to recharge and transfer data to a PC via USB or optional WiFi. The included smart-chart software automatically generates statistical process control (SPC) reports, trend charts, and quality documentation.
Operational Impact and Manufacturing ROI
Integrating the Wave-Scan 3 Dual into daily inspection routines delivered clear operational advantages:
Cross-Shift Standardization
Quality decisions are governed by verified numerical limits for Long Waves (LW), Short Waves (SW), and DOI. Setting hard numerical thresholds eliminates subjective pass/fail disagreements between different production shifts and replaces inconsistent visual rating plaques with repeatable metrics.
Rapid Upstream Diagnostics
Because the device isolates short-wave ripples from broad surface waviness, technicians can pinpoint the mechanical origin of a finish issue right away. If short waves drift, operators adjust spray application pressure and paint atomization; if long waves drift, they adjust bake temperatures and material leveling.
Scrap and Rework Reduction
Identifying micro-texture drifts early in the application cycle allows operators to make fine process adjustments before large vehicle sections drift out of specification, preventing costly paint stripping and labor-intensive repainting across massive vehicle bodies.
Capital Efficiency and Responsive Support
By procuring through Qualitest, Alstom obtained tier-one metrology capabilities at a cost-effective price point. Our direct, responsive customer communication ensured smooth technical onboarding, helping quality managers achieve their performance goals while keeping capital expenditure disciplined.
Technical and Operational Comparison
| Parameter | Conventional 2D Gloss & Visual Plaques | With Qualitest Wave-Scan 3 Dual |
|---|
| Inspection Method | 2D light reflection meter and visual reference cards | Laser-guided optical scanning (375 points/cm) |
| Waviness Detection | Blind to surface ripples and orange peel | Scans 5 structure spectrum bands (du, Wa through We) |
| Output Format | Basic gloss units and subjective visual score | Full numerical spectrum (LW, SW, DOI, dullness) |
| Root-Cause Tracing | Trial-and-error manual adjustments | Targeted diagnosis via specific wavelength bands |
| Finish Versatility | Inconsistent across varying gloss levels | Linear measurement across high to semi-gloss (du < 65) |
| Surface Geometry | Difficult to evaluate on curved profiles | Accommodates flat and curved surfaces (radius > 50 cm) |
| Data Management | Manual paper tracking | Docking station sync with smart-chart SPC software |
| Capital Efficiency | Low initial equipment cost, high rework risk | Cost-effective capital investment with rapid payback |
