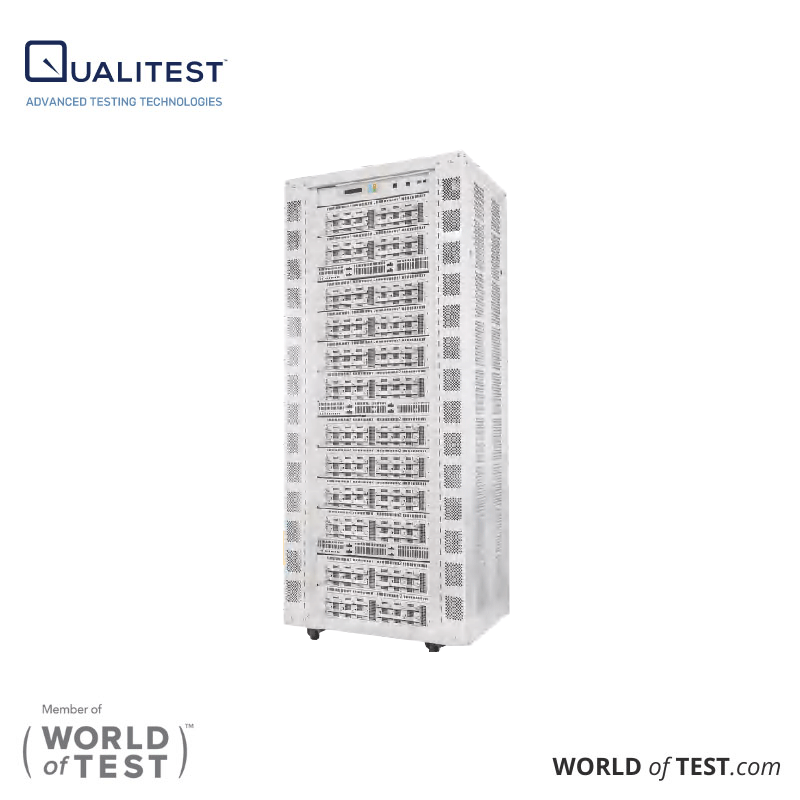

Battery Testing System (Regenerative) QBTE-4000
The Battery Testing System (Regenerative) QBTE-4000 features a 16-bit resolution for both analog-to-digital (AD) and digital-to-analog (DA) conversion, ensuring precise measurements. With an accuracy of 0.05% full scale (FS), it delivers highly reliable results. Its fast rise time of ≤ 20ms (for currents ranging from 10% to 90% FS) enhances efficiency in testing procedures. Offering a maximum output power of 10kVA, which is customizable by the user, it accommodates various testing requirements. With a data acquisition frequency of 10Hz, it captures data at a high rate for thorough analysis. The system maintains a total harmonic distortion (THD) of 5% and a power factor (PF) of ≥ 0.98, ensuring clean and efficient operation. It is ideal for bulk testing and mass production testing, performing tasks such as C-Rate testing, static capacity testing, and cycle life testing with precision and efficiency.
Applications
- Bulk Testing / Mass Production Testing
- C-Rate, Static Capacity, Cycle Life, etc.
