Friction and Interface Mechanics in Cap Sealing
Achieving the correct tightness on a container closure is a continuous, critical balancing act. You need a barrier that is absolutely leak-proof and completely air-tight so the contents stay perfectly fresh, yet it still needs to be forgiving enough that the end-user can twist it off without undue physical struggle.
To prevent product loss during long shipping routes, quality assurance teams rely heavily on offline benchtop testing to track how these materials behave under intense pressure. When observing these mechanical interactions, two massive factors dictate how successfully your packaging performs:
- The Squeezing and Friction Factor: The exact manual twisting force needed to remove a closure is mostly controlled by how aggressively the plastic liner presses against the glass or plastic finish, alongside the sliding resistance between those specific surfaces. On standard aluminum containers, the top seal, the twisty threads, and the bottom metal skirt split the load, taking up roughly 60%, 25%, and 15% of that initial stubborn grip, respectively. If your packaging setup uses highly compliant elastomeric liners that deform under heavy pressure, the overall twist behavior gets significantly more unpredictable.
- How Passing Time and Environmental Shifts Affect the Seal: The gripping strength of a lid is almost never a set-it-and-forget-it number. It can decay (or tighten up significantly) as days go by, depending on wild temperature swings, materials getting old, or the product inside (like sticky, high-adhesion syrups that can practically weld the cap shut). Because storage duration can completely warp how continuous thread closures behave over time, repeatedly checking them with a highly dependable, precision-calibrated system like the Bottle Cap Torque Tester QualiTorque™ 200 is a mandatory quality control step to keep your shipping boxes totally dry and intact.
Application vs. Removal Torque Methodology
Tracking both the rotational force applied during the factory sealing process and the physical effort required to open a sealed container is absolutely essential for verifying that liquids do not spill during cross-country transit. The laboratory testing routine splits right down the middle into two very distinct phases to make sure your packaging functions exactly as expected.
Application Torque (Securing Force)
This is the mechanical rotational force that the automated capping machinery uses to secure the lid on the busy production line. Automated capping heads are programmed to hit a highly specific target, but to verify they are not slowly drifting off-target, QA teams must pull physical samples and verify them offline.
The QualiTorque™ 200 natively measures force in both clockwise and counterclockwise directions, ensuring your facility complies with strict industry regulations like ASTM D2063, ASTM D3198, and ASTM D3474 (hitting that classic 8 to 18 inch-pounds for carbonated beverages).
Removal Torque (Release Force)
This measures the exact physical twisting effort needed to break the seal and open the container. The testing protocol involves backing off caps at specified waiting periods, ranging from just a few minutes to an entire 30 days post-capping.
Displaying numerical data beautifully on a high-definition LCD screen, this methodical process allows quality control personnel to catch closures that might wiggle loose during transit or seize up completely before they reach the consumer's hands.
Digital vs. Mechanical Torque Measurement
Keeping packaging perfectly secure for items like flexible spout pouches, vacuum-insulated jars, or squeezable cosmetic tubes requires highly sensitive measurement instrumentation. Relying on digital laboratory platforms provides mathematically flawless data, marking a massive technological leap from older, manual methods:
- Moving Past Mechanical Spring Meters: Traditionally used for basic routine checks, manual spring tools are notoriously finicky. Different factory operators apply force at completely different speeds, leaving you with highly questionable, wildly variable numbers.

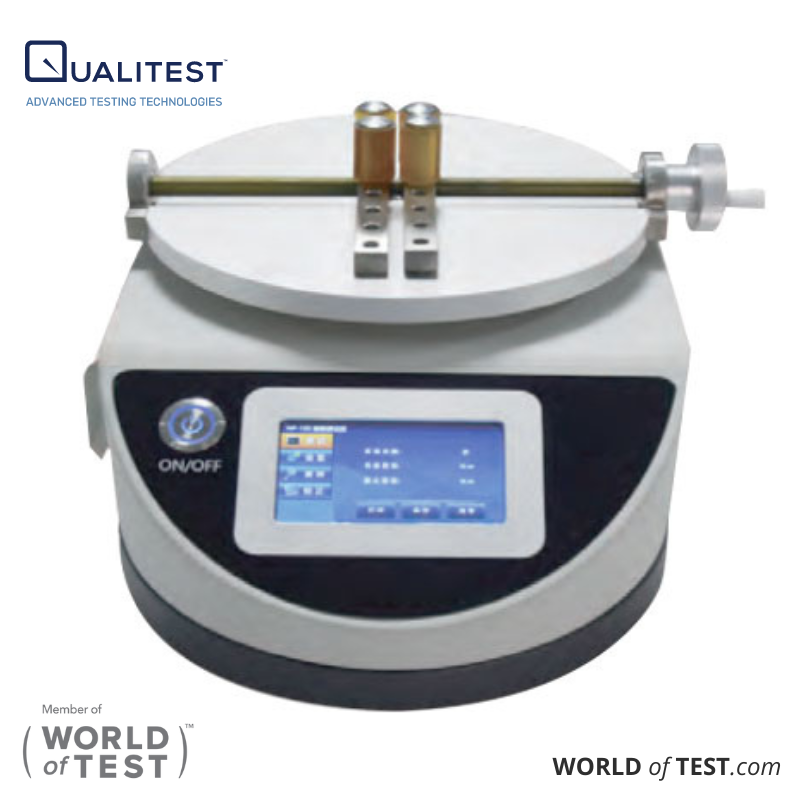

- The QualiTorque™ 200 Advantage: Modern production checks require absolute mathematical precision. Utilizing a high-end tester engineered with ultra-sensitive load cells (handling a 0 to 20 N·m test range with 0.5 grade accuracy and an exceptionally fine 0.001 N·m resolution) provides incredibly reliable benchtop tracking. Every inch of this testing phase is flawlessly executed, and there’s loads of versatility thanks to a wide clamping range of Φ5 to 230mm. It completely removes human operator variance and digitally logs three sets of torque units (lb.f·in, kgf·cm, N·m) so your reporting is sheer perfection.
Ergonomic Requirements and Child-Resistant Testing
Rotational testing protocols are deeply tied to actual human physical capabilities. How forcefully a person can twist depends entirely on age, gender, palm size, and the actual diameter of the cap. Naturally, larger caps and substantially stronger hands yield significantly higher twist readouts.
Designing those extremely tricky push-and-turn child-resistant medicine closures takes a massive amount of careful trial and error. Setting up specialized laboratory testing routines with a highly stable benchtop system like the QualiTorque™ 200 allows packaging engineers to track exactly how much physical effort a user is exerting. Utilizing its data management capabilities ensures you manufacture lids that keep curious toddlers out, yet remain comfortably easy for elderly users to open.
