Torque Tester

Theoretical Mechanics & The Torque-to-Preload Relationship

Threaded closure testing quantifies the physical transformation of applied rotational effort into direct downward clamping pressure. When a capping chuck rotates a closure, the helical thread action pulls the cap downward, compressing the internal sealing liner flat against the container finish to create a leak-free barrier.

                 Rotational Effort Applied to Cap (T)
                                  │
       ┌──────────────────────────┴──────────────────────────┐
       ▼                                                     ▼
 Friction Along Thread Flanks                     Compressing the Resilient Liner &
 & Helical Ramp Action                            Generating Downward Clamping Load
       │                                                     │
       └──────────────────────────┬──────────────────────────┘
                                  ▼
               Hermetic, Leak-Free, Long-Term Seal

This rotational input (T) distributes across three primary physical resistance zones:

T = T_{thread pitch} + T_{thread friction} + T_{liner friction}

Expressed through fundamental fastener mechanics:

T = F_a [ (p / 2π) + (μ_t · r_t / cos β) + (μ_l · r_l) ]

Where:

• F_a = Downward compressive preload locking the sealing surface shut
• p = Thread lead distance per full revolution
• r_t = Mean radius of the engaged thread contact area
• r_l = Mean radius of the sealing liner contact land
• μ_t = Coefficient of kinetic friction between cap and container neck threads
• μ_l = Coefficient of friction between the closure liner (such as EVA, plastisol, or EPE foam) and the container lip
• β = Thread flank half-angle

The QualiTorque™ Series measures these mechanical interactions bi-directionally across three selectable engineering units (lbf·in, kgf·cm, and N·m), capturing both Clockwise (CW / Locking Force Mode) and Counter-Clockwise (CCW / Opening Force Mode) values on bottles, nozzles, tubes, spouts, and cans.

Viscoelastic Relaxation & Torque Retention Testing (ASTM D2063)

A threaded closure exhibits its highest removal resistance immediately after application. Over the following 24 to 72 hours, recorded removal torque decays as polymeric liners undergo viscoelastic creep (molecular stress relaxation) under sustained compressive load.

Removal Resistance (lbf·in)
 ▲
 │  [Initial Application Level: 100%]
 │  █
 │  ██  Immediate Off-Line Opening Resistance (~80%)
 │  ███
 │  ████  Short-Term Viscoelastic Relaxation (1–24 Hours: ~60–70%)
 │  ████████████████  Stable Long-Term Plateau (30+ Days: ~45–55%)
 └────────────────────────────────────────────────────────────────────────► Storage Time (t)

Evaluating torque retention per ASTM D2063 follows a structured two-stage testing methodology:

1. Immediate Baseline Measurement: Taking initial off-line removal readings directly from the capping line using the portable, handheld QualiTorque™ 100 with its built-in LCD tracking.
2. Settled Retention Testing: Storing sample sets under controlled ambient conditions (23 ± 2°C, 50 ± 5% RH) for 24 hours, followed by benchtop removal testing on the QualiTorque™ 200, Auto-D1, or Auto-D2 to verify that residual seal integrity meets quality specifications.

Curve Analysis & Mechanical Failure Modes

A full torque-angle profile provides immediate diagnostic insight into thread geometry, material deformation, and capping consistency.

Torque
  ▲
  │                     [Peak Breakaway Torque]
  │                             /\
  │                            /  \   [Bridge-Breaking Spike]
  │                           /    \         /\
  │                          /      \_______/  \
  │                         /                   \________ [Running Torque Resistance]
  │                        /                              \________
  │                       /                                        \
──┴──────────────────────┴──────────────────────────────────────────┴────► Rotation Angle (θ)
                      (Breakaway)               (TE Band Separation)

• Peak Breakaway Torque: The maximum instantaneous rotational resistance required to overcome static friction between the liner, threads, and container neck finish.
• Bridge-Breaking Torque: The secondary peak generated when fracturing the molded retention bridges on a Tamper-Evident (TE) security ring. The QualiTorque™ Auto-D2 captures this rapid transition using high-speed 1,200 Hz data acquisition.
• Running Torque: Continuous kinetic frictional resistance as the cap unthreads along the neck finish, identifying thread interference or container neck ovality.
• Strip Torque (T_S): The upper failure limit where excessive clockwise application torque shears the plastic threads, causing the closure to spin freely. Capping chucks must operate safely below this threshold.

Sensor Transduction & Load Isolation Principles

QualiTorque™ instruments utilize reaction torque load cells wired in a four-arm Wheatstone bridge circuit:

V_out = V_in [ (ΔR₁ / R₁) - (ΔR₂ / R₂) + (ΔR₃ / R₃) - (ΔR₄ / R₄) ]

This configuration produces high linearity with measurement errors under ±0.1% Full Scale.

┌─────────────────────────┐      ┌──────────────────────────┐      ┌─────────────────────────┐
│ Applied Torque Vector   │ ───► │ Reaction Load Cell       │ ───► │ Digital Signal Board    │
│ (CW Application /       │      │ (Full Wheatstone Bridge  │      │ (Peak Hold, 1,200 Hz    │
│  CCW Removal)           │      │  with Force Buffer)      │      │  Sampling, TCP/IP)      │
└─────────────────────────┘      └──────────────────────────┘      └─────────────────────────┘

To eliminate off-axis measurement errors:

• The QualiTorque™ 100 and QualiTorque™ 200 include mechanical clips with integrated force buffers, dampening manual side-loading and uneven hand pressure during manual twisting.

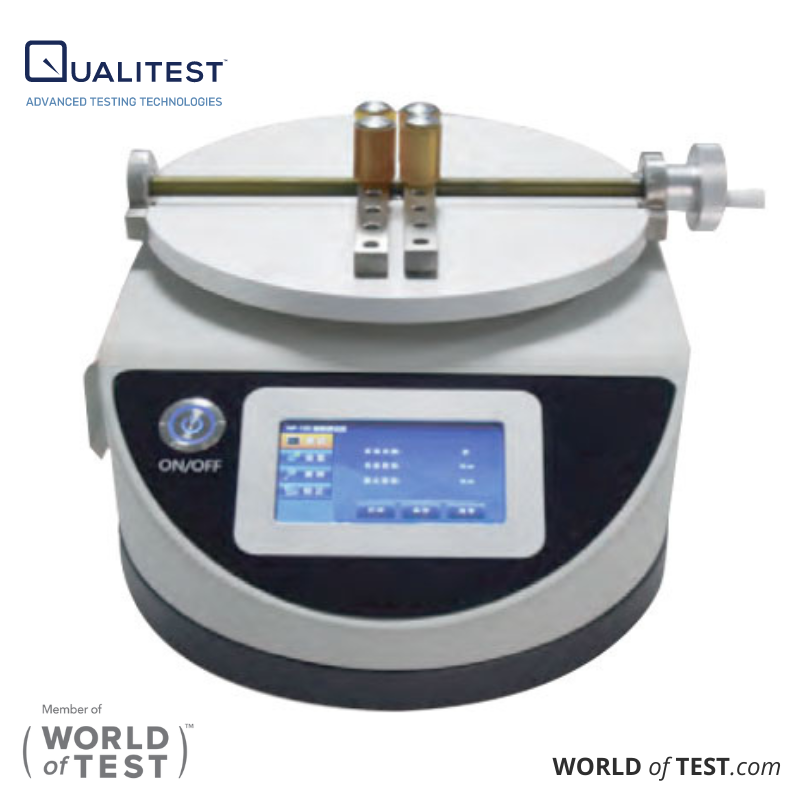

• The QualiTorque™ Auto-D1 and Auto-D2 utilize rigid, self-centering clamping fixtures and motorized drive spindles, isolating pure rotational torsion without applying unintended vertical thrust.

Standardized Testing Methods & Instrument Operational Modes

                              QualiTorque™ Test Methods
                                         │
       ┌────────────────────────┬────────┴────────┬────────────────────────┐
       ▼                        ▼                 ▼                        ▼
  Fixed-Speed Motor       Variable-Speed R&D     Peak & Time-Stop        Dead-Weight Static
    Method (10 RPM)         Method (Auto-D2)      Judgment Modes            Calibration
    (ASTM D3198)           (0.50–23.00 RPM)       (Auto-D1/D2)             (ASTM D3474)

Constant-Velocity Motorized Method (ASTM D3198 / ASTM D2063)

Manual cap opening introduces velocity variations that distort peak readings. The QualiTorque™ Auto-D1 maintains a steady default speed of 10 RPM, providing consistent rate-of-load conditions across every sample. For advanced laboratory analysis, the QualiTorque™ Auto-D2 provides digital variable-speed control from 0.50 to 23.00 RPM to evaluate speed-dependent friction behaviors.

Peak-Judgment vs. Time-Judgment Operational Modes

• Peak Mode: The instrument tracks live torque and halts test rotation immediately upon detecting peak breakaway drop-off.
• Time-Stop Mode: The motor continues rotation for a preset time duration to record complete unthreading behavior and residual running torque.

Static Dead-Weight Calibration Verification Method (ASTM D3474)

Verifies load-cell accuracy per ASTM D3474 using a calibration disc, low-friction pulley wire, and certified reference test weights to apply precise rotational moments (Torque = Force × Radius) across the measurement range.

Step-by-Step Standardized Test Procedure (ASTM D3198 / ASTM D2063)

[ Step 1: Conditioning ] ──► [ Step 2: Zero & Tare ] ──► [ Step 3: Clamping ]
                                                                 │
                                                                 ▼
[ Step 6: Post-Analysis ] ◄── [ Step 5: Peak Capture ] ◄── [ Step 4: Test Run ]

1. Sample Conditioning: Stabilize test containers at 23 ± 2°C and 50 ± 5% relative humidity for at least 24 hours per ASTM guidelines. Ensure neck finishes and closure threads are free of liquid residue or lubricant contamination.
2. Zeroing & Unit Selection: Turn on the instrument, allow the strain-gauge circuit to reach thermal stability, select the required measurement unit (lbf·in, kgf·cm, or N·m), and zero the digital readout.
3. Container Clamping: Place the container body between the clamping fixtures. Tighten firmly without deforming the container sidewalls to prevent inducing neck finish ovality.
4. Test Execution:
   • For Removal Testing: Select Opening Force Mode (CCW). On the Auto-D1, initiate the 10 RPM motorized drive; on the Auto-D2, execute the test via PC software at the specified RPM setting.
   • For Application Testing: Select Locking Force Mode (CW) and rotate until reaching the target torque limit or angular stop point.
5. Data Capture: Record the primary Peak Breakaway Torque and secondary Bridge-Breaking Torque. On the Auto-D2, review the live torque-angle curve generated via the TCP/IP PC interface.
6. Pass/Fail Evaluation: Compare recorded values against production quality limits. Samples displaying stripped threads, chuck slippage, or premature seal release are flagged for capping-line adjustment.
