Physical Testing Methods and Procedures

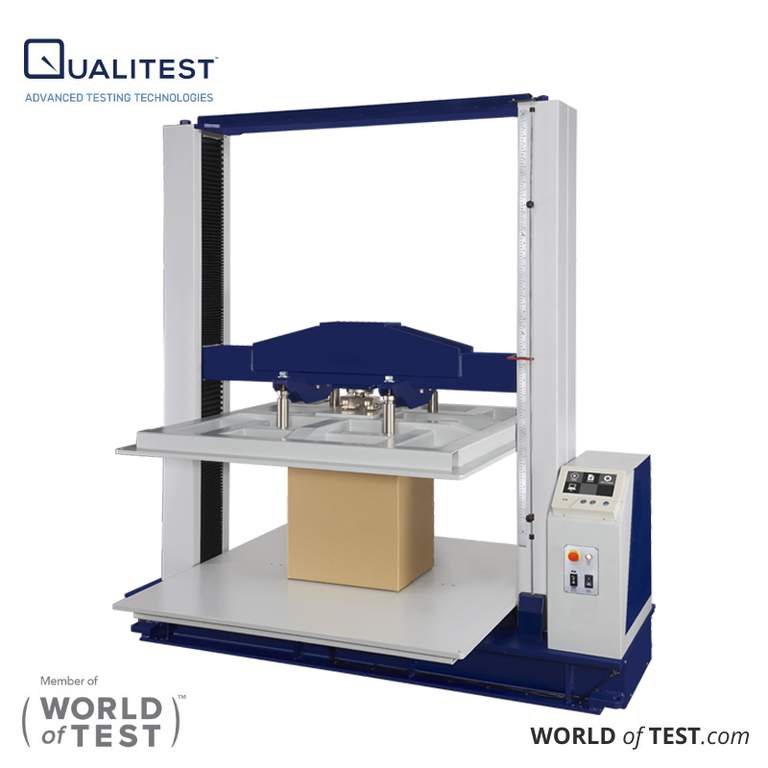

To scientifically measure these physical limits, the Box Compression Tester QualiBCT™ 20/50 directly evaluates the maximum vertical load a transport container can support before collapsing. Depending on whether your specific facility requires testing Model A, B, C, or D, this highly rigid testing apparatus applies up to an astonishing 20 kN (2,000 kg) or even an earth-shattering 50 kN (5,000 kg) of maximum capacity weight.
You can tweak this highly exact compression pace anywhere from a glacially slow 2 millimeters per minute all the way up to a surprisingly brisk 200 millimeters per minute, entirely matching strict international testing norms, such as ASTM D4169, ISO 12048, or TAPPI T804.
Operating directly from its exceptionally user-friendly 7-inch TFT color touch display panel, the machinery executes the two primary theoretical methodologies used in packaging analysis:
- The Collapsed Compression Test: Squeezes the industrial carton until it completely fails, outputting a highly detailed load-displacement curve straight to the optional TCP/IP connected Windows analysis software.
- The Constant Pressure Compression Test: Sustains a heavy, pre-set force over a long, drawn-out duration to guarantee your finished carton will not sag or ruin the internal contents during extended, multi-month pallet stacking.
Standard BCT Operating Parameters
When programming the Box Compression Tester QualiBCT-20/50, adhering to strictly standardized international parameters guarantees flawless, unquestionable repeatability:
| Test Phase | Technical Execution |
|---|
| Compression Mechanism | Sustained vertical force application between highly rigid, parallel metal platens to evaluate structural buckling under load. |
| Deformation Speed | Controlled displacement rate, fully adjustable across a broad range of 2 to 200 mm/min to match specific testing criteria. |
| Environmental Pre-Conditioning | Atmospheric regulation keeping test samples at exactly 23°C and 50% relative humidity prior to force evaluation. |
| Data Acquisition | Precision tracking of peak failure load paired with high-resolution load-deformation curves sampled at 1200 Hz. |
Theoretical Modeling and Simulations
Before initiating a heavily monitored physical crush test on the QualiBCT™ 20/50, structural engineering teams often use classic, widely respected mathematical formulas like the famous McKee equation to predict real-world stacking performance. This classic, vintage formula combines the edge-crushing strength of the corrugated board, the overall perimeter of the four-sided box, and the exact cardboard wall thickness.
However, because modern packaging features entirely non-traditional shapes, advanced testing laboratories now use incredibly detailed computer software simulations to track exactly how the side panels bend and twist. While these digital material models are incredibly smart, they absolutely require physical verification. The QualiBCT™ 20/50 provides this undeniable proof through its High Rigidity Structure Design, guaranteeing the metal testing plates remain perfectly parallel, completely preventing structural hardware warping even after years of relentless, heavy-duty laboratory abuse.
Failure Mechanics and Safety Factors
During a heavy-duty physical crush test, structural failure is rarely a tidy, perfectly clean snap. The sidewalls start to bulge outward in an incredibly ugly fashion, crumpled-up creases form near the vertical corners, and the rigid panels ultimately buckle.
Crucially, easy-grip hand holes or fresh-air ventilation slots can compromise a massive, hard-to-replace portion of this structural load-bearing strength.
To ensure your expensive shipments survive the chaotic, unpredictable warehouse floor, you must maintain a generous, better-safe-than-sorry cushion (your Safety Factor, or "K" value):
- If the hard goods inside your carton provide internal physical support, a safety factor of 1.65 is considered standard.
- If the cardboard box bears the entire crushing weight on its own, aim for a safety factor well over 2 to avoid catastrophic, pallet-destroying packaging failures.
QualiBCT™ 20/50 Technical Advantages
To capture this highly unpredictable structural behavior with complete, unquestionable accuracy, the Box Compression Tester QualiBCT-20/50 provides several brilliantly engineered, high-level mechanical advantages:
- Plates that completely adapt to the tilt: The upper compression plate features Two Selectable Test Modes. You can lock it tightly into a Fixed Parallel Platen for strict geometric testing, or switch it to a Self-aligning U-joint Type Platen. This slick swiveling trick adjusts seamlessly to slightly uneven, lopsided cardboard surfaces to distribute the intense testing weight completely evenly.
- The triple-threat sensor setup: Because structural buckling often happens asymmetrically, the Lower Compression Platen utilizes a trio of hyper-sensitive, strategically placed force sensors. It catches every tiny structural sag and provides wildly improved hardware protection for the delicate sensors during massive, 5,000 kg capacity tests.
- Incredibly fast, high-resolution tracking: Clocking the physical squeeze at a dizzying 1,200 Hz maximum data sampling rate, the software generates an insanely detailed, frame-by-frame map of the entire crush, identifying the exact millisecond the very first paper fiber throws in the towel.
- An unyielding, incredibly stiff backbone: Thanks to a deeply reinforced crosshead support and a High Rigidity Structure Design, this machine is practically immune to physical structural warping, even after years of relentless, heavy-duty laboratory abuse.
