Brinell Optical Scanning & Measurement System High Precision BrinScan-500 with XY Stage Features
- Utilizing a telecentric zoom lens, the BrinScan-500 system can accurately measure Brinell indentations on both mirror and rough surfaces.
- It features a high-accuracy microscope stage with a travel of 100 x 50mm, capable of supporting specimens weighing up to 15kg.
- With non-touch optical measurement and laser navigation, locating indentations is effortless.
- The BrinScan V2.0 software enables automated measurements, streamlining the process.
1. HD Image
The microscope utilizes an LED cold light source, a high-definition optical system, and a CMOS digital camera. This combination ensures that the indentation can clearly reappear in the image.
2. Auto-Identification
Brinell Optical Scanning & Measurement System High Precision BrinScan-500 with XY Stage automatically identifies the indentation edge and measures the indentation circle using over 200 points for each circle. It calculates the diameter and obtains the Brinell hardness automatically. For large indentations, it is not necessary for the entire indentation to be visible; measuring more than half of the indentation appearing on the interface is sufficient.
3. One-key Measuring
Brinell Optical Scanning & Measurement System High Precision BrinScan-500 with XY Stage features a simple and intuitive interface that operators can use without requiring professional training. Manual selection is unnecessary; with just one key operation, the indentation diameter and hardness value are provided automatically.
Brinell Optical Scanning & Measurement System High Precision BrinScan-500 with XY Stage also includes basic selection functions such as Two-point, Three-point, and whole selection. Image magnification can be utilized during manual measuring, enhancing precision in manual measurements.
4. Easy Calibration

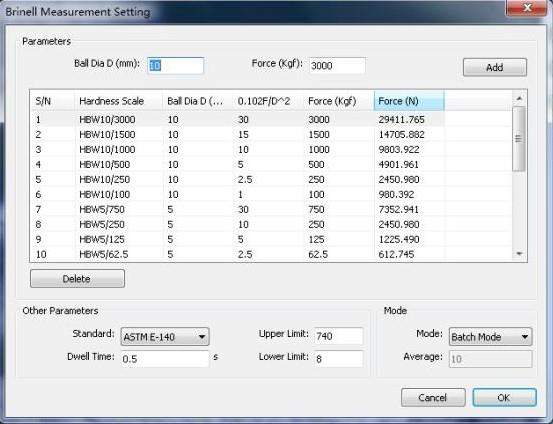

Brinell Optical Scanning & Measurement System High Precision BrinScan-500 with XY Stage initial calibration can be performed using a glass scale and a Brinell standard hardness block. Once a scale (K value) is calibrated, there is no need to recalibrate when the measuring scale is changed. Measurements can be taken directly on the new scale without the need for recalibration.
5.Report Output
Brinell Optical Scanning & Measurement System High Precision BrinScan-500 with XY Stage displays indentation diameter, measurement value, maximum, minimum, and conversion values (such as HRA, HRB, HRC, HV, HS, tensile strength, etc.). It automatically saves indentation images, and departments and operators can be user-defined. Word and Excel files can be generated automatically without the need for manual recording.
6. High Compatibility
Brinell Optical Scanning & Measurement System High Precision BrinScan-500 with XY Stage can be used in conjunction with any type of Brinell Hardness Tester and is compatible with Windows 7, Windows 8, and Windows 10 operating systems.
