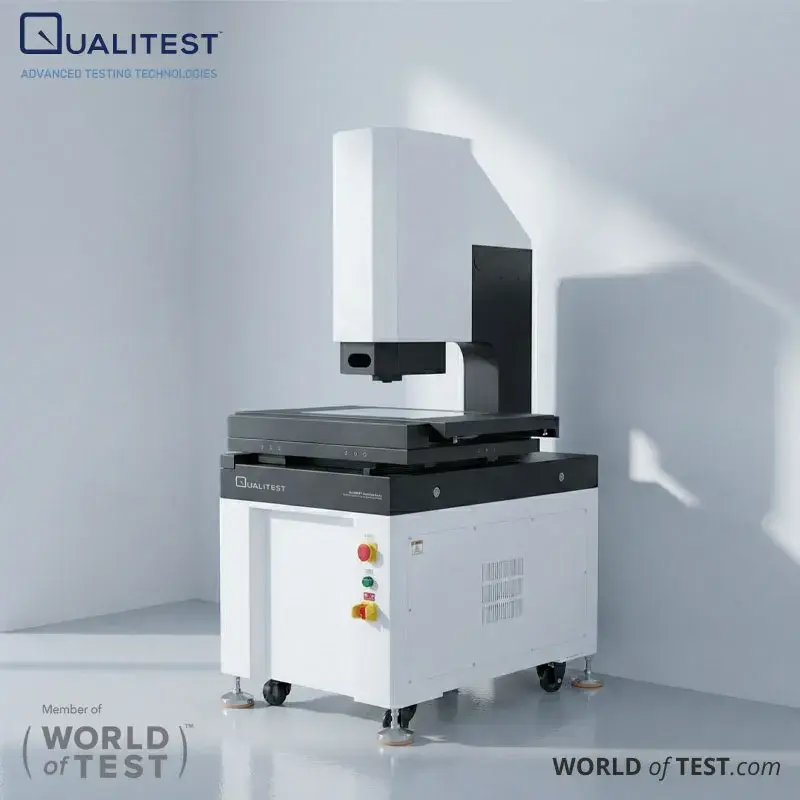

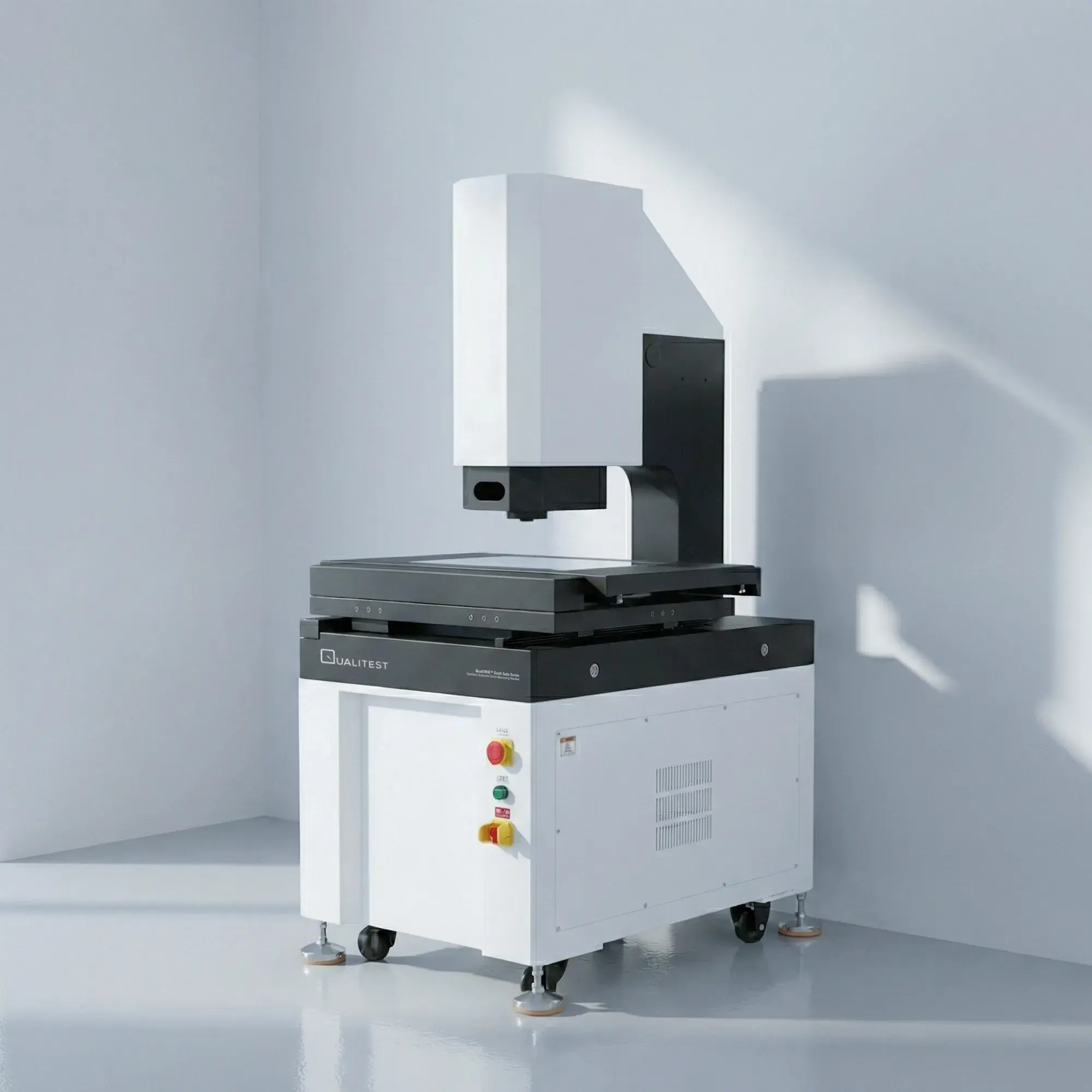

Cantilever Automatic Vision Measuaring Machine – QualiVMM™ Canti Auto Series

Vision Measuring Machine performance depends on stable motion, clear optics, and consistent lighting. QualiVMM™ Canti Auto Series is a cantilever-style CNC vision system designed for fast, repeatable dimensional inspection in QC labs and production floors. It uses three-axis CNC control for precise positioning, supported by a granite base and pillar for stable measurement conditions.

A 0.5 μm grating scale and a high-resolution digital camera help deliver reliable edge capture and measurement repeatability. The platform also includes a 6.5X HD optical lens with zoom and one-time pixel correction to support accurate scaling across magnifications.

Cantilever Automatic Vision Measuring Machine – QualiVMM™ Canti Auto Series Applications

CNC dimensional inspection for machined components
- Programs can measure lengths, radii, angles, and feature spacing with consistent motion control. A non-contact workflow helps when parts are small, thin, or easy to deform with touch tools. CNC routines also reduce operator-to-operator variation during repeated inspection runs.
Batch inspection with fixtures and arrays
- Production teams often inspect many identical parts per shift. The CNC platform and software workflow support repeatable programs, so batch checks run with fewer manual steps. This fits incoming inspection, in-process checks, and final QA where cycle time matters.
Parts with challenging edges or mixed finishes
- Lighting quality often determines edge detection quality. The 5-ring, 8-zone LED surface lighting plus contour illumination enables contrast control across reflective, dark, or textured surfaces. It also supports consistent imaging across different operators and shifts.
2.5D to 3D workflows using optional sensors
- Some jobs require height or surface information beyond 2D measurements. Optional configurations can add a touch probe or laser module for contact or scan-based measurement workflows. This supports more advanced inspection needs when parts require 3D elements.

Cantilever Automatic Vision Measuaring Machine

Standards

ISO/IEC 17025: calibration competence and traceability used by quality labs
ISO 10360 series: acceptance and reverification concepts for coordinate measuring systems
ASME B89 series: dimensional metrology guidance widely used in North America
ISO GPS standards such as ISO 1101: aligns measurement results with GD&T callouts on drawings

Cantilever Automatic Vision Measuring Machine – QualiVMM™ Canti Auto Series Key Features

CNC XYZ motion control for accurate positioning and repeatable programmed inspection.
Granite base and pillar that support stable measurement conditions.
Precision guides, ball screws, and AC servo motors to support motion stability and accuracy.
0.5 μm grating scale feedback for positioning and measurement accuracy.
High-resolution camera plus 6.5X HD zoom optics with one-time pixel calibration.
Program-controlled LED illumination with 256-level brightness adjustment across 5 rings and 8 zones, plus contour lighting.
iMeasuring vision software designed for automated measurement workflows and operator-friendly operation.

Cantilever Automatic Vision Measuring Machine – QualiVMM™ Canti Auto Series Technical Specification

Specification	QualiVMM™ Canti Auto 300 Series	QualiVMM™ Canti Auto 400 Series	QualiVMM™ Canti Auto 500 Series	QualiVMM™ Canti Auto 600 Series
X/Y travel (mm)	300 × 200	400 × 300	500 × 400	600 × 500
Z travel (mm)	200 (optional 300/400)
Accuracy E1x, y (µm)	2.0 + L/200	2.5 + L/200	3.0 + L/200	3.0 + L/200
Accuracy E1z (µm)	4.0 + L/200
Scale resolution	0.5 µm glass grating ruler
Worktable material	Granite
Guide system	Linear guide, double-track double-slider
Operation mode	Remote handle, mouse, programmed auto detection
Lighting	Contour LED + 8-zone LED surface, coaxial optional
Camera	1/2.9" high-resolution digital camera
Lens	Zoom745EF 0.7X–4.5X optical, 28X–180X video
Software	iMeasuring
OS support	Windows 10/11 (32/64-bit)
Working environment	20°C ±2°C, <1°C/hr, 30–80% RH, vibration <0.02g, ≤15Hz
Power	220V / 50Hz / 10A
Load capacity	0–30 kg (max 50 kg)
Dimensions (W×D×H, mm)	789×636×1640	1033×820×1685	1213×940×1705	1453×1120×1725
Net weight (kg)	396	466	560	796

Standard delivery and optional accessories

Standard delivery includes iMeasuring software, electronic feedback zoom lens, calibration gauge block, controller, 0.5 μm scale, PC desk, dust cover, dongle, lighting modules, camera, PC with monitor, and cables.

Options accessories include laser module sensor, higher-resolution scales, alternate cameras, 3D calibration block, touch probe, auxiliary objectives, and motorized lens variations.
