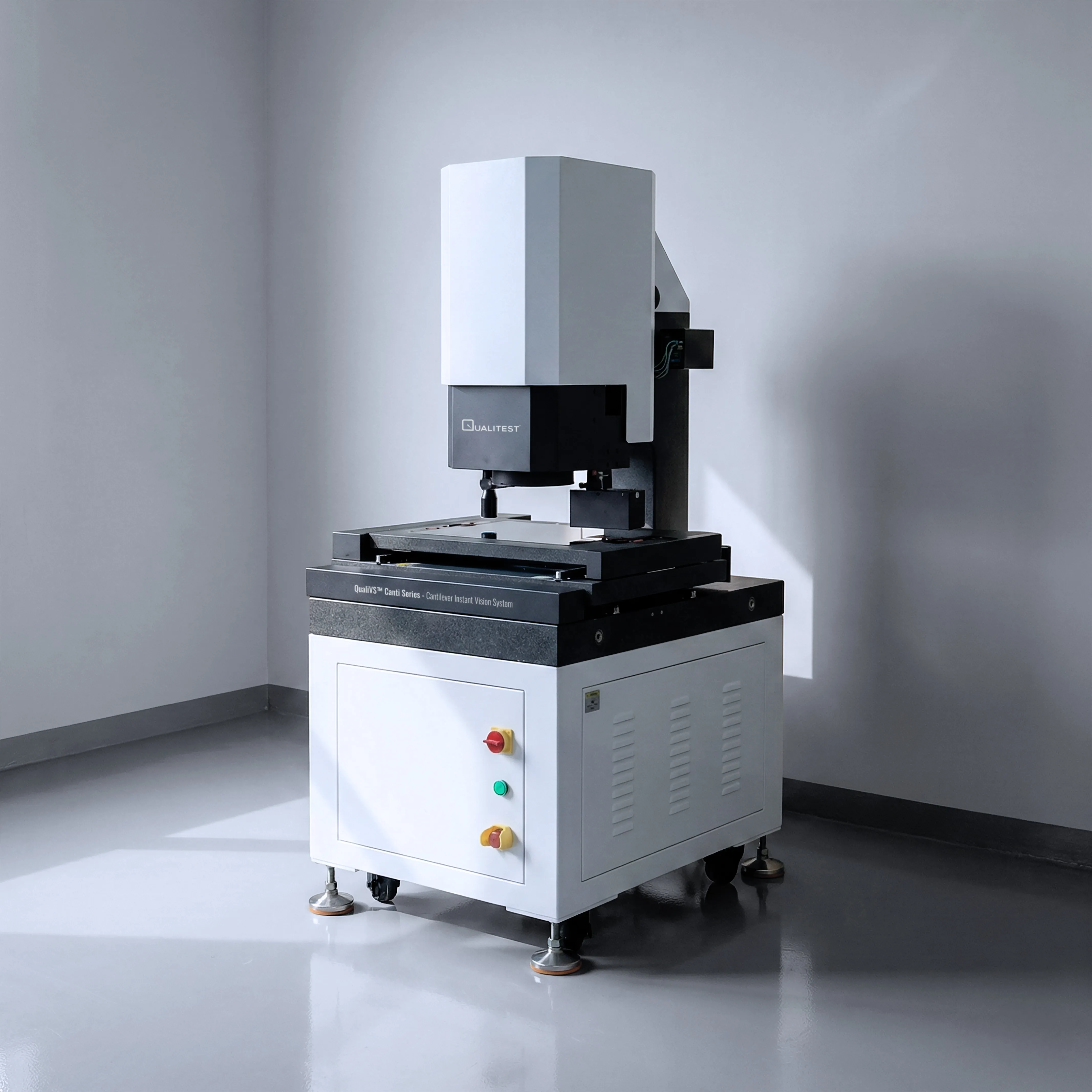

Cantilever Instant Vision System – QualiVS™ Canti Series

A Vision System built for high-throughput dimensional measurement, QualiVS™ Canti Series combines a cantilever bridge structure with dual high-resolution cameras and dual telecentric lenses to measure features quickly with minimal operator variability. The system supports both high-precision mode and wide-field mode, helping QC teams balance speed and measurement performance depending on part type and inspection plan.

This Machine Vision System uses multi-source LED lighting (contour and surface) to improve contrast on mixed finishes, plus joystick/mouse control and programmable routines for repeatable inspection. Travel options cover common production needs, and additional travel ranges can be customized based on application requirements.

Cantilever Instant Vision System – QualiVS™ Canti Series Applications

  • Large-size precision measurement
    • Supports dimensional checks on larger parts where fast 2.5D measurement and stable edge definition matter for production release and incoming inspection.
  • 3C and consumer electronics (screens, housings, cases)
    • Measures outlines, hole patterns, cutouts, and position relationships on phone-related components where consistent results are needed across shifts.
  • Electronics manufacturing (PCB boards)
    • Helps verify feature location and geometry for boards and related components, supporting process control and batch comparison.
  • New energy (lithium batteries)
    • Enables dimensional checks for battery components and related precision parts in production QA routines.
  • Automotive precision parts
    • Suitable for repeatable inspection of precision-machined or molded parts where quick measurement cycles improve throughput.
Cantilever Instant Vision System – QualiVS™ Canti Series

Standards

  • ISO 10360-7: Acceptance and reverification tests for CMMs with imaging probing systems.
  • ISO 10360-9: Acceptance and reverification tests for multisensor coordinate measuring systems.
  • ISO 14253-1: Decision rules for proving conformity/nonconformity to specifications (measurement uncertainty).
  • ISO 8015: Fundamentals of GPS (Geometrical Product Specifications).
  • ASME Y14.5: GD&T definitions used across manufacturing drawings and inspection plans.

Cantilever Instant Vision System – QualiVS™ Canti Series Key Features

  • Cantilever instant measurement architecture that supports fast loading and efficient inspection workflows for larger or flat workpieces.
  • Dual 20 MP monochrome camera setup for clear edge capture and repeatable feature recognition.

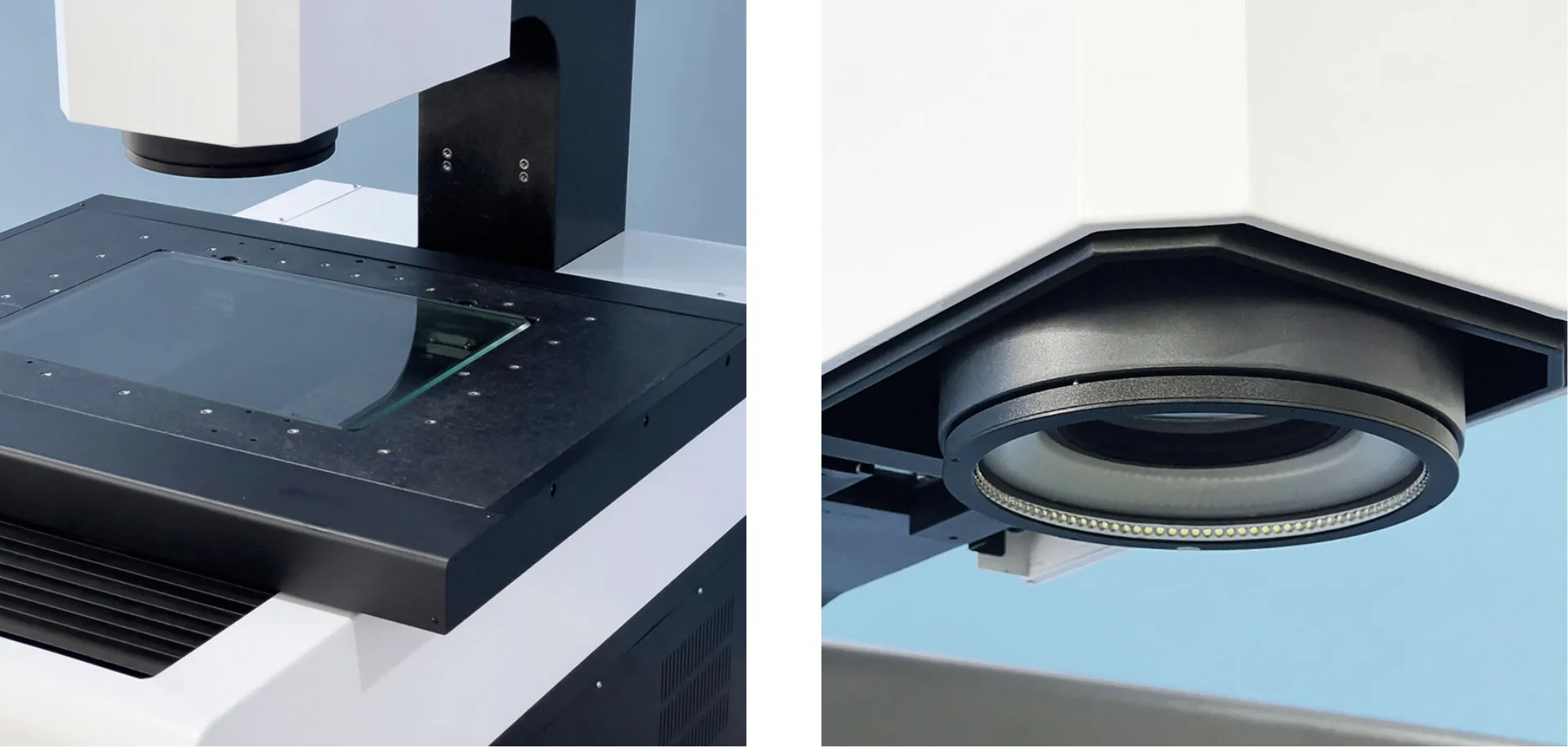

  • Dual telecentric lens design to reduce perspective error and stabilize scaling across the measurement field.
  • Two inspection modes (high-precision and wide-field) to match measurement needs to part geometry and throughput goals.
  • Programmable illumination package with green contour lighting and multi-source surface lighting to improve contrast on reflective or mixed-finish parts.
  • 0.1 μm display resolution with 0.5 μm linear scale resolution on X/Y/Z feedback for stable positioning and reporting.
  • Metus Flash Vision measuring software for measurement routines, reporting, and repeatable program execution.
  • Production-friendly operation using joystick control, mouse operation, and automated detection programs for consistent cycles.
Cantilever Instant Vision System – QualiVS™ Canti Series

Cantilever Instant Vision System – QualiVS™ Canti Series Technical Specifications (all models)

System Specifications

ItemQualiVS™ Canti 300QualiVS™ Canti 400
X/Y axis travel400 × 300 mm500 × 400 mm
Z axis travel200 mm200 mm
Machine dimensions (W × D × H)1195 × 832 × 1579 mm1463 × 940 × 1591 mm
Packing size1380 × 1170 × 1910 mm1690 × 1300 × 2000 mm
Weight650 kg780 kg
Display resolution0.1 µm
X/Y/Z linear scale resolution0.5 µm
CamerasDual 20 MP B/W cameras
Lens systemDouble-rate dual telecentric lens
Contour illuminationGreen parallel contour illumination
Surface illuminationWhite liftable 4-zone surface light + white low-angle light
Measuring softwareMetus Flash Vision
Operation modeJoystick + mouse + automatic detection program
Load capacity25 kg
Working environment20°C ±2°C humidity 30–80%; low vibration requirement
VoltageAC 220V/50Hz; 110V/60Hz

Repeatability and accuracy (modes):

  • Repeatability (High-precision mode): ±1.5 μm (no stitching), ±2.5 μm (with stitching)
  • Repeatability (Wide-field mode): ±2.0 μm (no stitching), ±3.0 μm (with stitching)
  • Accuracy (High-precision mode): ±(1.5 + L/150) μm (no stitching), ±(3.0 + L/150) μm (with stitching)
  • Accuracy (Wide-field mode): ±(2.0 + L/150) μm (no stitching), ±(3.5 + L/150) μm (with stitching)

Configuration Variants (by sensing package)

VariantMeasurement typeSensor package
QualiVS™ Canti 300A2.5D Automatic Vision Measuring MachineZoom-lens sensor
QualiVS™ Canti 300C2.5D Automatic Laser-Scan & Vision Measuring MachineZoom-lens sensor + laser module (Omron)
QualiVS™ Canti 400A2.5D Automatic Vision Measuring MachineZoom-lens sensor
QualiVS™ Canti 400C2.5D Automatic Laser-Scan & Vision Measuring MachineZoom-lens sensor + laser module (Omron)

Measurement Space Guide

Travel classModelsX (mm)Y (mm)Z standard (mm)Z max customized (mm)
300 × 400 × 200QualiVS™ Canti 300A / QualiVS™ Canti 300C400300200400
400 × 500 × 200QualiVS™ Canti 400A / QualiVS™ Canti 400C500400200400

Other travel specifications can be customized to match customer needs.
