Carbon Black Content Tester

Carbon Black Content Tester
Parent Product
Plastics Pipe / PVC Testing Equipment
Product Categories
Rubber & Elastomer Testing Equipment
Plastic Testing Equipment
Plastics PVC / Pipe Testing Equipment
Standards
IEC 60811-4-1
View PDF

Precision Carbon Black Content Test Apparatus for Polyethylene, Cable Materials & Polymers

The Carbon Black Content Tester QualiCBCT™-200 is a high-precision instrument developed for conducting accurate carbon black content tests in polyethylene, polypropylene, and related polymer materials. This fully integrated carbon testing machine is essential for manufacturers, laboratories, and quality control departments that require consistent measurement of black content in plastic and cable products.

Built with an intuitive 7-inch LCD touchscreen, the tester allows users to monitor all test parameters in real time, including temperature, duration, and process status. Its advanced heating system ensures uniform temperature distribution and high accuracy during thermal analysis, delivering dependable results every time.

This carbon black content test apparatus is widely used in:

  • Plastic and polymer manufacturing – for black content verification in raw materials and finished goods
  • Cable and optical fiber production – to test insulation and sheath materials for compliance
  • Rubber processing – to determine filler content in elastomer compounds
  • R&D and quality assurance labs – conducting material comparisons and standard compliance checks
  • Electrical insulation testing – evaluating thermal degradation and compound composition

As a reliable carbon content tester, the QualiCBCT™-200 enables accurate, repeatable testing, supporting product performance, regulatory compliance, and material consistency.

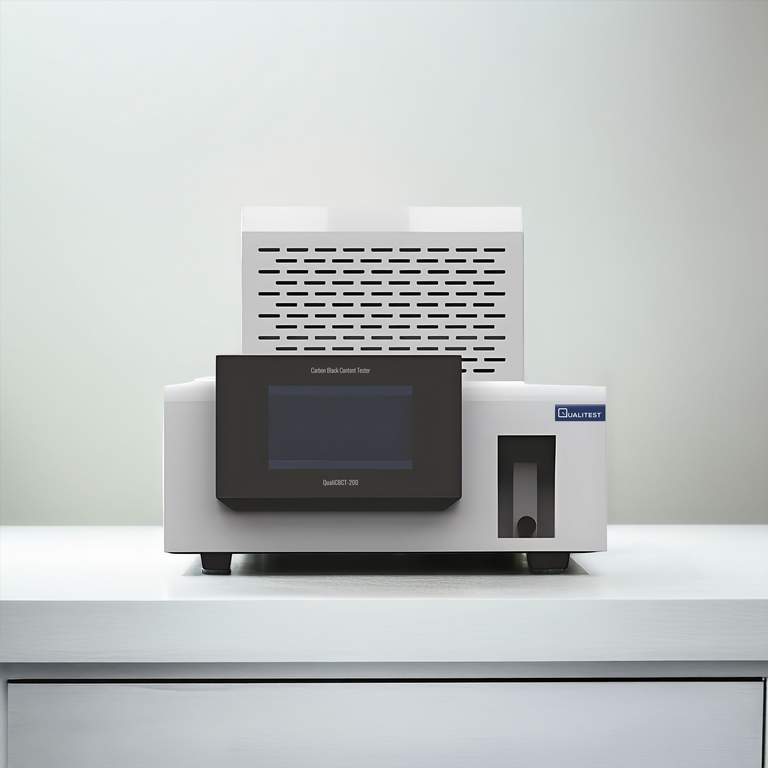

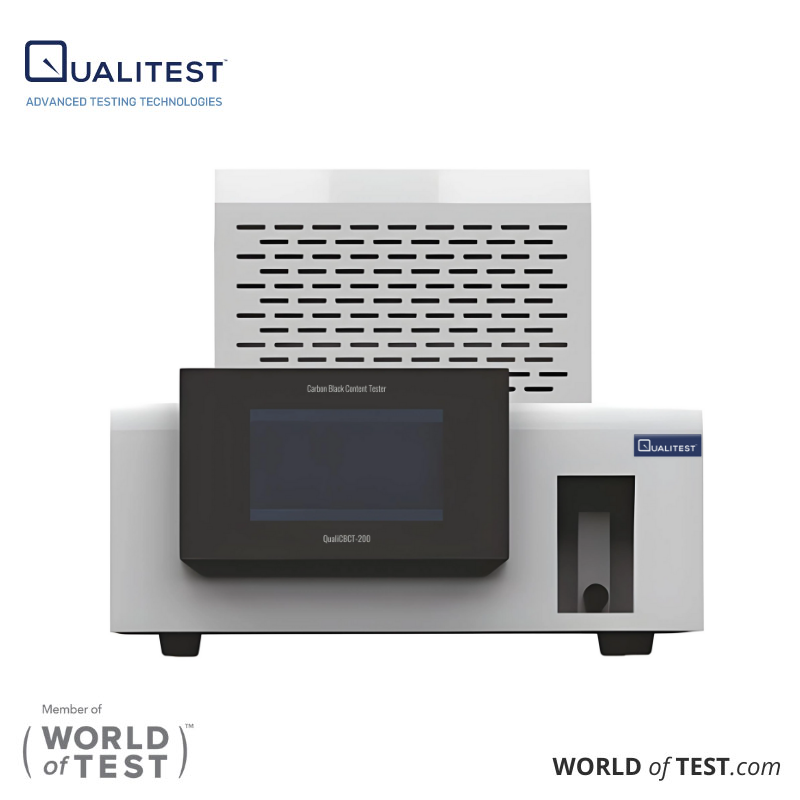

Carbon Black Content Tester QualiCBCT-200

  • Designed for use with polyethylene, polypropylene, polybutylene, rubber, and cable insulation materials
  • Complies with IEC60811-4-1:2004 and other recognized test standards
  • Supports pyrolysis testing in a nitrogen atmosphere to isolate and quantify carbon black content
  • Fully integrated control system with user-friendly touchscreen interface
  • High-accuracy temperature control and excellent thermal stability
  • Real-time monitoring of heating rate, holding time, and final test conditions
  • Durable and aesthetically designed housing for industrial lab environments

Specifications of Carbon Black Content Tester QualiCBCT™-200

ModelQualiCBCT™-200
Display method7-inch capacitive touch screen
Furnace sizeΦ 45 X 300±5mm
Heating elementHigh temperature alloy wire
Heating zone length250mm
Working temperatureRT~1150 ℃
Temperature controlIntelligent programmable control with segmented program settings
Working power supplyAC220V/50HZ/60HZ (110V also available)
Sensor sensitivity0.1℃
Air circuit controlTwo ways, automatic program switching
Cooling methodRapid cooling (≤ 20 min, 900℃ to room temperature)
Number of test samplesTest 4 samples at a time
Data calculationThe software comes with calculation function, one click calculation.
Sample rackCustomized guide rail sample holder for easy sampling and setting out
Filtering deviceEquipped with exhaust gas filtration device
PrintingWith printing function
