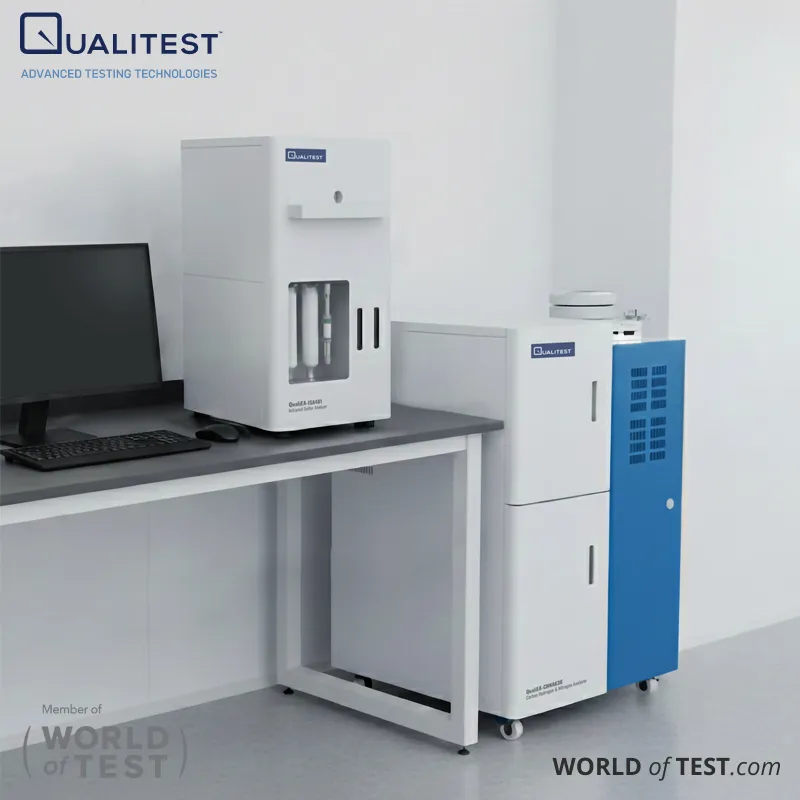

Carbon Hydrogen Nitrogen & Sulfur Analyzer - QualiEA™ CHNSA636

Carbon Hydrogen Nitrogen & Sulfur Analyzer - QualiEA™ CHNSA636 Features

Powerful and Cost-Effective Solution

• A single system handles complete CHNS testing and can also perform individual or combined element analyses as needed.
• The CHN analysis process features fully automated sample feeding, testing, and cyclic operation, allowing for completely unattended analysis. The standard 36-sample autoloader can be expanded to accommodate up to 72 samples, with the flexibility to add or replace samples during operation.
• Sulfur analysis involves simple manual sample loading — quick, efficient, and free from complex mechanical procedures.

Full Process Control and High Precision

• The sample introduction system features an air curtain design that prevents outside air from entering the furnace. A flow-balancing unit minimizes sample splashing during loading, ensuring complete combustion and accurate test results.
• A high-performance infrared sensor provides precise carbon and hydrogen analysis while continuously monitoring the combustion process in real time. This allows accurate detection of the combustion endpoint, reducing test time and improving accuracy.
• The system uses a high-sensitivity, low-drift thermal conductivity cell with independent temperature control to maintain a stable baseline. The ultra-low drift infrared cell requires only one drift correction per day, ensuring consistent and reliable performance.

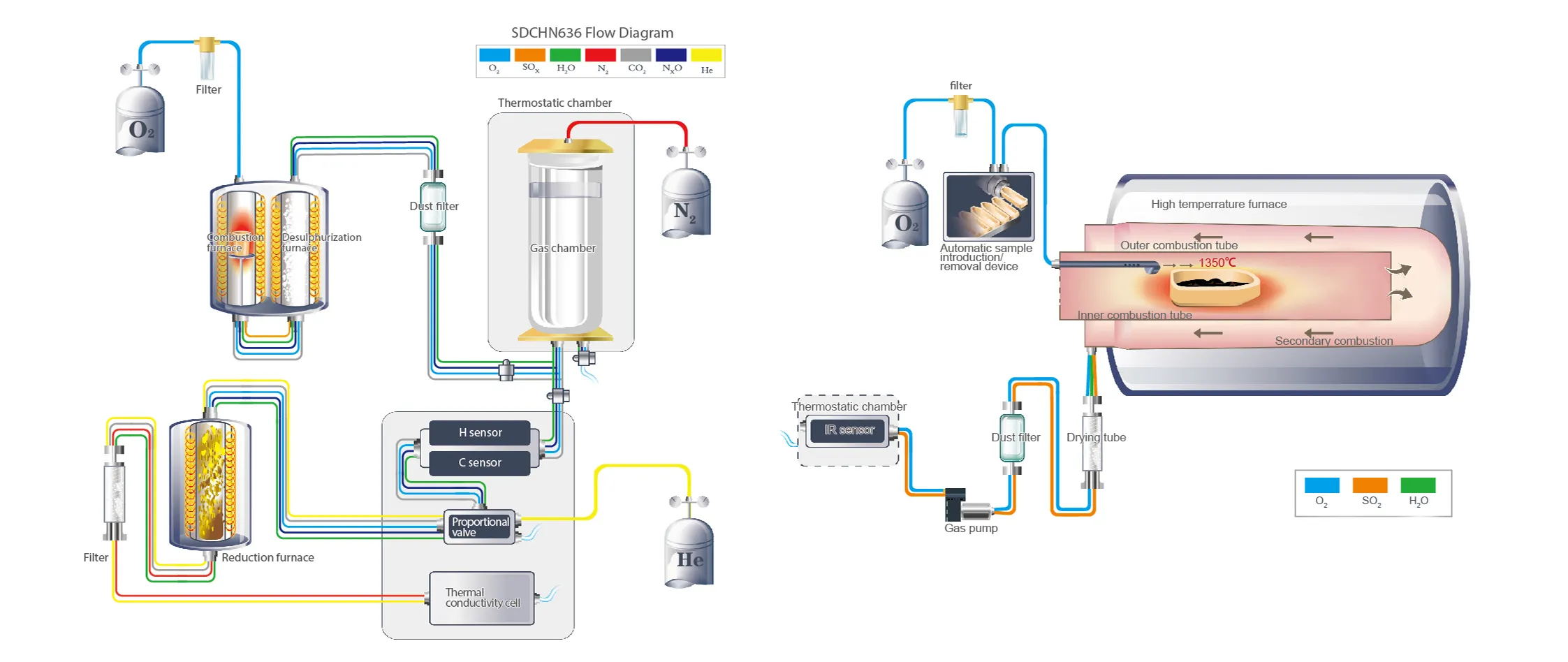

Short and Reliable Gas Path

• The integrated confluence board design provides a compact gas path with low dead volume and minimal moisture residue. Automated and precise flow control ensures improved accuracy and enhanced reliability of the entire gas system.

User-Friendly Design and Easy Operation

• Gas tightness can be checked easily with a single click through the software.
• The crucible is accessible from the top for quick replacement, and the furnace body is simple to assemble or disassemble for easy reagent changes.
• An optional high-performance touch screen is available, featuring a multifunctional retractable and foldable stand for convenient use.

Low Operating Cost

• The high-stability infrared sensor reaches optimal performance in a short time. A helium throttling system minimizes gas use—maintaining a flow rate of just 0.05 L/min before sample introduction and automatically increasing to 0.7 L/min during analysis. This efficient design significantly reduces helium consumption and overall operating costs compared to other systems.
