Charpy Impact Test Specimen Low Temperature Chamber - CHARPY-QualiCHLTC™ 30 Performance Characters
User-Friendly Design: The machine's practical "L" shape places the control section at an elevated height for easy viewing and temperature adjustment, while the lower section contains the freezing tank for straightforward sample placement and clamping. The machine height aligns seamlessly with the impact testing device, allowing for efficient, accurate sample positioning.

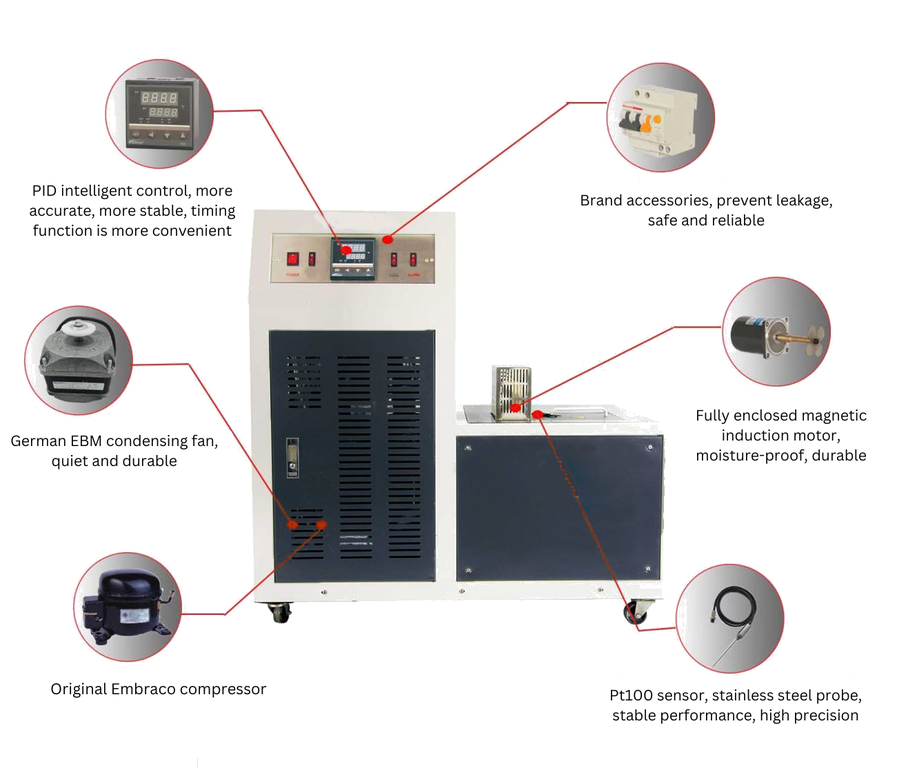

High-Quality Refrigeration Components: The system is equipped with a fully enclosed compressor and top-tier core components for consistent, long-term performance. A Condensing fan reduces noise, extends lifespan, and supports eco-friendly refrigerants.
Precise Temperature Control: Featuring a high-precision temperature controller with automatic PID adjustment, the system maintains stable temperatures. The platinum resistance sensor and stainless steel probe ensure accuracy, while the magnetic induction stirring motor operates effectively in low-temperature, high-humidity conditions. Forced agitation within the tank promotes even temperature distribution.
Large Sample Capacity: With three sample baskets, the unit can accommodate up to 60 standard-sized samples (10 x 10 x 55 mm) simultaneously. It also allows for additional smaller samples, including 7.5 x 10 x 55 mm, 5 x 10 x 55 mm, and 2.5 x 10 x 55 mm.
Easy Operation and Mobility: Equipped with universal casters, the unit is easy to move. Sample baskets allow for convenient handling, and a liquid discharge port enables quick recycling of the cooling medium and simplifies cleaning. Additional features include temperature alarms and insulation timing to help operators manage tasks efficiently.
Comprehensive Protection Features: Built with multiple safety mechanisms, the machine includes overload, leakage, grounding, compressor overload, and anti-drying (medium over-temperature) protection, ensuring durability and safe operation.
Configuration:
- Compressor: Fully enclosed compressor (1 unit).
- Condensing Device: High-efficiency finned condenser with original packaging and condensing fan (1 unit).
- Dry Filter: One dry filter for effective moisture control.
- Insulation: Rigid polyurethane foam insulation for optimal temperature retention.
- Shell: Made from folded, electrostatic spray-coated cold-rolled steel for lasting durability.
- Stirring Device: Complete stirring unit for consistent medium circulation.
- Temperature Control Device: Temperature control unit for precise regulation.
- Sample Baskets: Three stainless steel sample baskets, offering ample and durable sample storage.
