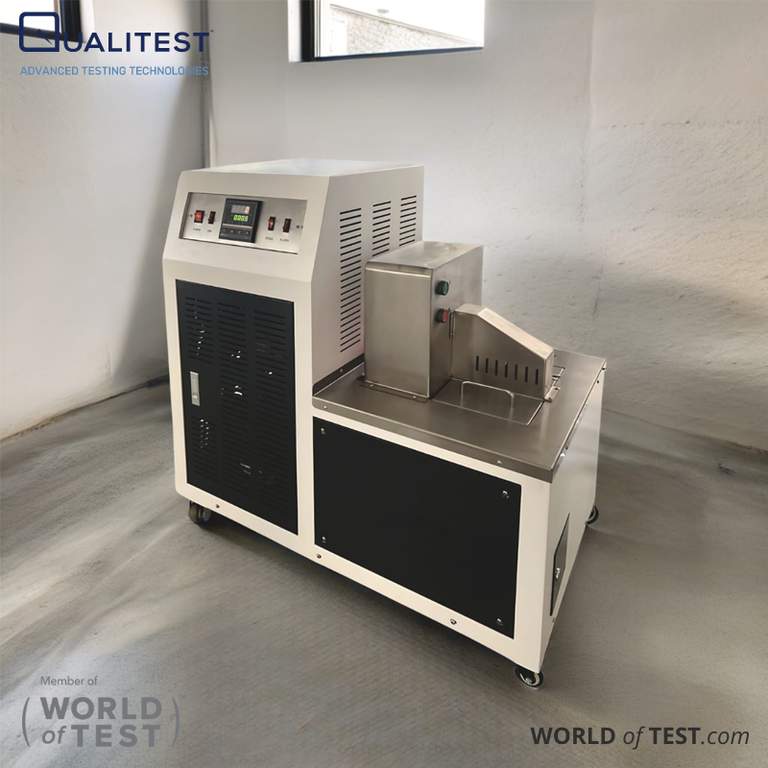

Charpy Impact Test Specimen Low Temperature Chamber - CHARPY-QualiCHLTC™ 60 Performance Characters
Ergonomic Structure Design: Featuring a practical "L" shape, this machine’s high section houses control functions for temperature setting and operation, while the lower freezing tank allows easy sample placement and clamping. The machine’s height aligns with the impact testing machine, enabling swift and accurate sample positioning.

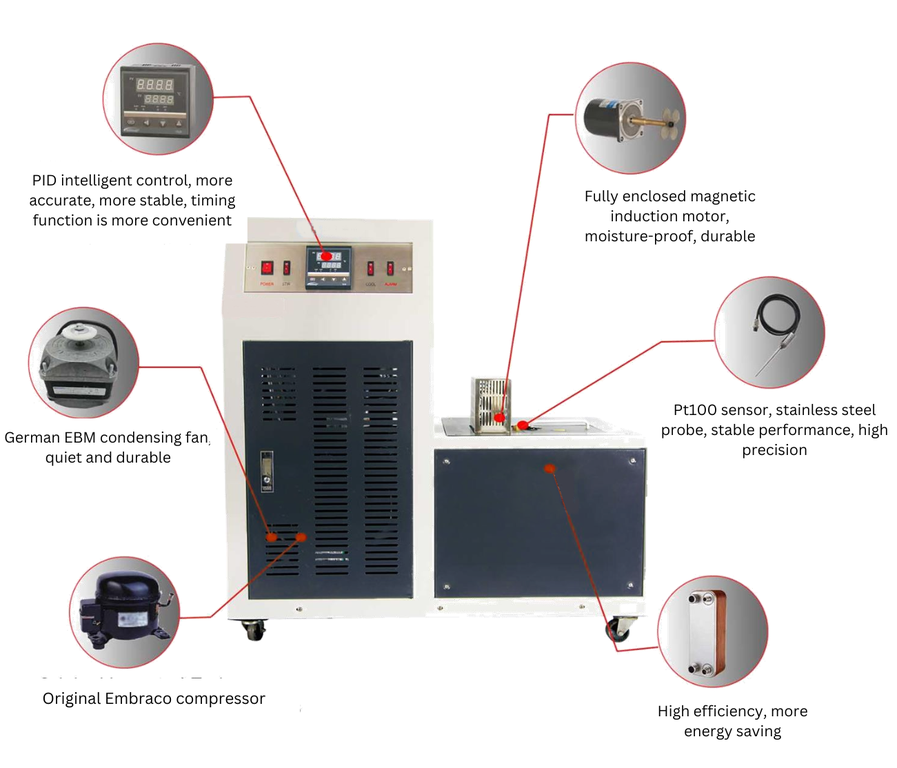

High-End Refrigeration Components: Equipped with a fully enclosed compressor and premium core components, the system is built for stable, long-lasting operation. The condensing fan operates quietly and has a long lifespan, while the use of environmentally friendly refrigerant enhances the system’s eco-friendliness.
Precise Temperature Control: This equipment includes a high-precision temperature control system with automatic PID adjustment, ensuring consistent temperatures. It features a platinum resistance sensor and a stainless steel probe for dependable performance, along with a low-noise, long-life magnetic induction stirring motor that operates effectively in low-temperature, high-humidity environments. The tank’s medium is thoroughly agitated by this motor, ensuring even fluidity, while the high-quality stainless steel heater minimizes temperature fluctuations.
High Sample Capacity: Three sample baskets enable freezing of up to 60 standard-sized samples (10 x 10 x 55 mm) simultaneously. The system also accommodates greater quantities of smaller samples, such as 7.5 x 10 x 55 mm, 5 x 10 x 55 mm, and 2.5 x 10 x 55 mm.
Ease of Use and Mobility: Universal casters make the unit easy to move, while the sample basket design simplifies handling. A liquid discharge port facilitates cooling medium recycling and cleaning. Additional features, including temperature alarms and insulation timing, assist operators in efficiently managing tasks.
Comprehensive Protection: The system incorporates multiple safety mechanisms, including overload, leakage, grounding, compressor overload, and medium over-temperature (anti-drying) protections, ensuring reliable and safe operation.
Configuration:
- Compressor: Two fully enclosed compressors with original packaging and serial numbers
- Condensing Device: Two high-efficiency finned condensers, each with a condensing fan in original packaging
- Heat Exchanger: One stainless steel plate-type heat exchanger
- Heat Insulation: Rigid polyurethane foam insulation for optimal thermal retention
- Shell: Cold-rolled steel with an electrostatic spray-coated finish for durability
- Stirring Device: One set for consistent medium circulation
- Temperature Control Device: One set for precise temperature regulation
- Stainless Steel Sample Baskets: Three baskets for secure sample storage
