Charpy Impact Test Specimen Low Temperature Chamber - CHARPY-QualiCHLTC™ 80 Performance Characters

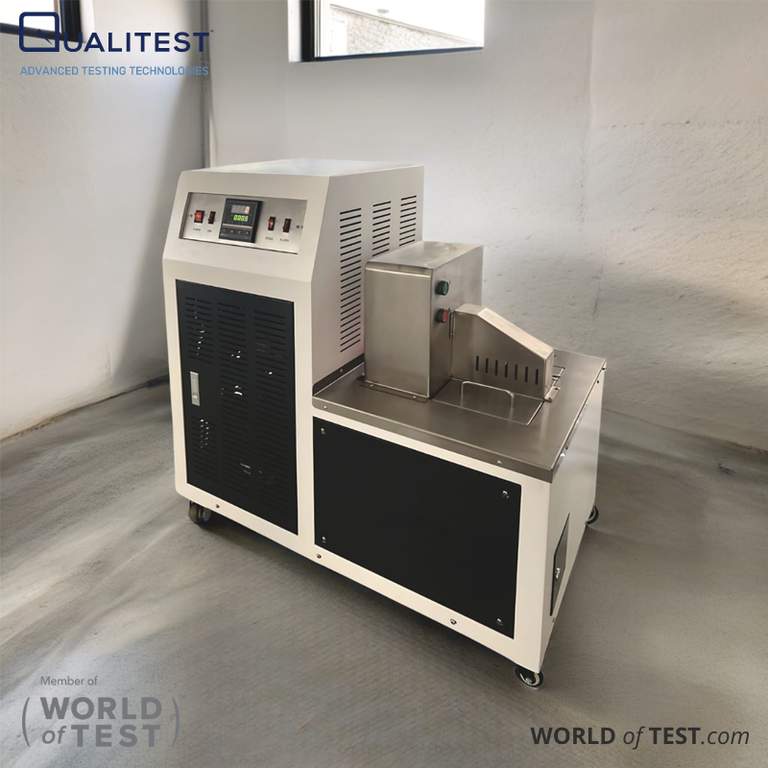

User-Friendly Design: The machine features an ergonomic "L" shape, dividing it into two sections for functionality. The upper section is dedicated to the control unit, making temperature settings, observation, and operation accessible. The lower section houses the freezing tank, designed for easy sample placement and clamping. Aligned with impact testing machines, it allows for quick and precise sample positioning.

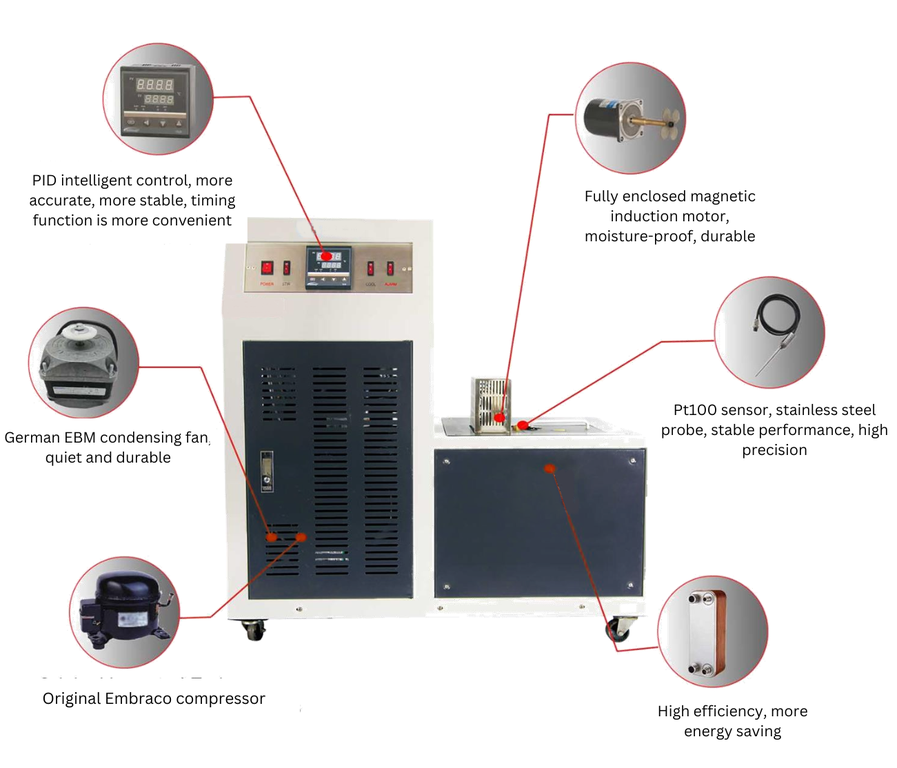

High-End Refrigeration System: Equipped with fully enclosed compressors and premium core components, the system ensures long-term stability and extended operational life. The low-noise condensing fan provides quiet performance and durability, while using eco-friendly refrigerants.
Precise Temperature Control: This system includes a high-precision temperature control instrument with automatic PID adjustments, maintaining constant temperatures. A platinum resistance sensor and stainless steel probe provide stable and accurate temperature readings, while the low-noise magnetic induction stirring motor operates reliably in low-temperature, high-humidity environments. The tank's medium is thoroughly agitated, ensuring even fluidity, while the stainless steel heater supports durability and temperature uniformity.
Large Sample Capacity: Three sample baskets allow the simultaneous cooling of up to 60 standard 10 x 10 x 55 mm samples. The system can also accommodate larger quantities of smaller sample sizes, including 7.5 x 10 x 55 mm, 5 x 10 x 55 mm, and 2.5 x 10 x 55 mm.
Ease of Operation: Equipped with universal casters, the unit is easy to move. The sample baskets facilitate sample placement and removal, while a liquid discharge port allows efficient recycling of the cooling medium and cleaning. Temperature alarms and insulation timing features enable efficient scheduling for operators.
Comprehensive Protection Features: The machine includes several protection mechanisms to ensure safe and reliable operation, such as overload protection, leakage protection, grounding protection, compressor overload protection, and medium over-temperature (anti-drying) protection.
Configuration:
- Compressor: Two fully enclosed compressors with serial numbers and original packaging.
- Condensing Device: Two high-efficiency finned condensers, each with a condensing fan in original packaging.
- Heat Exchanger: One stainless steel plate-type heat exchanger.
- Heat Insulation: Rigid polyurethane foam insulation for optimal thermal protection.
- Shell: Cold-rolled sheet metal, folded and electrostatically sprayed for durability and corrosion resistance.
- Stirring Device: One complete stirring unit for effective fluid agitation in the cooling medium.
- Temperature Control Device: One high-precision temperature control unit to ensure accurate regulation.
- Stainless Steel Sample Baskets: Three stainless steel sample baskets for secure and stable sample handling during low-temperature testing.
