Core Principles: Flash Point & Fire Point
Pinpointing the exact thermal limit where heavily viscous petroleum products will ignite is an absolute necessity for industrial safety operations. That is exactly why commercial testing facilities depend on a Cleveland Open Cup Flash & Fire Point Tester to track down two specific thermal limits.
If we simplify the dense academic terminology, the actual physical science centers entirely around heat energy buildup, invisible gas accumulation, and a tiny spark source to determine:
- The Flash Point: The absolute lowest thermal level where your heated test sample generates just enough gaseous material to create a fast, split-second flash of light the moment an open flame sweeps across the testing cup. This happens the exact second the gas cloud reaches its lowest possible burn threshold.
- The Fire Point: The heat level where the combustion reaction remains sustained, meaning the liquid material does not just give off a quick visual flash, but actually holds a steady continuous flame for a minimum of five full seconds.
Standardized Methodology (ASTM D92 & ISO 2592)
This testing procedure cannot be conducted by mere laboratory guesswork. Running a Cleveland Open Cup Flash & Fire Point Tester demands strict, unwavering compliance with major global testing guidelines like ASTM D92 and ISO 2592.
The physical method follows a highly rigid structural routine: you pour the liquid substance into a solid brass testing cup and turn on the controlled 0.5KW internal heating element. As the core temperature steadily climbs (handling thermal ranges from standard room temperature all the way up to 400°C), a carefully measured test flame sweeps horizontally across the top of the cup at specific heat intervals until ignition occurs.

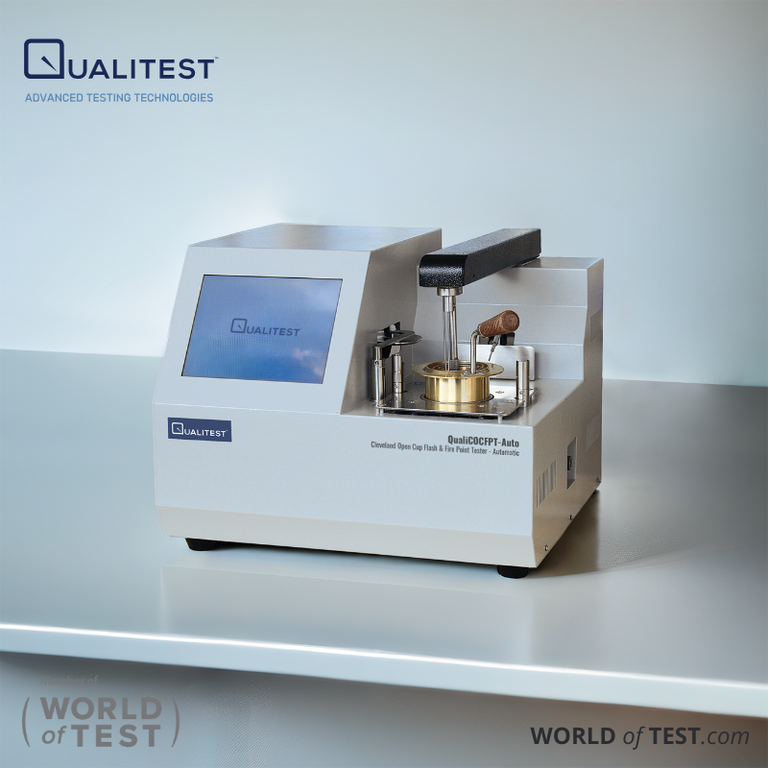

If your testing facility uses the fully automatic QualiCOCFPT™ Auto Cleveland Open Cup Flash & Fire Point Tester, the integrated internal computer entirely takes over this standard testing sequence. Using a bright 8-inch color LCD touchscreen, the testing machine manages the exact thermal requirements. It ramps up the heat at a fast-moving 14 to 17 °C every single minute during the starting phase, then automatically adjusts the heating output to maintain a highly steady 5 to 6 °C per minute climb just as it gets close to your expected flash limit. This strict thermal control guarantees total operational compliance with ASTM D92 regulations.
Automated Flame Ionization Detection
Computer-controlled testing units deliver high daily consistency to the busy laboratory floor by perfectly matching the accuracy of traditional manual testing gear. There are absolutely zero statistically significant differences in the final readouts between the two methods. The core physical science stays exactly the same, but the method of spotting the flame shifts from a subjective human observation to a highly precise electronic calculation.
The actual methodological difference comes down to how the testing routine is handled inside the compact 15 kg chassis of the QualiCOCFPT™ Auto:
- Electronic Flash Detection: Instead of depending on manual visual observation to catch a brief, split-second flash, the machine utilizes the science of a highly sensitive Flame Ionization Detector (FID). It catches the visual flash within an incredibly tight ±2 °C window, while constantly showing detection sensitivity levels and live real-time testing status straight on the digital interface.
- Consistent Thermal Control: By taking charge of the thermal heating ramp, timing the flame sweeps with your choice of dual electronic and gas ignition methods (running smoothly on standard LPG or Butane), and kicking in a swift internal cooling function the second the test finishes, the automated method entirely removes human handling errors from the equation.
