Core Principles: Static vs. Kinetic Friction
Knowing exactly how slippery or sticky your packaging films are relies on a straightforward math equation. A proper Coefficient of Friction Tester calculates the ratio between the sideways pulling force required to drag a surface and the actual heavy downward weight pressing those two surfaces together.
When you run a material test on the Model FX-7300 (operating as a stand-alone COF Tester), you are calculating two critical theoretical values:
- Static Friction (The Initial Sticking Point): This is that initial, persistent starting resistance, representing the exact amount of mechanical force required to break a resting hold and get two stationary surfaces to finally start sliding.
- Kinetic Friction (The Continuous Slide): This is the ongoing, continuous drag that continuously resists the material once it is already in motion.
Standard physics models tell us that slippery plastics and thin packaging films behave very differently depending on how hard they are squeezed and how thick they are. Because polymers and multi-layered sheets exhibit highly variable and unpredictable behaviors under different loads, you absolutely need a highly standardized, fully automated testing method.
Methodology: Horizontal Sled Test

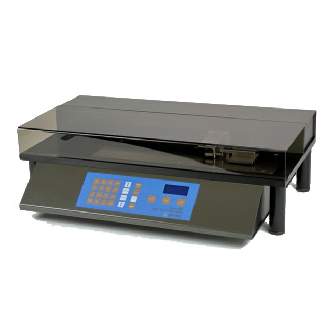

To get these numbers exceptionally precise, meaning highly detailed but not outrageously confusing to read, factories all over the globe use a classic bench-top setup called the horizontal flat-bed pull test. It’s the exact, proven science integrated inside our digital Coefficient of Friction Tester - FX-7300.
This process follows the gold-standard rulebooks of ASTM D1894, which governs plastic wrapping, and TAPPI T-549, which dictates uncoated paper sheets, playing out in a few highly streamlined steps:
- The Base Setup: You tape or clamp your material down completely flat on the sturdy, stationary metal table.
- Applying Normal Load: You wrap another piece of your material around a heavy, standardized block, known as the sled, and place it directly on top of the bottom sheet.
- The Steady Pull: A mechanical traction unit drags that weighted sled across the bottom surface at an incredibly steady rate. The FX-7300 utilizes a fixed, standard sled speed of 6 inches per minute, while also offering extra speed settings of 1, 2, 5, and 10 ipm specifically for peel and seal testing methods.
- Data Acquisition: Highly sensitive force sensors detect every single micro-level resistance, sampling at an incredible 1,000 times per second to capture the exact friction profile.
Minimizing Measurement Variables
To be completely candid, even minor fluctuations in room temperature, pulling speeds, and testing weights can heavily distort your test results. To eliminate these measurement discrepancies and enforce strict scientific parameters, the Model FX-7300 boasts an accuracy of ± 0.15% Full Scale and a sharp resolution of 0.1 gram. You obtain highly reliable, precise data about your materials, whether you are utilizing the 0 – 1135 gram (2.5 lb) or the heavier 0 – 2270 gram (5.0 lb) measurement range.
By selecting the optional heated platen, you can test your films under elevated temperatures that perfectly replicate a demanding production environment. You can run the machine strictly in Digital/Manual mode as a stand-alone unit, or upgrade with the Model FX-7200 software for full computer control and real-time graphical data displays via USB. Ultimately, turning intricate friction theories into clear, easy-to-read numbers with this advanced COF Tester gives you the exact facts you need to manufacture high-quality products, stop expensive packaging waste, and protect your operational budget.
