Compact Pure Water System - QualiPWS™ C

QualiPWS™ C is a benchtop deionized water system that delivers reagent grade water from a 273 mm wide cabinet weighing 20 kg. Qualitest North America offers the Compact Pure Water System where bench space is short and the water demand is steady rather than heavy. Three output rates cover 20, 40, and 60 liters per hour. Storage sits inside the housing, so nothing else has to go on the bench.

Deionized water comes off the system above 17.5 MΩ·cm at 25 °C, clearing the ASTM D1193 Type II resistivity requirement. A second outlet gives first-pass RO water for autoclave fill, glassware washing, and chamber humidifiers. Both outlets run from a three-button panel that dispenses either grade without menu navigation. Flow reaches 2 liters per minute, drawn from a sealed 1.8-liter pressure tank.

A white LCD panel measuring 68 × 87 mm reports what the system is doing: flushing, producing water, tank full, feed shortage, or maintenance due. Two sensors watch RO and deionized water quality and raise an alarm when either drifts. The controller tracks remaining life on all four consumables and prompts replacement before output falls off. Power draw scales with output, from 48 W on the 20 L/h model to 120 W on the 60 L/h model.

Compact Pure Water System - QualiPWS™ C Applications

The QualiPWS™ C fits laboratories that need reagent water close to the work rather than piped from a central plant. Common placements include the following.

  • Glassware Rinsing at the Sink: deionized final rinse that dries clear on pipettes, flasks, and beakers
  • Autoclave and Sterilizer Fill: RO water that keeps scale off chamber walls and heating elements
  • Buffer, Media, and Standard Solutions: reagent grade water for daily makeup work in microbiology and analytical labs
  • Feed for Type I Polishing Units: pretreated water that reduces cartridge load on a downstream ultrapure system
  • Titration and General Wet Chemistry: reproducible blank water for volumetric and colorimetric methods
  • Satellite Bench Supply: a second purification point beside the work, cutting trips to a central system
  • Small Clinical and Veterinary Laboratories: dilution and rinse water for bench analyzers in limited floor space
  • Environmental and Stability Chambers: humidifier water that leaves no residue on nozzles or sensors
  • Quality Control Benches in Production Areas: on-site reagent water for in-process checks without a plumbed loop

Standards

Water from the QualiPWS™ C is designed to align with the reagent grades listed below. Demonstrating any specific grade depends on incoming water quality, cartridge condition, and sampling practice.

  • ASTM D1193 - Standard Specification for Reagent Water (Type II)
  • ISO 3696 - Water for Analytical Laboratory Use: Specification and Test Methods (Grade 2)
  • JIS K0557 - Water Used for Industrial Water and Wastewater Analysis
  • USP - United States Pharmacopeia, Purified Water technical requirements
  • EP - European Pharmacopoeia, Purified Water technical requirements
  • JP - Japanese Pharmacopoeia, Purified Water technical requirements

Compact Pure Water System - QualiPWS™ C Key Features

The QualiPWS™ C strips the feature set back to what a working bench actually uses, which keeps both the footprint and the purchase price down.

  • Small Footprint: a 273 mm wide, 20 kg cabinet that leaves usable bench space beside it
  • Storage Built In: a sealed 1.8-liter pressure tank isolates stored water from air and holds it ready for immediate draw
  • Two Water Grades, Direct Dispensing: RO and deionized water come straight off the front panel with no menu to work through
  • Three-Button Acrylic Panel: a flat sealed control surface covering system setup, forced RO flushing, and both dispensing paths
  • 68 × 87 mm White LCD: shows flushing, water production, tank full, feed shortage, and maintenance status at a glance
  • Two-Point Quality Monitoring: sensors on the RO and deionized lines alarm as soon as either grade drifts out of range
  • Four-Consumable Life Tracking: remaining life on the pretreatment, RO, and DI cartridges displays live, with an automatic prompt at expiry
  • Forced RO Flushing: an operator-initiated flush clears salts off the membrane surface to limit scaling and extend module life
  • Scaled Power Draw: 48 W at 20 L/h, 72 W at 40 L/h, and 120 W at 60 L/h, all from a universal 100 to 240 V supply
  • 2-in-1 Composite Pretreatment Cartridge: a deep-folded 5 μm membrane and activated carbon fiber in one 12-inch body, with fiber media chosen to avoid the carbon fines that granular beds shed
  • High-Capacity DI Cartridges: a patented full-droop flow path keeps the resin bed from stratifying, holding 1.36 liters per cartridge and up to 2.72 liters across two positions
  • Patented Three-Chamber Cartridge Housing: one body accepts pretreatment, RO, and DI packs, with a quick clamp and error-proofing that prevents wrong-position fitting
  • Encrypted Cartridge Serial Codes: verifies consumable authenticity and records installation and replacement history
  • Injection-Molded Housing: a molded shell with simple contours that wipes down quickly and resists splash
  • Optional PE Storage Tank: a 60 or 120 liter double-layer HDPE tank with level sensor, cone-bottom drain valve, compound air filter, and LCD level readout for labs that outgrow the internal tank
  • Optional Tank UV Disinfection: an add-on module for the external tank that suppresses bacterial growth in stored water
  • Optional Remote Dispensing Arms: up to five per host, each with a color readout of resistivity, temperature, flow rate, and single or cumulative volume, 360-degree horizontal positioning, host circulation, three dispensing modes, and an optional 0.2 μm terminal microfilter

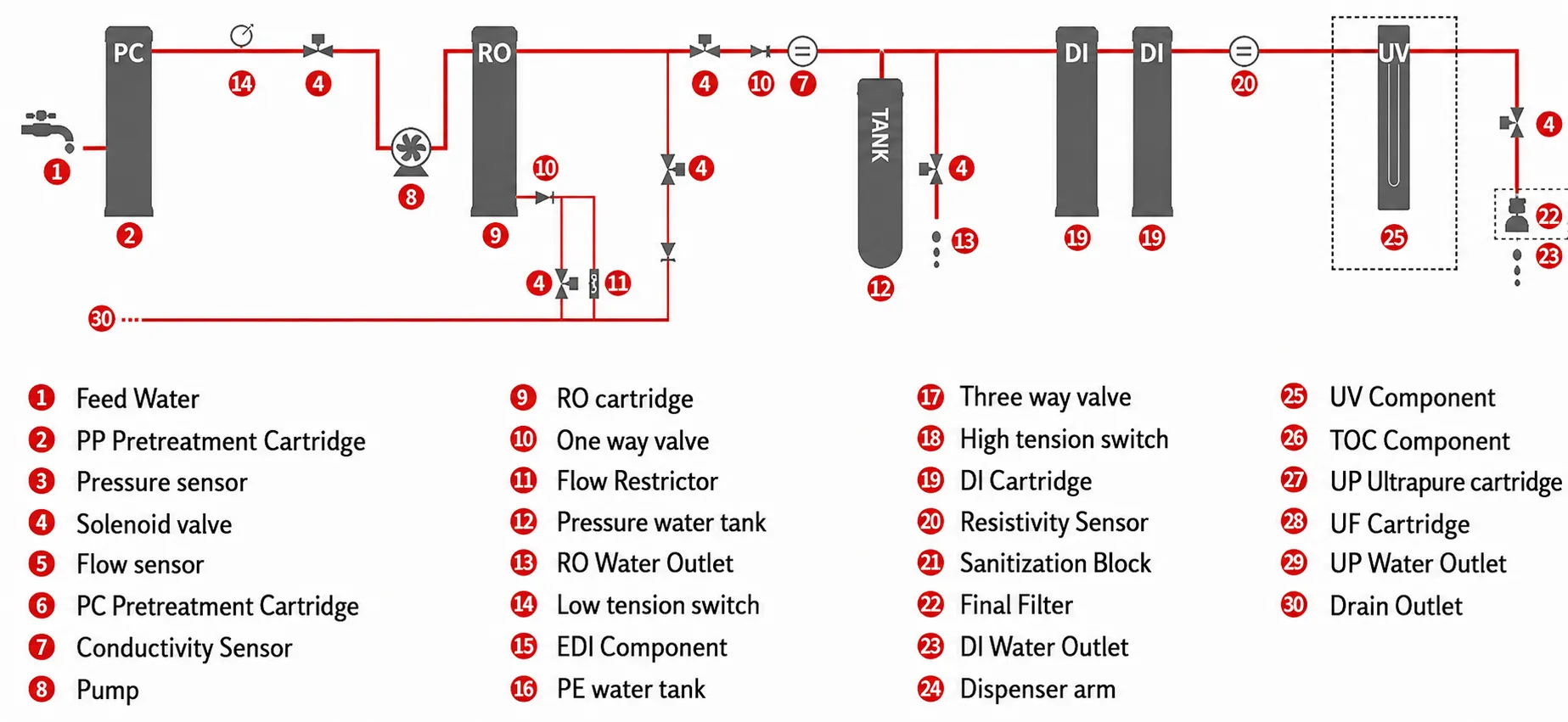

Theory and Method

Two purification stages sit in series because each one handles a job the other does poorly. Reverse osmosis strips the bulk ionic load first, rejecting 98 to 99 percent of dissolved inorganic salts and better than 99 percent of organic molecules above 300 Dalton at the membrane surface. Ion-exchange resin then polishes what remains. Feeding raw tap water straight to resin would exhaust the 2.72 liters of media quickly, so the membrane carries the bulk removal and the resin bed lasts far longer.

Free chlorine in municipal supply oxidizes polyamide membrane material, so it has to go before the water reaches the RO stage. The pretreatment cartridge handles particles and chlorine in one body: a deep-folded 5 μm membrane traps solids, and activated carbon fiber adsorbs chlorine and organics. Fiber form matters here, since granular carbon sheds fines that carry downstream and foul the membrane. A pump then raises pressure past the osmotic pressure of the feed, and a flow restrictor maintains the concentrate stream.

Resistivity gives the fastest read on how much ionic contamination survives the train. Pure water conducts poorly, so a sensor in the deionized line measures resistance across a fixed cell and reports it in MΩ·cm, where a higher number means fewer dissolved ions. The controller alarms when the reading falls, and a forced flush clears accumulated salts off the membrane surface between production cycles. On the bacteria and particle build, a double-layer PES microfilter at the outlet catches organisms picked up during storage.

Compact Pure Water System

Compact Pure Water System - QualiPWS™ C Technical Specifications

ParameterQualiPWS™ C-20 / C-40 / C-60QualiPWS™ C-20UT / C-40UT / C-60UT
ConfigurationStandardBacteria and particle reduction
Production Rate (1)20 L/h (C-20), 40 L/h (C-40), 60 L/h (C-60)20 L/h (C-20UT), 40 L/h (C-40UT), 60 L/h (C-60UT)
Dispensing Rate (2)Up to 2 L/minUp to 2 L/min
DI Water Resistivity at 25 °C (3)(4)>17.5 MΩ·cm>17.5 MΩ·cm
DI Water Conductivity at 25 °C (3)<0.057 µS/cm<0.057 µS/cm
DI Water Particles (5)Not applicable<1 per mL (>0.2 µm)
DI Water Bacteria (5)Not applicable<0.01 CFU/mL
RO Ion Rejection Rate (6)98% to 99% with new RO module98% to 99% with new RO module
RO Organic Rejection Rate (6)>99% (MW >300 Dalton)>99% (MW >300 Dalton)
RO Particle and Bacteria Rejection Rate (6)>99%>99%
Feed Water SourceTap waterTap water
Feed Water Pressure1 to 6 bar1 to 6 bar
Feed Water Temperature5 °C to 40 °C5 °C to 40 °C
Feed Water Conductivity<2,000 µS/cm<2,000 µS/cm
Feed Water Total Hardness (as CaCO₃)<300 ppm<300 ppm
Feed Water TOC<2,000 ppb<2,000 ppb
Feed Water Free Chlorine<3 ppm<3 ppm
Feed Water pH4 to 104 to 10
Feed Water Dissolved CO₂<30 ppm<30 ppm
DisplayWhite LCD, 68 × 87 mmWhite LCD, 68 × 87 mm
Water Quality Sensors2 (RO and DI lines)2 (RO and DI lines)
DI Resin Capacity1.36 L per cartridge, up to 2.72 L per host1.36 L per cartridge, up to 2.72 L per host
Voltage100 to 240 V, 50/60 Hz100 to 240 V, 50/60 Hz
Total PowerC-20: 48 W; C-40: 72 W; C-60: 120 WC-20UT: 48 W; C-40UT: 72 W; C-60UT: 120 W
Host Dimensions (L × W × H)273 × 555 × 568 mm (10.7 × 21.9 × 22.4 in)273 × 555 × 568 mm (10.7 × 21.9 × 22.4 in)
Host WeightApprox. 20 kg (44.1 lb)Approx. 20 kg (44.1 lb)

(1) Affected by inlet water quality, pressure, temperature, and RO membrane condition. (2) Affected by tank status and terminal filter. (3) Typical values that vary with the nature and concentration of feed water contaminants. (4) Resistivity can be displayed as a non-temperature-compensated value to suit USP requirements. (5) Requires the terminal microfilter, professional operating procedures, and correct sampling conditions. (6) Affected by the type of organics present in the feed water.

Standard Configuration

ItemQuantityDescription
Main Host1 setPurification host with automatic control system, LCD, and RO and DI dispensing outlets
Cartridge Set1 setComplete pretreatment, RO, and DI cartridge complement for the configured model
Pressure Water Tank1 setBuilt-in 1.8-liter sealed pressure tank for air-isolated storage and immediate dispensing
