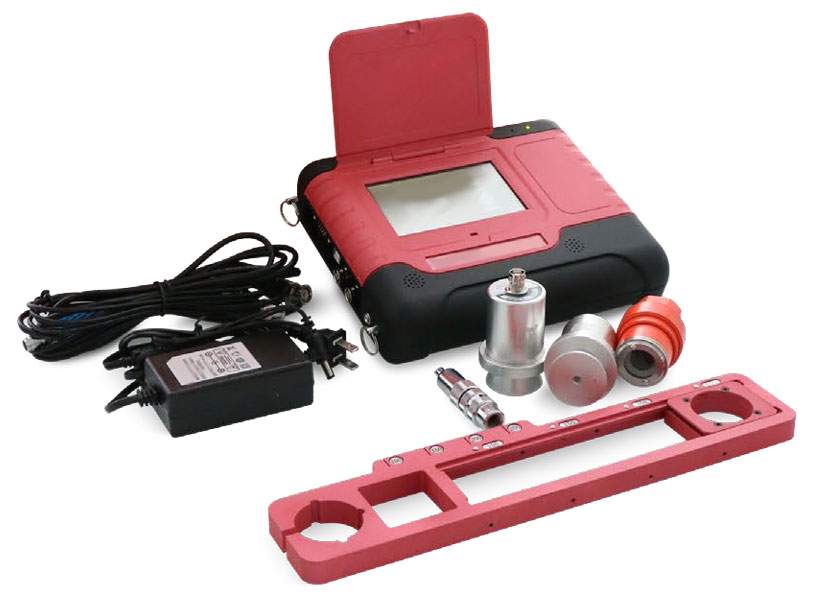

Concrete Crack Integrated Detector QualiCCID™ 50

Concrete Crack Integrated Detector QualiCCID™ 50 is designed for precise measurement of crack width and depth in bridges, tunnels, buildings, and roads.

Its advanced Windows-based software enables seamless data processing and analysis. Features include:

  • USB connectivity for easy data transfer
  • Export options for Word and Excel
  • Data saving and printing capabilities

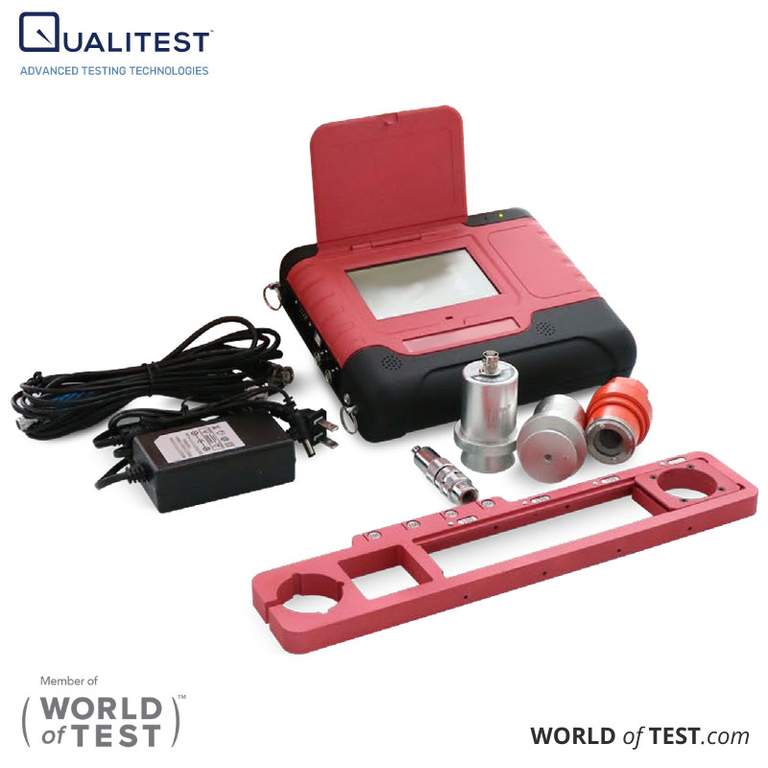

Concrete Crack Integrated Detector QualiCCID-50

Concrete Crack Integrated Detector QualiCCID™ 50 Features

  • The system features automatic crack detection and measurement with real-time display.
  • It offers two detection modes: standard and simplified depth measurement.
  • The precision-adjustable ultrasonic transducer bracket eliminates the need for manual marking, significantly enhancing efficiency.
  • With automated image recognition and intelligent width calculation, crack positioning requires no manual adjustments.

Concrete Crack Integrated Detector QualiCCID™ 50 Technical Specifications

Hardware platformEmbedded ARM 9 Hardware platform, WinCe5.0 operating system, true color, TFT Touch Screen
Crack width test rangeStandard Probe: 0.01mm-6.5mm
Premium probe: 0.005mm~3.5mm
Crack width test accuracyStandard probe: ≤±0.02mm
Premium probe: ≤±0.01mm
Crack depth test range10mm-500mm
Crack depth accuracy≤±5%
Image storage formatBMP or JPEG
Working time≥28 Hours
Working temperature-10°C~50°C
Working humidity≤90%RH
Power supplyRechargeable Lithium Battery
Net weight1.8kg
Gross weight4.6kg
Packing size420×330×125mm
