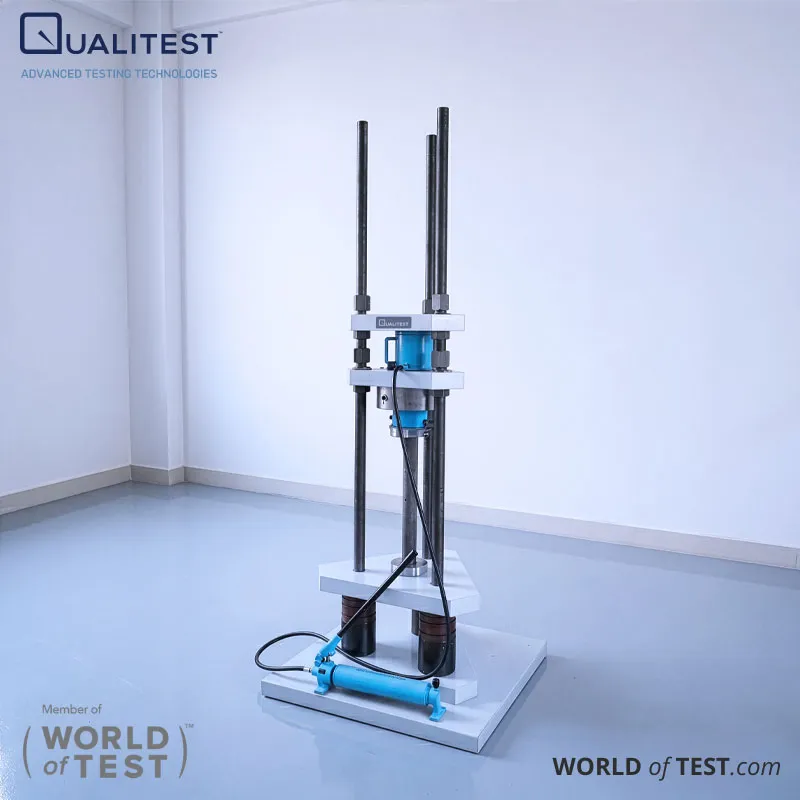

Concrete Creep Tester
A Concrete Creep Tester helps your lab measure time-dependent deformation under sustained compressive load. The QualiCCTR™ Series includes two configurations that use the same core test concept, but different monitoring and data capture levels. Choose QualiCCTR™ for practical manual measurement workflows, or QualiCCTR™ Pro when you need automated sensing and cleaner long-term records. Both options support long-duration compression creep programs for QC and research labs.
Comparison Table: QualiCCTR™ Basic vs QualiCCTR™ Pro
| Item | QualiCCTR™ Basic (Standard) | QualiCCTR™ Pro (Automatic) |
|---|
| Best for | Routine creep programs, budget-focused labs | Long-duration testing, research labs, high reporting consistency |
| Deformation measurement | Manual readings (commonly dial indicator based) | Sensor-based measurement (commonly LVDT/displacement sensor) |
| Data logging | Manual recording by operator | Automatic recording and data storage |
| Real-time display | Basic or limited | Touchscreen interface with live values |
| Environmental monitoring | Optional or external | Typically integrated temperature and humidity display/logging |
| Operator workload | Higher for long tests | Lower for long tests |
| Risk of transcription error | Higher | Lower |
| Typical upgrade path | Can be upgraded to sensors and logging | Already configured for automated monitoring |
| Available capacities | 500 kN and 1000 kN platforms | 500 kN and 1000 kN platforms |
| Standards alignment | ASTM C512/C512M, ISO 1920-9 | ASTM C512/C512M, ISO 1920-9 |
How the Test Works
Concrete creep testing measures strain that develops while a specimen is held under constant compressive stress. A prepared concrete specimen is loaded to a target level and maintained for an extended period under defined conditions. Deformation is recorded over time, then used to report creep strain and compare long-term behavior across mixes, curing regimes, and material systems. The Pro configuration reduces manual effort by automating sensing and logging.
How to Choose the Right Model
Choose QualiCCTR™ if:
- Your team can follow a manual reading schedule. ● You want a practical setup for standard creep programs. ● You prefer lower upfront complexity.
Choose QualiCCTR™ Pro if:
- You run long tests and want cleaner records. ● You need automatic logging for reporting and audits. ● You want real-time visibility with fewer manual checkpoints.
Why Choose Qualitest for Your Concrete Creep Tester
Choosing a Concrete Creep Tester is a long-term decision. Your test program can run for weeks or months, so the equipment, documentation, and support behind it matter as much as the frame itself. Qualitest focuses on delivering practical configurations, clear specifications, and dependable after-sales service for labs that need consistent creep data.
