Concrete Cylinder Moulds

Concrete Cylinder Moulds for ASTM and AASHTO Compressive Strength Testing

Qualitest’s Concrete Cylinder Moulds are engineered to produce precise cylindrical specimens for compressive strength and elasticity tests in accordance with ASTM C39, ASTM C192, AASHTO T23, and T126 standards. Our moulds are widely used by construction professionals and testing laboratories for accurate performance assessment of concrete mixes.

Available in standard sizes such as 4” x 8”, 6” x 12”, and others, our QualiMould™  Cylinder Moulds are offered in multiple material options:

• Plastic Cylinder Moulds: Lightweight, reusable or single-use, and ideal for fast field testing with easy stripping.
• Steel Cylinder Moulds: Designed for laboratory-grade accuracy, durability, and compliance with ASTM and AASHTO specifications.
• Cast Iron and Polyurethane Moulds: Provide high strength and ease of demoulding for high-volume testing environments.

All moulds feature smooth internal finishes to ensure consistent surface texture and easy specimen removal. Optional caps, lids, and stripping tools are also available for comprehensive support during the moulding and curing process.

Trust Qualitest Concrete Cylinder Moulds for precision, durability, and full standard compliance in your concrete testing workflow.

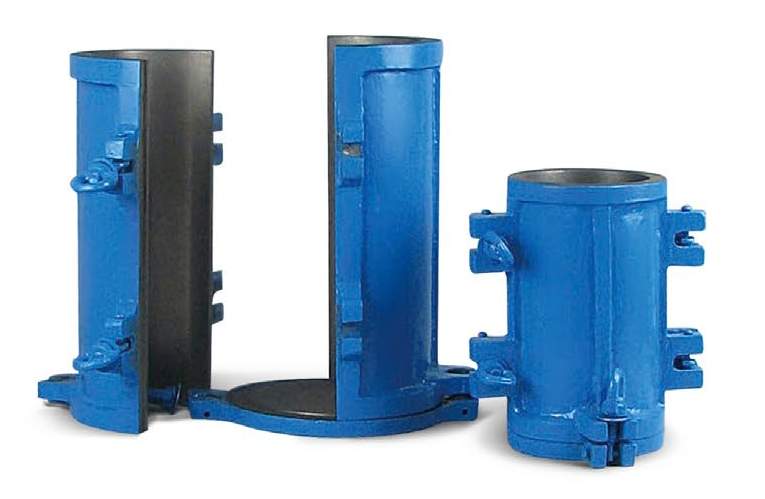

QCY-MC CAST IRON CYLINDER MOULD

This type of cylinder mold is made from cast iron with a black or blue coating. The inner surface is precision-ground on a lathe. It is built to be extremely durable and heavy.

QCY-CW STEEL CYLINDER MOULD

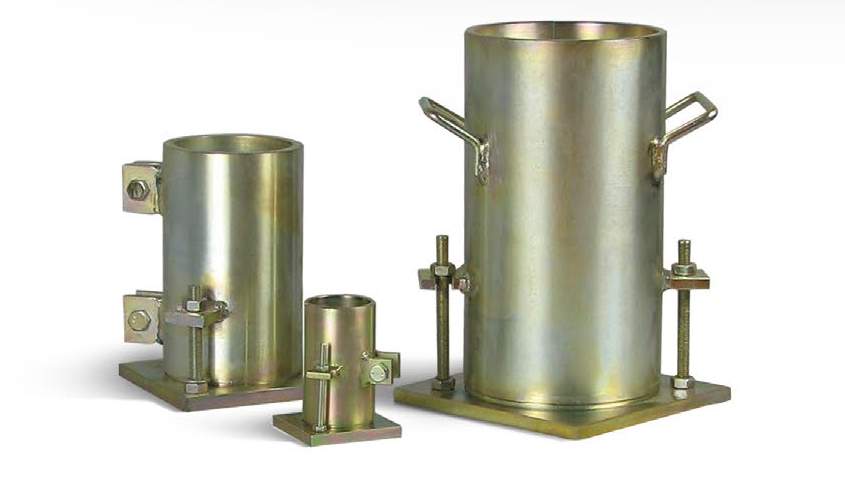

QCY-MS STEEL CYLINDER MOULD

These molds are made from plated steel for rust resistance and maintain their shape even under heavy use. They feature a split design with two quick-release clamps welded to the side. When opened, the mold slightly expands for easy specimen removal. A detachable base plate is included.

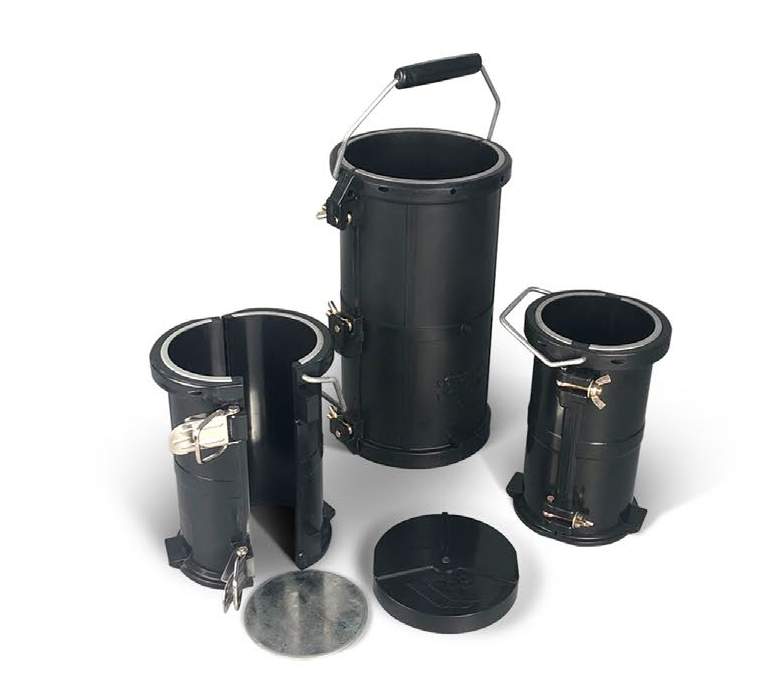

QCY-MP PLASTIC CYLINDER MOULD

The plastic concrete test cylinder mold is reusable, durable, and lightweight for easy transport. It features a two-piece collapsible design for quick assembly. Rust-proof and low-maintenance, it’s ideal for repeated use.

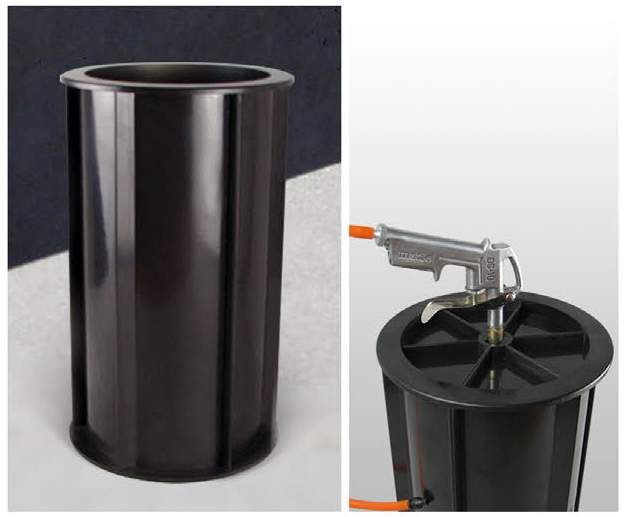

QCY-PP PLASTIC CYLINDER MOULD

An air gun is typically used for removing the mold. See the photo below for reference.

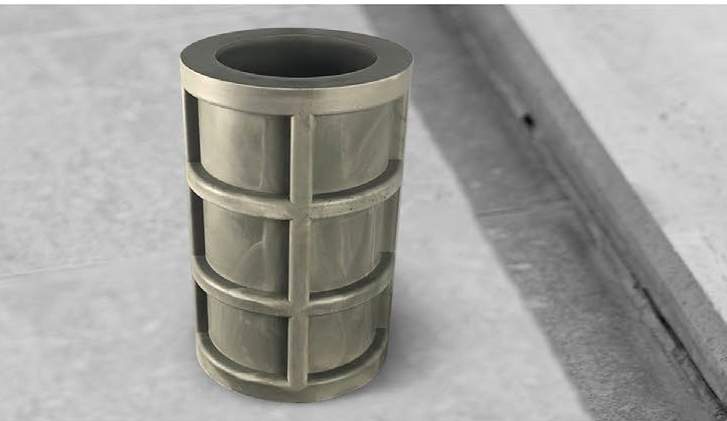

CM-PU150 POLYURETHANE CYLINDER MOULD

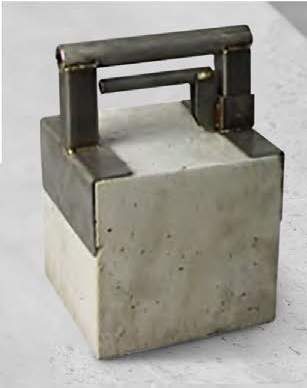

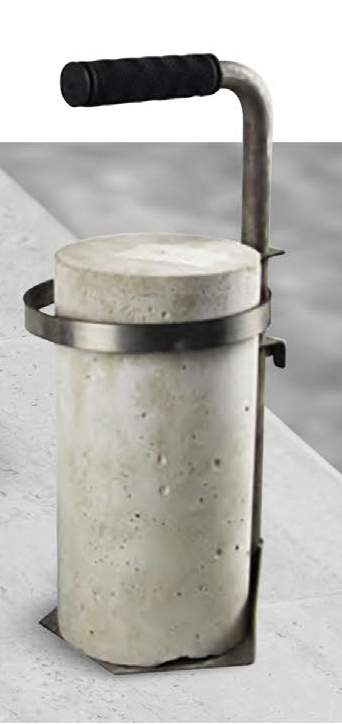

SPECIMEN CLAMPING TOOL

Used for transporting concrete specimen cubes and cylinders safely and efficiently.

	QST-J150 Tryout size：150x150 mm Weight:0.85kg
	QST-L150  Tryout size：150x300 mm Weight:1.67kg
