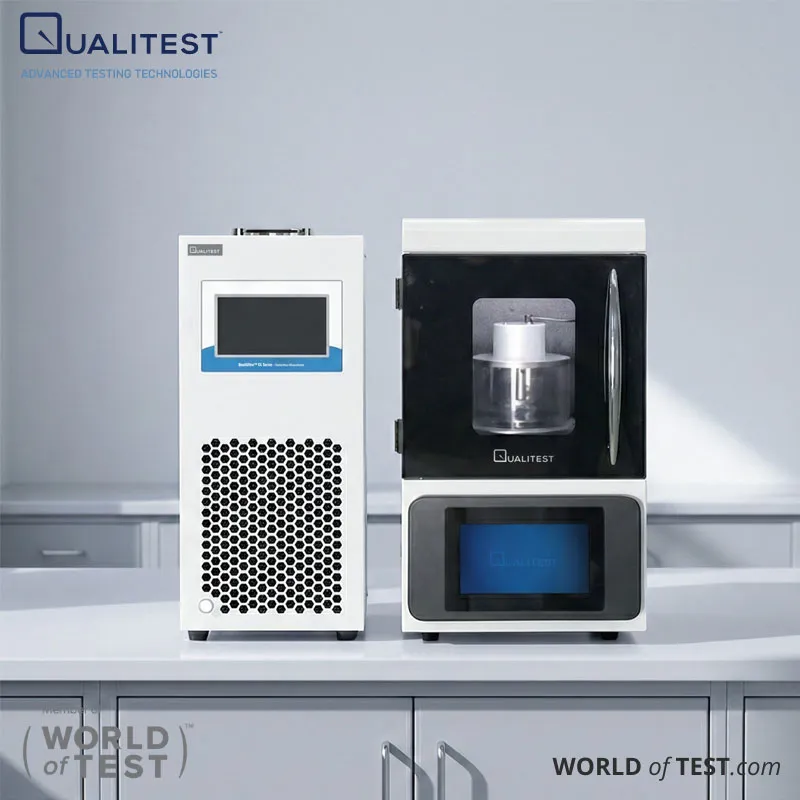

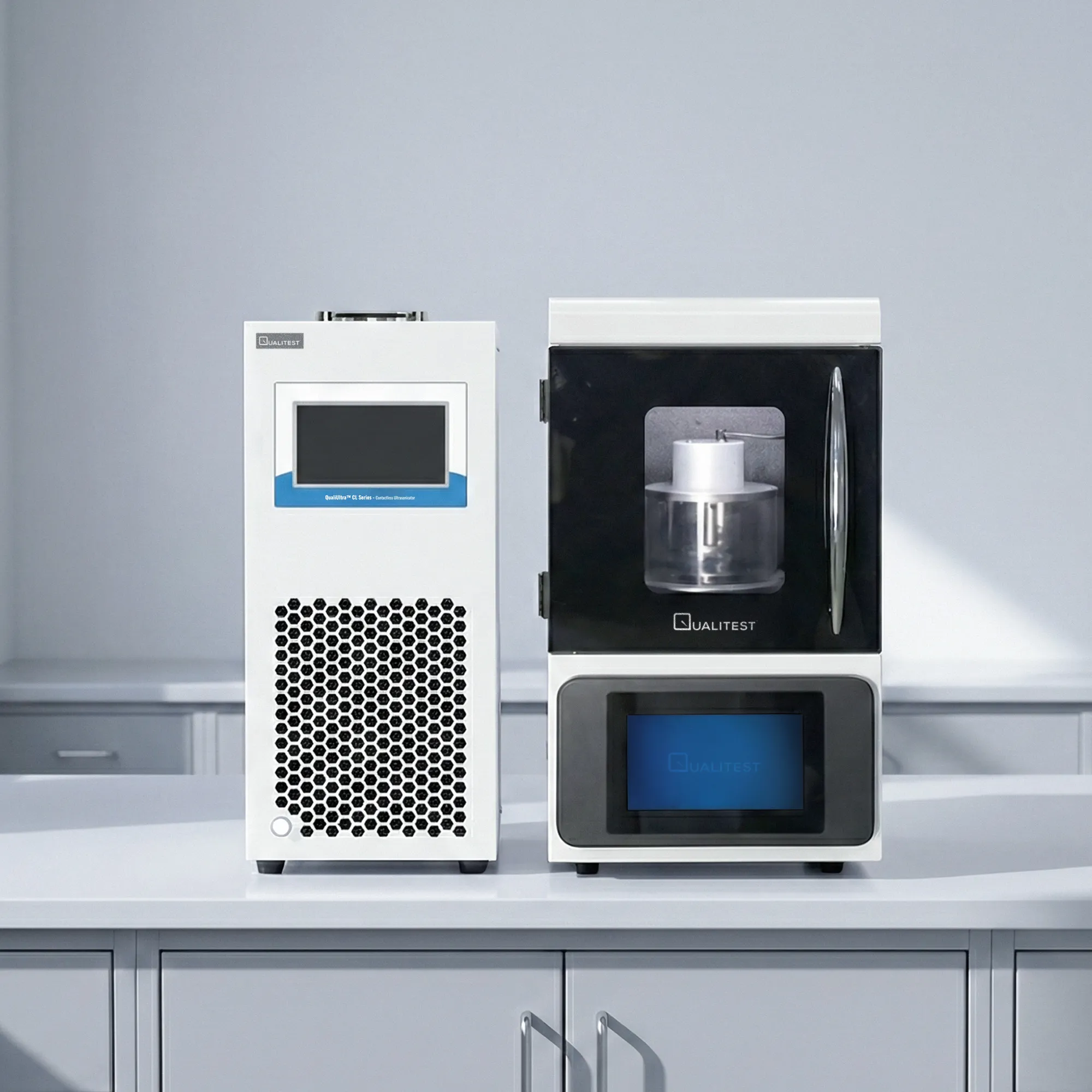

Contactless Ultrasonicator – QualiUltra™ CL Series

Contactless Ultrasonicator – QualiUltra™ CL Series
Parent Product
Contactless Ultrasonicator
Standards
IEC 61010-1
IEC 61326-1
ISO 20427

Contactless Ultrasonicator – QualiUltra™ CL Series

Ultrasonicator performance in the QualiUltra™ CL Series is built around non-contact, cup-type sonication that processes samples inside sealed tubes. This format helps reduce cross-contamination because the sample does not touch a probe. Multiple tubes can run in the same cycle, which improves throughput for routine lab workflows. Temperature display support helps track conditions during longer runs.

QualiUltra™ CL Series is a strong fit for sterile and ultra-trace sample handling, including workflows that need repeatable settings and minimal operator handling. The platform is designed to support small-volume processing, including ultra-low volumes, while keeping sample handling clean and consistent.

Contactless Ultrasonicator – QualiUltra™ CL Series Applications

  • ChIP assay sample preparation
    • Contactless processing supports chromatin fragmentation workflows while keeping samples inside sealed tubes. This helps reduce carryover risk between runs when multiple samples are processed.
  • Bacterial and cell disruption plus membrane protein extraction
    • Ultrasonic energy transfers through the cup to disrupt cells without direct probe contact. This approach supports cleaner handling for sensitive protein work and routine cell disruption workflows.
  • Sample preparation for high-throughput sequencing
    • Multi-sample holders support processing many tubes in one run. This helps standardize prep across batches and improves lab efficiency.
  • Homogenization and emulsification reactions
    • Contactless sonication supports mixing-driven reactions and emulsification steps where consistent energy delivery matters. Adjustable power and duty cycle settings help tune intensity to the protocol.
  • Ultrasonic processing of valuable reagents
    • Sealed-tube operation helps protect limited or high-value reagents from exposure and reduces sample handling steps. The non-contact format also reduces the risk of debris from probe wear entering the sample.
Contactless Ultrasonicator – QualiUltra™ CL Series

Standards

  • IEC 61010-1: Safety requirements for electrical equipment for measurement, control, and laboratory use.
  • IEC 61326-1: EMC requirements (immunity and emissions) for measurement, control, and laboratory equipment.
  • ISO 20427:2023: Standardized sample preparation methods that include ultrasonic dispersion procedures (probe-type and bath-type).

Contactless Ultrasonicator – QualiUltra™ CL Series Key Features

  • Non-contact sonication for cleaner workflows
    • Sealed-container processing helps eliminate direct probe-to-sample contact and reduces cross-contamination risk.
  • Enclosed environment for improved biological safety
    • The enclosed design helps control aerosols and supports safer handling during disruptive protocols.
  • High repeatability through adjustable parameters
    • Power, timing, and duty cycle settings support consistent processing across batches and operators.
  • Broad container compatibility
    • Multiple holders support common tube formats, and customized holders are supported for certain volume ranges.
  • Isothermal-friendly processing with chiller support
    • Operation can be paired with cooling circulation to help manage heat rise during longer protocols.
  • Rotating tube stand for more uniform energy distribution
    • Automatic rotation supports more even exposure across tubes, improving consistency across the holder.
  • Low sample loss for ultra-low volume workflows
    • The platform is described for very small-volume processing, supporting protocols where sample is limited.

Theory and Method

This Ultrasonicator uses indirect ultrasonic energy delivered through a coupling medium inside a cup chamber. Cavitation and micro-streaming created in the surrounding medium transfer energy into sealed tubes, supporting cell disruption and biomolecule fragmentation without direct probe contact. That design helps reduce cross-contamination between samples and supports sterile handling.

A typical method starts with selecting a holder that matches tube size and volume. Place sealed tubes into the holder, set power percentage, duty cycle, and total time, then monitor temperature display during the run. Use a matching chiller or cooling circulation setup when temperature stability matters for proteins or nucleic acids. Remove tubes after the cycle and proceed to downstream extraction or analysis.

Contactless Ultrasonicator – QualiUltra™ CL Series Technical Specification

SpecificationQualiUltra™ CL 20 (Cup-Type)QualiUltra™ CL 40AQualiUltra™ CL 40B
Frequency20 kHz (±0.5 kHz)40 kHz40 kHz
Power1800 W2200 W
Adjustable power1–100%1–99%1–99%
Timing1–999 min
Duty cycle0.1–99.9%
Tank volume900 mL1.5 L3 L
Temperature displayAvailable
Tube holder capacity

0.5 mL × 12 wells;

2 mL × 12 wells;

0.2 mL × 12 wells;

customizable 5–50 mL

1–2 mL × 16 wells;

5 mL × 8 wells;

10–15 mL × 8 wells

1–2 mL × 32 wells;

5 mL × 20 wells;

10–15 mL × 17 wells

Voltage220 V ±0.5, 50 Hz220/110 V ±0.5, 50/60 Hz
Matching chillerStandard equipment support—
