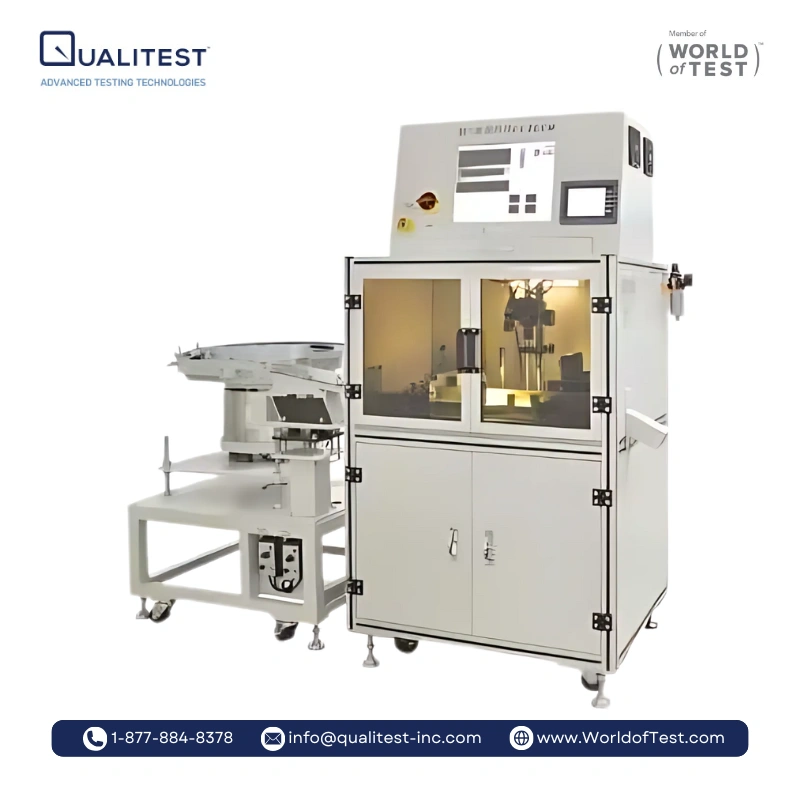

Conveyor Optical Sorting Machine – QSS-C07

Simple measurement machine which can satisfy most inspection needs.  Adaptable for nut, rivet, roller, washer, stud and product can stand stably on the belt.

Inspection parameters

• Diameter, Hole diameter

• Length

• Width

• Height, Thickness

• Surface defect

• Deformed, Broken

• Different shape

• Crack

• Burrs, Chips

• Across Corner

• Across Flat

• Chamfer angle

• Included angle

• Arc radius

• Concentricity

• Roundness

• With coating

• With mark

• With cut/tapering

• Parallel edge length

• Broken pin, Recess depth

• With thread

• Fine or coarse thread

• Thread numbers

• Pitch

• Slanted thread

• Minor diameter

• Major diameter

How checks are performed

The operator loads the test material in bulk into the feeder. He or she may then choose the parameter and the tolerance range for the test. The feeder inputs each unit onto the conveyer belt entering the main sorting chamber. As the sample unit passes into the test area, 3 CCD cameras inspect the sample unit from an angle on the top, the side and 45o to the horizontal. The image is gathered and fed through the circuitry to be displayed on the monitor positioned above the machine. Computer analysis then takes place to either accept the unit or reject it based on previously inputted parameters and tolerances. The unit is destined for the bin collecting acceptable units or the bin gathering the rejected units.
