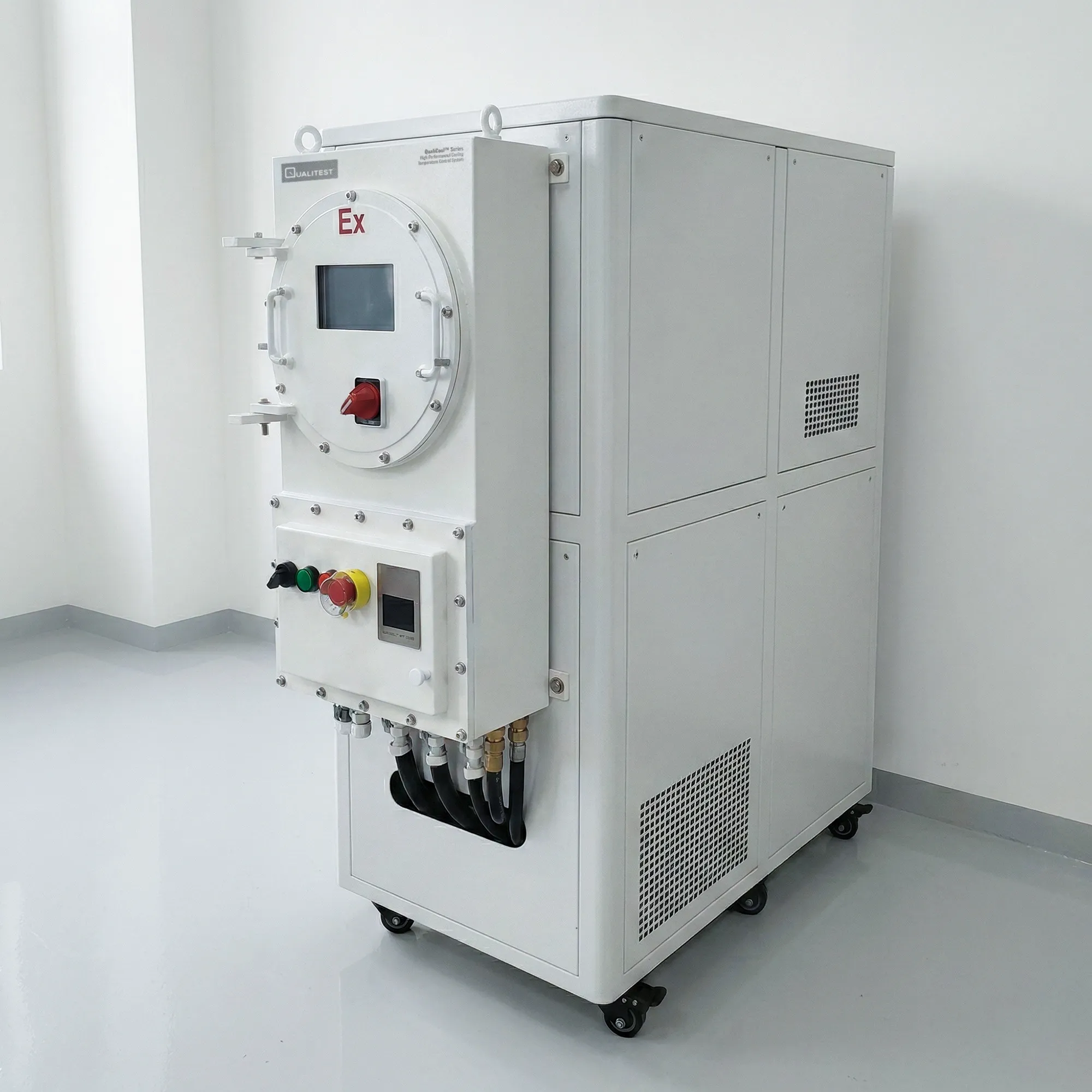

Cooling Temperature Control System (–120 to –70°C) – QualiCool™ Series

Cooling Temperature Control System (–120 to –70°C)

Process Thermostat and Cooling Temperature Control System performance matters most at extreme sub-zero ranges. QualiCool™ Series is a low-temperature circulating chiller designed to deliver stable, repeatable cooling for closed-loop temperature control in reactors, jacketed vessels, condensers, and external heat exchangers.

It circulates a thermal fluid through the user’s process loop and removes heat using a refrigeration system to maintain a setpoint from –120°C to –70°C, depending on load and fluid selection.

This system is built for labs and pilot-scale environments that need controlled low temperatures without large cryogenic infrastructure. It supports continuous operation, controlled ramping, and stable circulation to help maintain consistent process conditions during sensitive material studies, reaction development, and thermal characterization workflows.

Cooling Temperature Control System (–120 to –70°C) – QualiCool™ Series Applications

  • Low-temperature reaction control (jacketed reactors): Maintains a stable reaction temperature for kinetic studies and heat removal during exothermic steps when sub-zero control improves selectivity and safety.
  • Crystallization and precipitation processes: Controls cooling profiles to influence crystal size distribution and repeatability, especially when nucleation behavior is temperature-sensitive.
  • Condensation and cold-trap support: Provides external cooling for condensers or traps to improve solvent recovery, vapor capture, and process stability.
  • Materials and polymer testing: Supports cold conditioning, thermal cycling support rigs, and low-temperature exposure setups where controlled circulating fluid is required.
  • Instrument and sensor verification at sub-zero temperatures: Useful as a circulating cold source for fixtures or heat exchangers used in calibration and verification routines (setups vary by lab).
Cooling Temperature Control System

Standards

  • IEC 61010-1 – Safety requirements for electrical equipment for measurement, control, and laboratory use (general requirements).
  • IEC 61326-1 – EMC requirements for electrical equipment for measurement, control, and laboratory use.
  • IEC 60751 – Industrial platinum resistance thermometers (commonly referenced for Pt100 RTD sensor characteristics when applicable).

Cooling Temperature Control System (–120 to –70°C) – QualiCool™ Series Key Features

  • Ultra-low temperature control range suited for deep sub-zero process cooling (–120 to –70°C range).
  • Stable circulating output for more consistent jacket/coil temperature control during long runs.
  • Multiple capacity options so labs can match cooling power to load size and ramp requirements.
  • High-flow circulation choices to support different pressure drop and heat exchanger designs.
  • Compact, floor-standing design that integrates refrigeration and circulation in one unit.
  • Industrial connection sizing options to match common process loop plumbing needs.

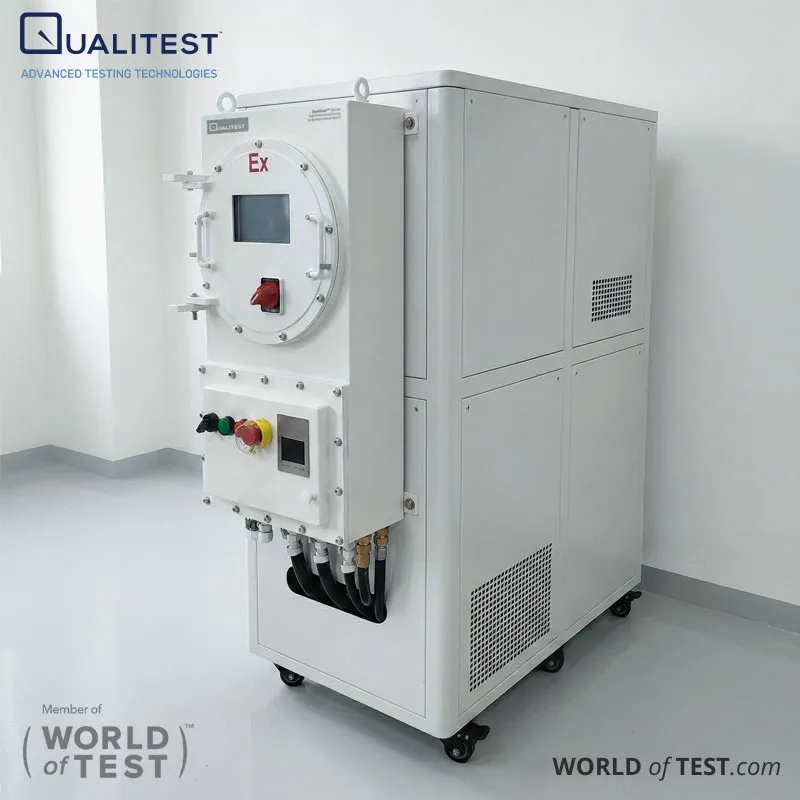

  • Optional build configurations (e.g., stainless chassis / explosion-proof variants) depending on site requirements (availability depends on supplier configuration).

Theory and Method

QualiCool™ Series operates as a closed-loop circulating refrigeration system:

  1. Thermal fluid circulation: A pump drives a selected heat-transfer fluid through the external process loop (reactor jacket/coil/heat exchanger).
  2. Heat absorption: The fluid absorbs heat from the user’s process and returns warmer to the unit.
  3. Refrigeration cooling: The chiller removes heat from the returning fluid using a refrigeration circuit and heat exchanger.
  4. Control loop: A temperature controller (commonly PID-based) regulates compressor/valves and circulation behavior to maintain the setpoint across changing loads.

Cooling Temperature Control System (–120 to –70°C) – QualiCool™ Series Technical Specification

ParameterQualiCool™ 30QualiCool™ 55QualiCool™ 95
Temp Range (°C)-120 to -70-120 to -70-120 to -70
Heating Power (kW)—
Cooling Power @20°C (kW)0.30.550.95
Max Flow (L/min)203535
Max Pressure (bar)0.71.01.0
Overall Dimensions L×W×H (mm)550 × 700 × 1650700 × 800 × 1650700 × 800 × 1650
Voltage380V/50Hz~3
