Crush Tester for Paper and Corrugated Cardboard - QualiCT™ 500

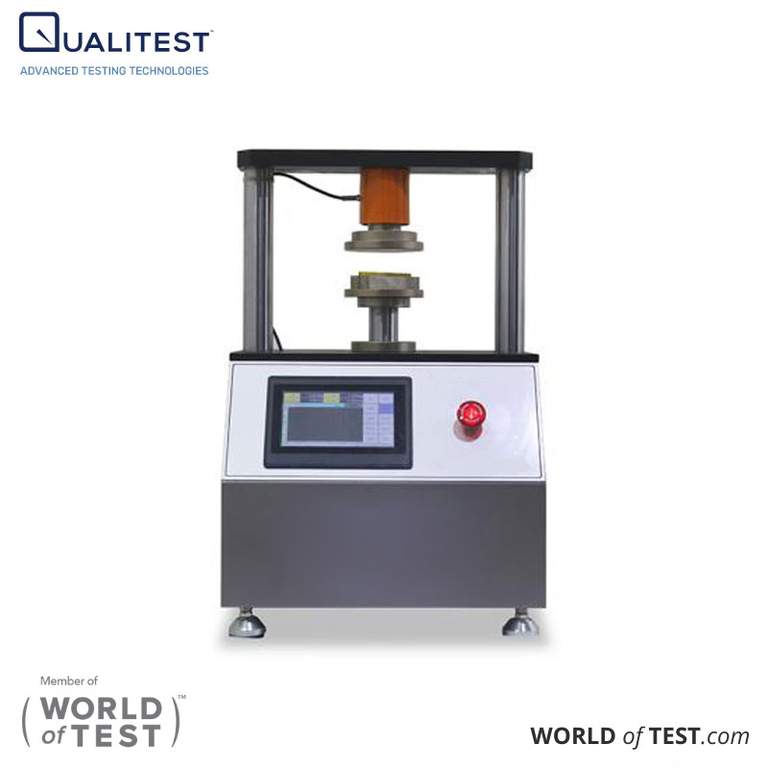

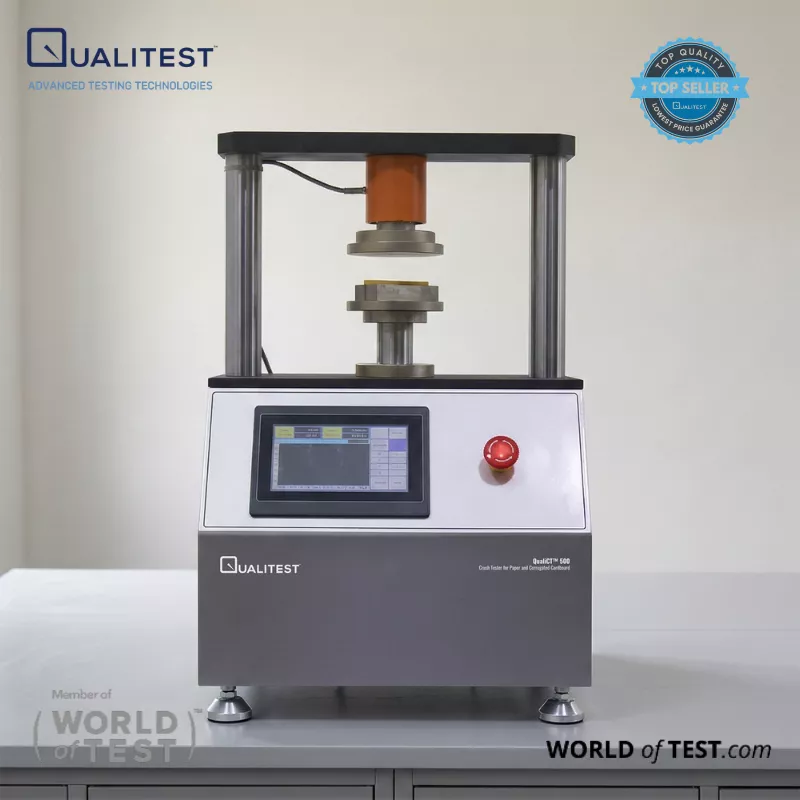

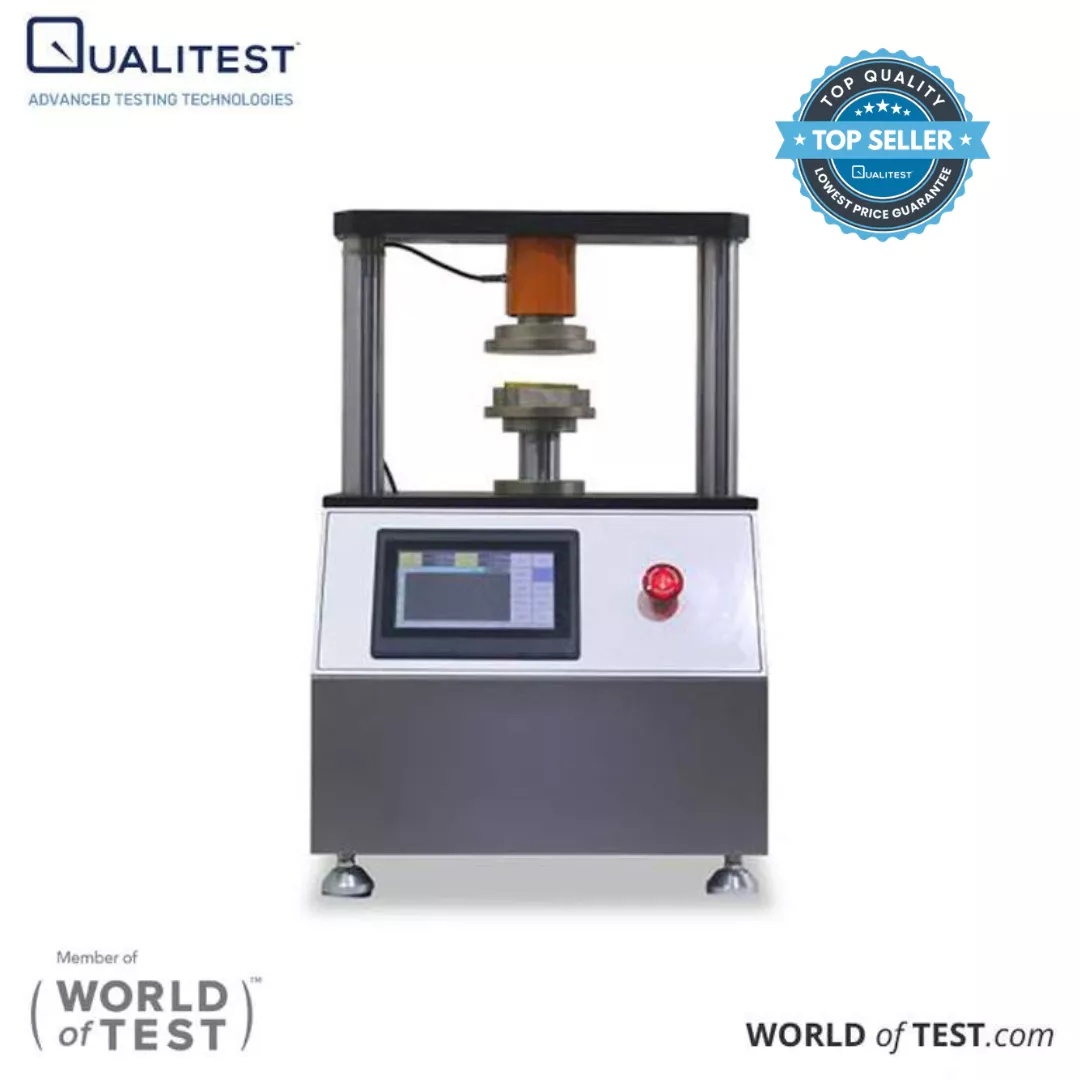

Crush Tester for Paper and Corrugated Cardboard - QualiCT™ 500 features a modern design based on mechanical engineering principles, human factors, and micro-processing technology. It is an upper pressure plate fixed type, offering high precision and is suitable for testing methods such as the Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test (PAT), and Concora Medium Test (CMT) Option.
Crush test will involve several functions and auxiliary tools.
1. ECT (Edge Compression Test): Sample is Corrugated board, cut to size with QualiCT™ 500X-10, placed vertically between QualiCT™ 500X-09 platens.
QualiCT™ 500 + QualiCT™ 500X-10 are required.
2. RCT (Ring Compression Test): Sample is Raw paper, cut to specified size with QualiCT™ 500X-11, rolled into a cylinder with QualiCT™ 500X-12, placed vertically between QualiCT™ 500X-09 platens.
QualiCT™ 500X-09 + QualiCT™ 500X-11 + QualiCT™ 500X-12 are required.
3. PAT (Adhesion Test): Sample is Corrugated board, cut to specified size with QualiCT™ 500X-11, pass PAT fixture through the corrugated board gap, place parallel to the QualiCT™ 500X-09 platen and squeeze both sides.
QualiCT™ 500X-09 + QualiCT™ 500X-10 + QualiCT™ 500X-13 are required.
4. FCT (Flat Press Test): Sample is Corrugated board, rounded sample with C75, placed horizontally between QualiCT™ 500X-09 platens.
QualiCT™ 500X-09+ C75 (100cm²) are required.
RCT accessories
The QualiCT™ 500X-12 RCT accessories are essential for the Ring Crush Test. They serve as the ideal testing equipment for quality control, inspection, and support departments in the paper, packaging, and other industries.
| Model | QualiCT™ 500X-12 |
|---|
| Specimen Holder | Inner Diameter | 49.30 ± 0.05(mm) |
|---|
| Tank Depth | 6.35 ± 0.25(mm) |
|---|
| Thickness of the Specimen (mm) | 0.15~0.17 | 0.171~0.20 | 0.201~0.23 | 0.231~0.28 | 0.281~0.32 | 0.321~0.37 | 0.371~0.42 | 0.421~0.49 | 0.491~0.57 | 0.571~0.67 | 0.671~0.77 | 0.771~0.90 | 0.901~1.00 |
|---|
| Inner Disc Diameter (mm) | 48.80 | 48.70 | 48.60 | 48.50 | 48.30 | 48.20 | 48.00 | 47.80 | 47.60 | 47.30 | 47.00 | 46.60 | 46.20 |
|---|
| Dimension & Weight | 33×27×8cm (L×W×H), 2.5kg |
|---|
Pin Adhesion Test Grip
These grips are used to hold samples during the Pin Adhesion Test for corrugated board.
| Model | QualiCT™ 500X-13 |
|---|
| Applicable flute type | A/B/C flute type |
|---|
| Pin diameter | Φ3mm (A flute type), Φ2mm (B/C flute type) |
|---|
| Size | (100×50×45)mm |
|---|
| Grips quantity | One motherboard, 4 comporres (A/B/C1/C2) |
|---|
| Weight | 0.8Kg |
|---|
ECT Sample Cutter
The QualiCT500X-10 Corrugated Cardboard ECT/PAT Sampling Cutter is designed to provide precise samples for the Edge Crush Test. This equipment quickly and accurately cuts samples to meet the size requirements for corrugated cardboard and carton manufacturing. It is an ideal testing tool for quality control, inspection, and support departments in the paper, packaging, and related industries.
| Model | QualiCT™ 500X-10 |
| Sampling Dimension | ECT: 100mm × 25mm
PAT: 80mm × 25mm |
| Sampling Thickness | ≤18mm |
| DIM Error | ±0.5mm |
RCT Sample Cutter
The QualiCT™ 500X-11 Sampling Cutter is designed to obtain precise samples for the Ring Crush Test. It is an ideal testing tool for quality control, inspection, and support departments in the paper, packaging, and related industries.
| Model | QualiCT™ 500X-11 |
| Dimension | 152.4 × 12.7mm |
| Sampling Thickness | 0.1-1.0mm |
| Parallelism | <0.015mm |
| Dimensions | 670 × 450 × 470mm |
| Weight | 35kg |
FCT Test
Circular Sample Cutter
- Control Mode: Manual Cutting area: 100cm2
- Cutting diameter: Φ112.8mm Cutting thickness: 5mm
- Schroder Spare blades (4 pieces / Made in Germany) - Cutting mat
- Certificate of quality
- English manual
