Dichloromethane Resistance Tester QualiDRT50

Dichloromethane Resistance Tester
Parent Product
Plastics Pipe / PVC Testing Equipment
Product Categories
Plastics PVC / Pipe Testing Equipment
Standards
ISO 9852-2007
Download PDF Brochure
Dichloromethane Resistance Tester (PDF)
View PDF

Dichloromethane Resistance Tester

The QualiDRT50™ Dichloromethane Resistance Tester is a specialized laboratory instrument designed to evaluate the resistance of unplasticized poly(vinyl chloride) (PVC-U) pipes to dichloromethane (DCM). This system provides a reliable method for manufacturers and quality control laboratories to verify material integrity and ensure PVC-U compounds are correctly processed.

A key design priority is operator safety: the instrument uses a deep water layer to cover the solvent surface, significantly reducing dichloromethane evaporation and protecting personnel from vapor exposure.

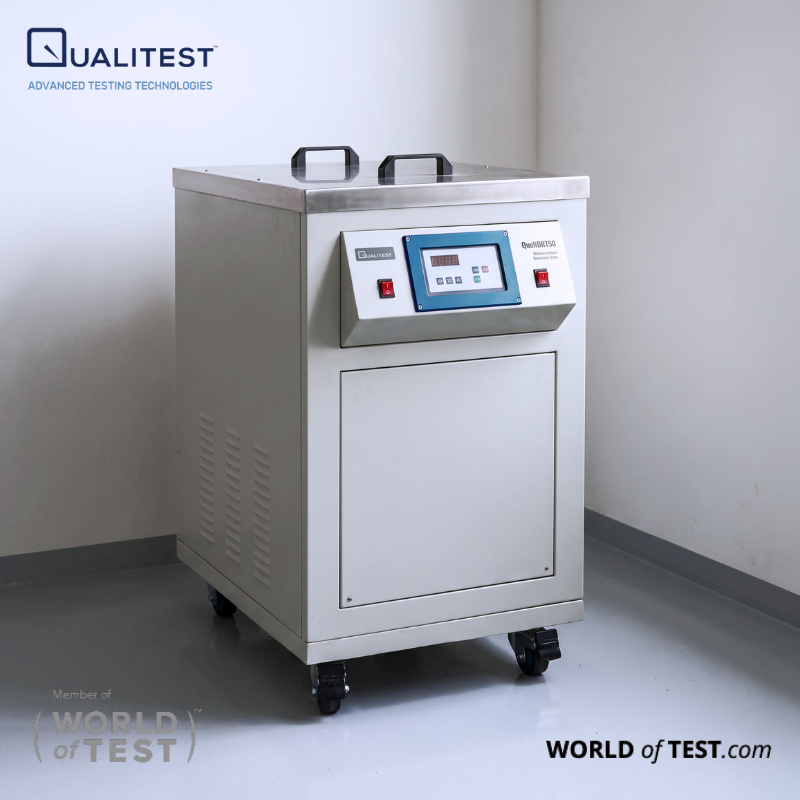

Dichloromethane Resistance Tester - QualiDRT50™

Applications

  • Incoming QC Inspection: Verifying PVC-U pipe stock from suppliers.
  • In-Process Quality Control: Monitoring integrity during the manufacturing process.
  • Finished Product Certification: Testing for third-party laboratory verification.
  • R&D Verification: Testing new PVC-U compound formulations.
  • Regulatory Compliance: Meeting standards for building and pressure piping systems.
  • Academic Research: Materials science studies on thermoplastic compounds.

Standards

The QualiDRT50™ Dichloromethane Resistance Tester is engineered to fully comply with the following international test standards:

  • ISO 9852 — Unplasticized PVC Pipes: Resistance to Dichloromethane
  • ASTM D1784 — Rigid PVC Compounds (material classification)
  • ISO 1060 — PVC-U Pipes for Cold Water Supply
Dichloromethane Resistance Tester QualiDRT50

>

Dichloromethane Resistance Tester QualiDRT50
Dichloromethane Resistance Tester QualiDRT50Dichloromethane Resistance Tester QualiDRT50

Dichloromethane Resistance Tester Key Feature

  • Integrated Refrigeration: Includes a dedicated refrigerator unit and outdoor installation rack for cooling-capable control.
  • Safety-First Design: Minimized solvent surface area and water cover layer reduce chemical evaporation.
  • High Precision: Bath uniformity of ±0.5 °C ensures repeatable and comparable test results.
  • Standardized Testing: Directly accommodates the 160 mm specimen length required by ISO 9852.

Theory and Method

Testing Method (ISO 9852)

  1. Specimen Preparation: A 160 mm pipe section is cut and chamfered according to its wall thickness.
  2. Conditioning: The bath is stabilized at the target temperature (between 10 °C and 50 °C).
  3. Immersion: The specimen is immersed in dichloromethane for exactly 30 minutes under a water safety layer.
  4. Drying: The specimen drips in the water layer and is then air-dried.
  5. Inspection: The chamfered surface is visually inspected for signs of attack, such as softening or delamination.

Dichloromethane Resistance Tester QualiDRT50™ Technical Specifications

SpecificationDetails
Temperature Range10℃ to 50℃
Temperature Uniformity±0.5℃
Temperature Resolution0.1℃
Control Interface

LED digital display with keypad

Specimen Length

160 mm

Test Time0 to 99 min
Test Bath Dimension (mm)φ250 × 180 mm
Voltage220VAC 50Hz 3kW (110V is also available)
Overall Dimensions530 × 770 × 970 mm (L × W × H)
Power Consumption1.6 kW

Standard Configuration

  • QualiDRT50™ Test Host Unit
  • Refrigerator Unit
  • Outdoor Unit Installation Rack
  • User Manual (English)
