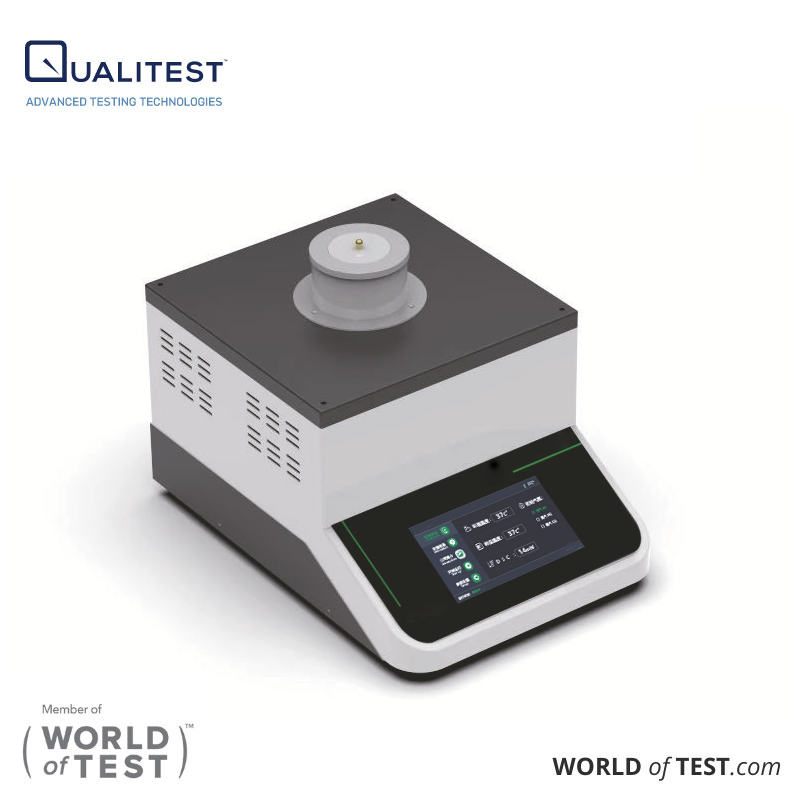

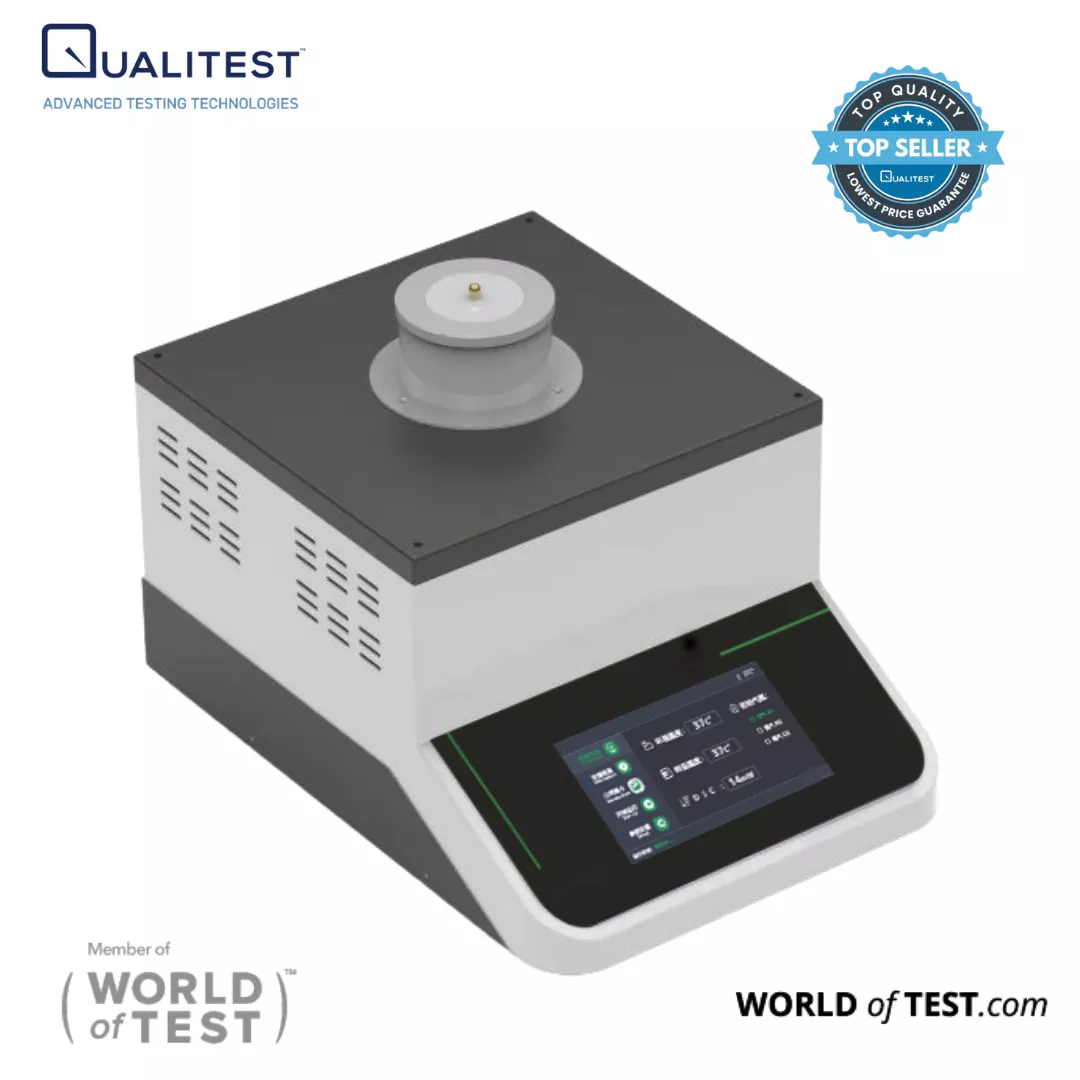

Differential Scanning Calorimeter DSC-200A

Differential Scanning Calorimeter DSC-200A is a high-performance instrument designed for advanced industrial thermal analysis. It integrates a precision DSC system with a built-in industrial-grade computer, all managed through a user-friendly 7-inch industrial touch-screen LCD interface.

Differential Scanning Calorimeter DSC

Thanks to advanced semiconductor refrigeration, the DSC-200A ensures highly accurate and consistent measurements. Its high-quality sensor offers exceptional sensitivity, while the signal acquisition circuit is equipped with robust shielding to minimize interference and maintain a stable baseline.

This versatile instrument supports a wide range of thermal analyses, including glass transition, phase transitions, melting point determination, enthalpy measurements, product stability testing, curing behavior, specific heat capacity, and oxidation induction period (OIT) assessments.

Differential Scanning Calorimeter DSC-200A Features

  • Industrial-grade 7-inch touchscreen
  • USB communication interface
  • Fast switching speed and short stability time
  • New metal furnace body structure for improved baseline
  • Dual temperature probes for enhanced accuracy
  • Automatic switching between two airflow rates
  • Standard sample support
  • User-programmable functionality

Differential Scanning Calorimeter DSC-200A Technical Specifications

ModelDSC-200A
Range0 ～ ±600mW
Temperature rangeRoom temperature~600 ℃
Heating rate0.1 ～ 100℃/min
Constant temperature timeProgram setting ≤ 24h
Temperature resolution0.01℃
DSC ResolutionZero point zero one μ W
Parameter standardsEquipped with reference materials (indium, tin)
Gas flow rate0-300mL/min
Gas pressure0.2MPa
Atmosphere controlNitrogen, oxygen
Data interfaceUSB standard interface,
Display methodTemperature rise scanning
Atmosphere controlGas mass flow meter
Display method24bit color, 7-inch touch screen
Working power supplyAC220V 50Hz/60Hz (110V also available)
SoftwareCan export Excel data packages and PDF reports
CalibrationInstrument with multi-point calibration function

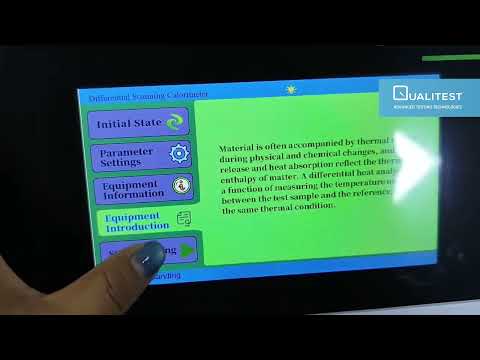

Preview image for the video "Differential Scanning Calorimeter DSC-200A & DSC-600L (Low Temperature) | Qualitest | Worldoftest".
