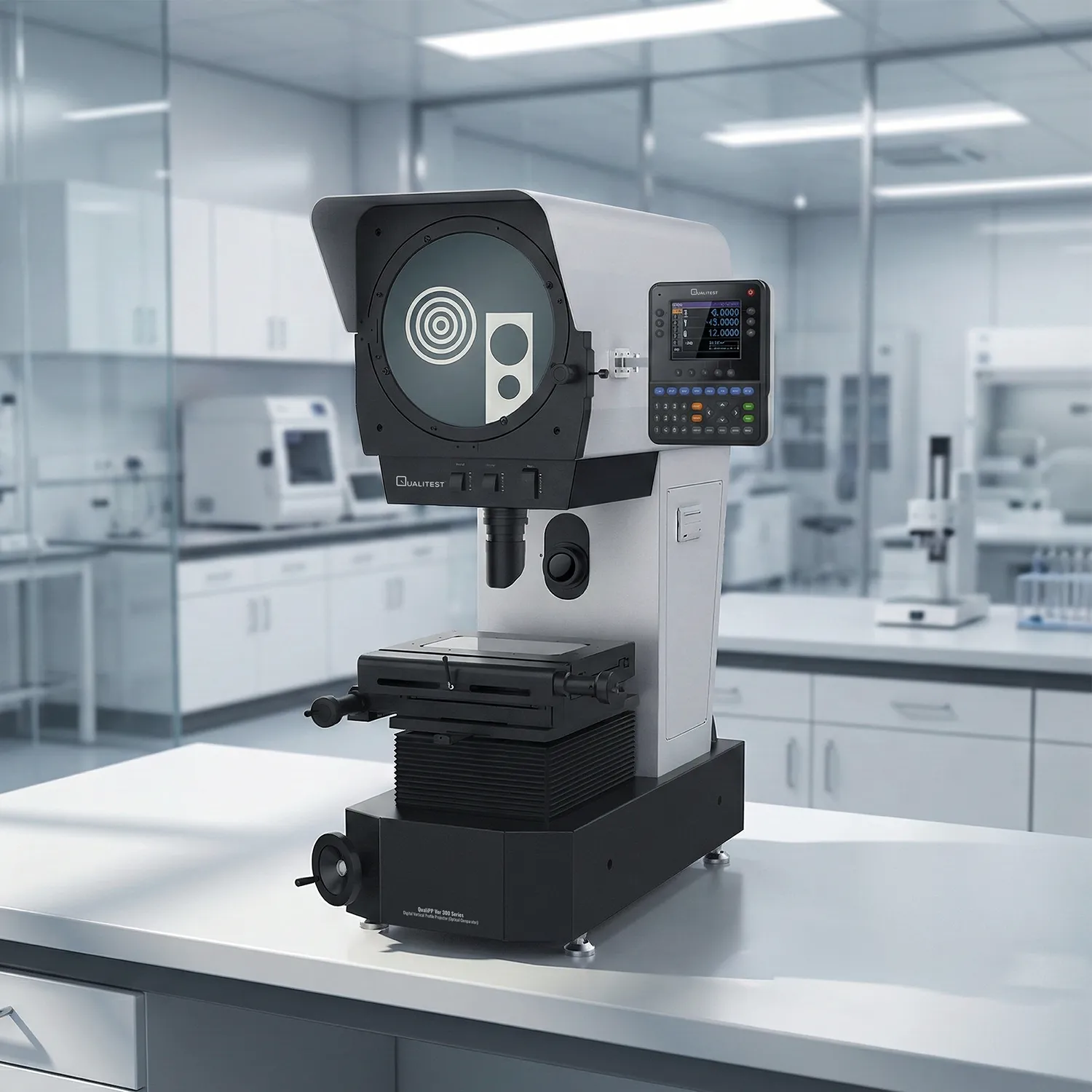

High-precision production operations simply cannot afford even a single millimeter of dimensional error on their assembly lines. That is exactly why the QualiPP™ V300 Series Digital Vertical Profile Projector utilizes an exceptionally precise parallel-light projection method to display a perfectly defined silhouette onto a generously sized 312-millimeter screen.
By replacing fuzzy, indistinct shadow borders with ultra-sharp point coordinates tracked by the QualiDigi™ Readout 400, you secure dead-on accurate measurements down to an incredibly tight 0.0005 millimeters. It is time to replace outdated template overlays with this mathematical optical process to verify your manufactured components with sheer precision.
Telecentric Lens Design: Eliminating Magnification Variances
So, how does the underlying physics keep the projected image from feeding your software completely incorrect data? It all comes down to a highly specialized optical setup known as telecentricity.
With standard glass elements, any workpiece positioned closer to the lens appears noticeably larger than it actually is, which completely throws off your quality assurance procedures. But on the QualiPPT™ V300-30 Series and QualiPPT™ V300-35 Series, the theory operates differently: the beams of light travel in perfectly straight, side-by-side columns.
This means there is absolutely zero annoying perspective distortion or shape-bloating anywhere on the 360-degree rotating screen. Even if your stamped metal components are slightly uneven or not sitting perfectly flat on the stage, the physics dictate that the shadow stays exactly the size it is supposed to be, keeping the overall magnification error securely under 0.08%. It is so close to absolute optical perfection that it will completely win over your entire inspection department.
Operational Advantages of the Vertical Architectural Layout
To put it plainly: projecting light straight up from the bottom relies on a resting-state gravity method that makes sideways-projecting horizontal systems look inherently awkward and frustrating to operate.
With horizontal setups, operators must clamp and secure workpieces onto strange vertical fixtures, which risks bending your fragile materials out of shape. But the operational method of this Digital Vertical Profile Projector is completely different: you simply place your thin rubber gaskets, flexible plastic pieces, or delicate circuit boards flat onto the sturdy glass stage that effortlessly supports a full 10 kilograms of weight.
Gravity actually does the heavy lifting for you! They sit completely relaxed, unstressed, and perfectly still. The bright LED contour and surface lighting shines straight up, making the outline stand out with a crisp, dark contrast that is sheer precision. Plus, a three-axis high-airflow cooling fan keeps the entire internal housing running smoothly without overheating your work environment.
Operational Sequence of the Digital Measurement System
How does this optical comparator actually turn a dark shadow into highly exact measurement digits? The operating methodology is satisfyingly simple, incredibly quick, and completely free of operator bias:

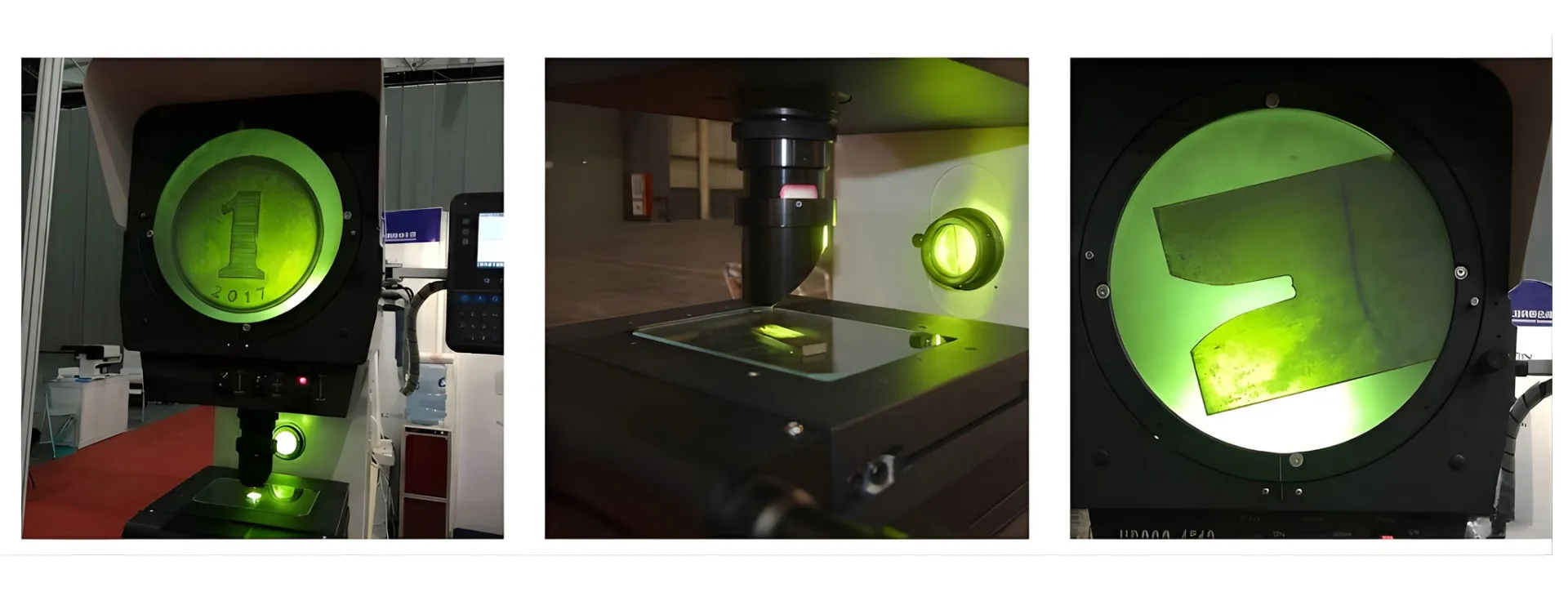

- Cast the Shadow: High-intensity 3.2V / 10W LEDs create a wonderfully defined, high-contrast outline based on strict silhouette projection theory.
- Magnify Without Warping: The standard 10X lens (or the available 20X and 50X optional glass add-ons) enlarges the item using parallel light rays without distorting a single pixel.
- Detect the Edges: Instead of you squinting at a display monitor with a handheld magnifying tool, the highly intelligent sensor within the QualiDigi™ Readout 400 instantly locates the precise boundary lines at a microscopic scale.
- Track the Movement: Dependable cross-roller rails and a tightly machined lead screw calculate the exact coordinate geometry across the generous 150 by 100 millimeter or 200 by 100 millimeter workspace.
- Output the Measurements: The multi-function digital readout screen calculates your diameters, angles, and distances in a fraction of a second, while the built-in mini printer outputs the results for your physical logbooks.
