Dissolution Tester - QualiPharma™ DIS 2014 (Advanced)

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced)
Product Categories
Pharmaceutical Testing Equipment
View PDF

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced)

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced) is a fully automated, high-performance dissolution tester for advanced pharmaceutical labs, research institutes, and regulatory environments. This next-generation apparatus performs highly controlled dissolution tests, measuring how quickly a drug substance dissolves in a liquid medium. Dissolution testing is essential for understanding drug release, bioavailability, and overall product quality.

The Dissolution Tester – QualiPharma™ DIS 2014 (Advanced), with 14 vessels/paddles, automated dosing, precise thermal control, and real-time monitoring, supports high-throughput, FDA 21 CFR Part 11 compliant workflows. It integrates all functions for consistent, repeatable, and audit-ready dissolution tests for tablets and other dosage forms in QC, method development, or stability studies.

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced) Applications

The Dissolution Tester – QualiPharma™ DIS 2014 (Advanced) series is ideal for a full range of dissolution testing applications, including:

  • Routine dissolution test execution in QC, R&D, and stability programs
  • Method development requiring precise control of temperature, paddle speed, and dosing actions
  • High-throughput environments needing multi-cup automated operation
  • FDA-regulated facilities requiring audit-ready data integrity under 21 CFR Part 11
  • Academic and research institutions conducting dissolution characterization and formulation studies

As a core part of modern dissolution testing equipment, the system ensures reliable performance across both regulated and research-driven environments.

Dissolution Tester - QualiPharma™ DIS 2014 (Advanced)

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced) Key Features

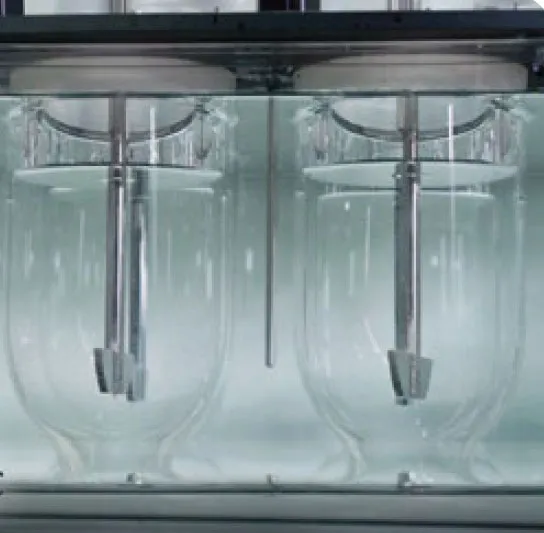

Dissolution Cup System

  • Supports 14 vessels and 14 paddles
  • Quick-swap 1000 mL and 250 mL vessels
  • Optional light-protected brown vessels for photosensitive materials

Automatic Dosing Module

  • Executes sequential or simultaneous dosing
  • Prevents sticking and ensures accurate, synchronized tablet placement across all vessels

Anti-Evaporation Cover

  • V-shaped lid reduces solvent evaporation and improves long-run stability

Injection-Molded Water Bath

  • Rounded, easy-drain design with quick-connect fittings
  • Reduces cleaning time and minimizes contamination buildup

Heating Circulation System

  • Highly stable and uniform temperature control
  • Supports unattended thermostatic operation with minimal vibration

Stainless-Steel Guide Rod

  • Multi-point vertical stabilization ensures mechanical precision over long-term use

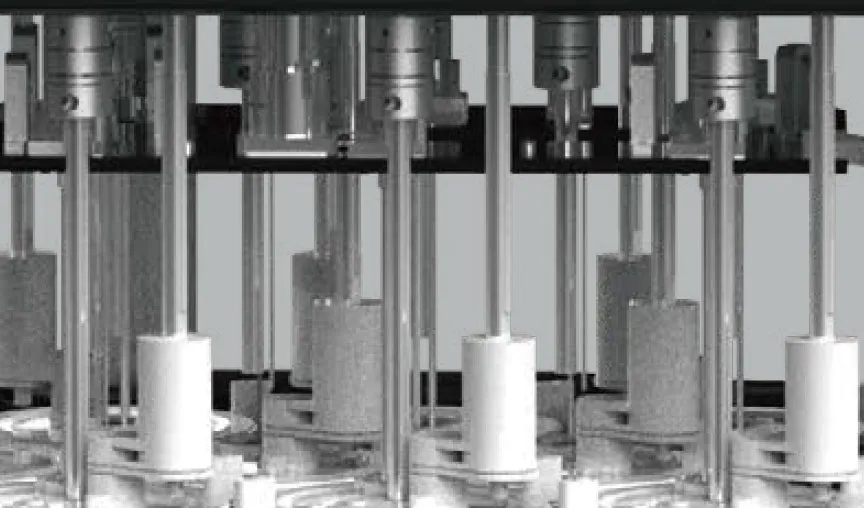

Segmented Paddle Shaft System

  • 316L stainless-steel paddle shafts
  • Allows fast interchange of paddles, baskets, bowls, and low-volume attachments without recalibration

High-Precision Temperature Probe

  • Independent temperature sensors in each vessel
  • ±0.2°C accuracy and 0.1°C resolution for real-time monitoring

Color Touchscreen Interface

  • 10-inch display with intuitive operation
  • Stores up to 100 methods
  • Multilingual support and secure screen lock

Administrative Rights Management

  • Four-level permissions for fully compliant, audit-ready operation

Real-Time Levelling Display

  • Ensures consistent instrument alignment throughout testing

Intelligent Voice Broadcast

  • Provides status updates and real-time operator reminders

One-Click Method Import

  • USB import/export for rapid method transfer between instruments

Photosensitive Lighting

  • Built-in illumination optimized for light-sensitive testing conditions

Certification & Technical Support

  • Includes installation, operator training, qualification assistance, and mechanical verification
Dissolution Tester – QualiPharma™ DIS 2014 (Advanced)

 Stainless-Steel Guide Rod

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced)

 Temperature Probe

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced)

 Heating Circulation System

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced)

 Injection-Molded Water Bath

Dissolution Tester – QualiPharma™ DIS 2014 (Advanced) Technical Specification

ModelQualiPharma™ DIS 2014 (Advanced)
Heating range of water bathRoom temperature - 45°C
Temperature resolution0.1°C
Temperature control accuracy± 0.2°C
Stiring speed range10 - 300 RPM
Speed resolution0.1 RPM
Speed accuracy± 0.5 RPM
Basket shaft swing≤ 0.5 mm
Rotating basket swing range≤ 1.0 mm
Deviation between rotating shaft and dissolving vessel shaft≤ 1.5 mm
Instrument levelness≤ 0.2°
Basket axis vertically90 ± 0.5°
Dissolution vessel vertically90 ± 1°
Working humidity(20-80)% RH
Storage humidity(5-95)% RH
Operation temperature(10 – 30)°C
Storage temperature(− 20 – 60)°C
Input Voltage220 VAC ± 10% 1300w (110V is also available)
Overall weight≈ 65 kg
Dimension≈ 670 × 565 × 640 mm

Instrument Functions

  • Compatible with basket, paddle, small-cup, paddle-butterfly, and tumbler methods
  • 14-cup independent temperature monitoring
  • Segmented shaft system for height-stable method switching
  • Automatic simultaneous or sequential dosing
  • Three-level white/red photosensitive lighting
  • Stores 100+ experimental methods; USB export/import supported
  • Four-level administrative permission system
  • Built-in report recording, audit tracking, and log management
